Vacuum Hose Diagram(S)

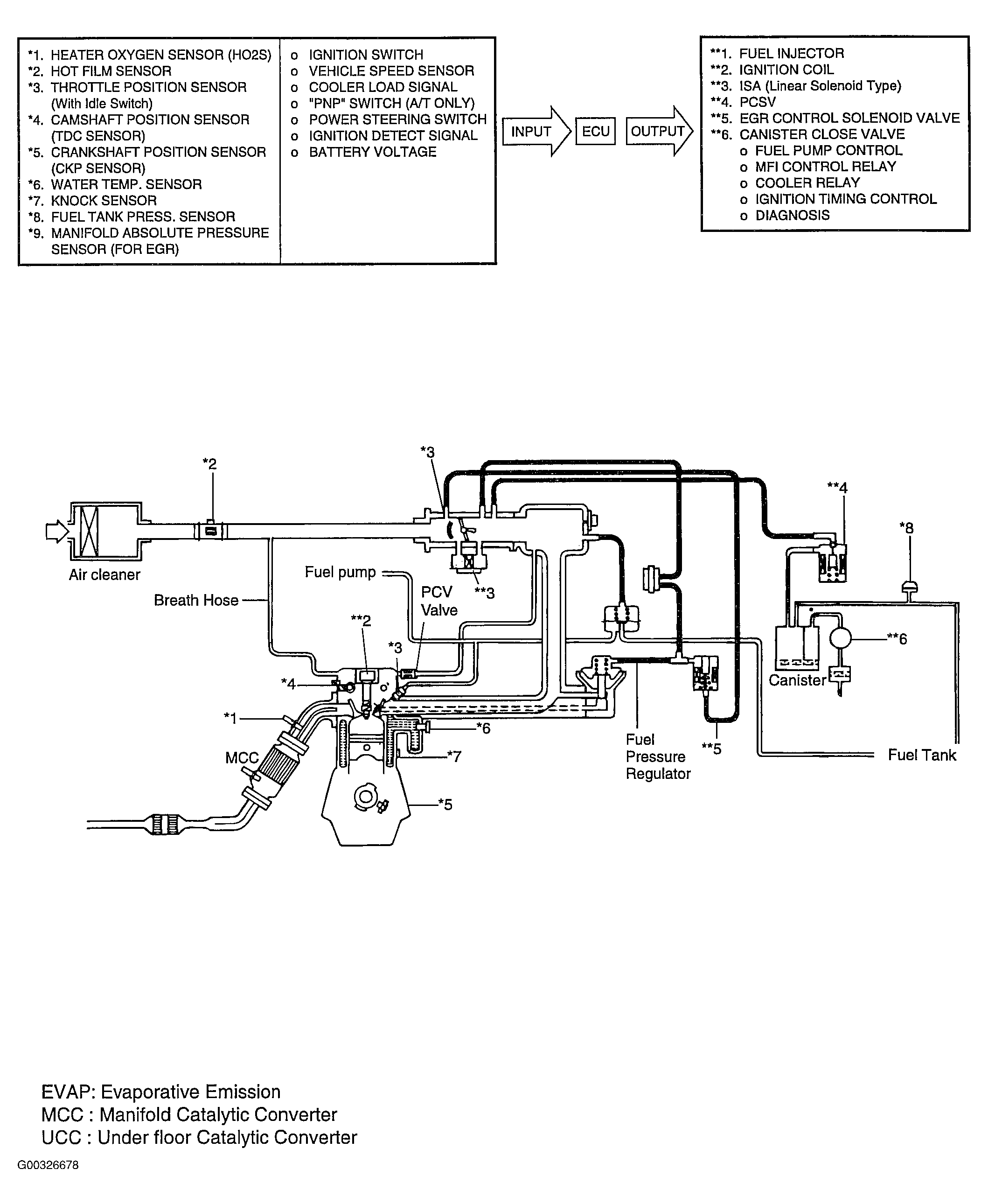

Fig 1: Identifying Vacuum Diagram (2.4L 4-Cylinder)
Courtesy of KIA MOTORS AMERICA, INC.

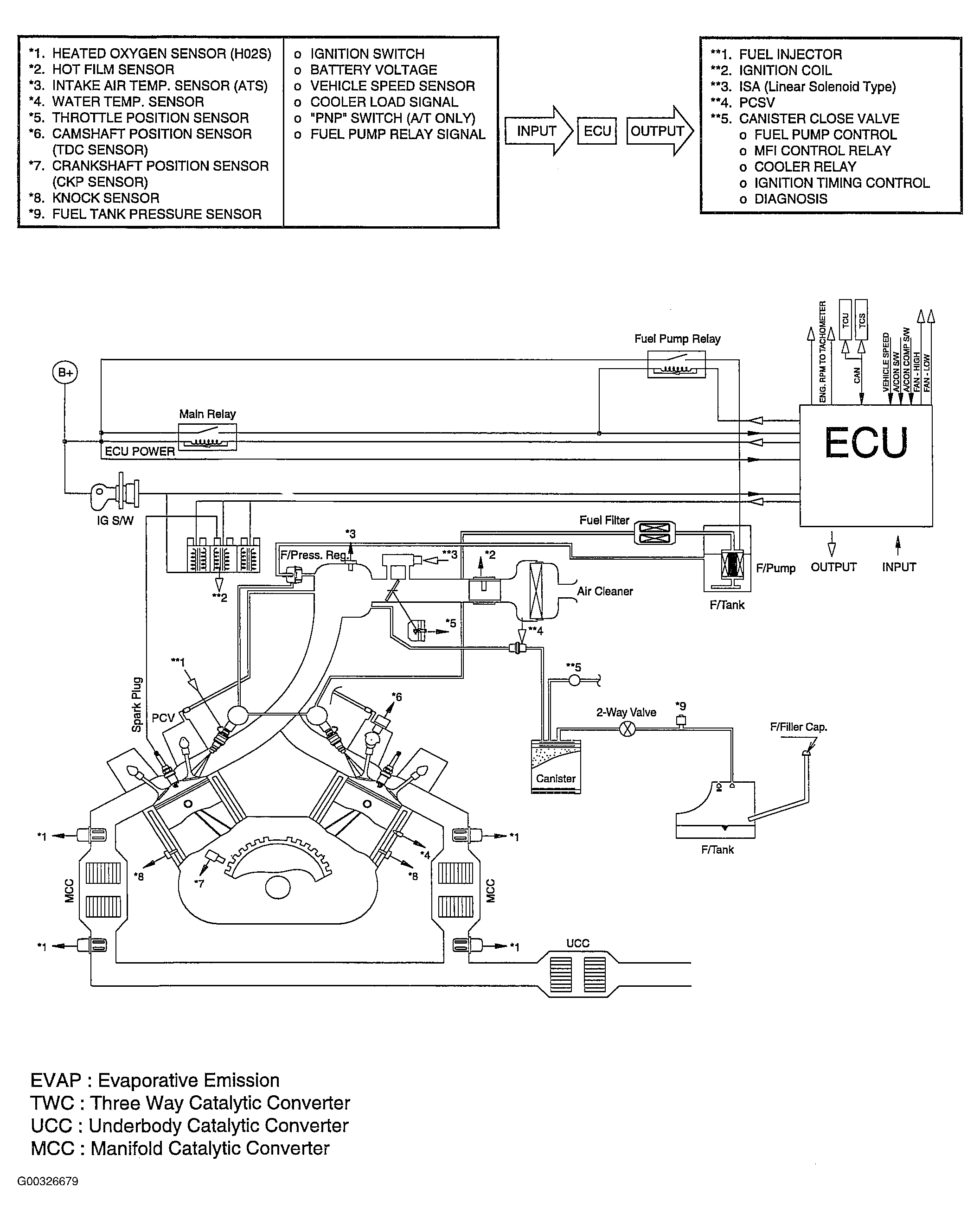

Fig 2: Identifying Vacuum Diagram (2.7L V6)
Courtesy of KIA MOTORS AMERICA, INC.
