Counter Balance Shaft: Components

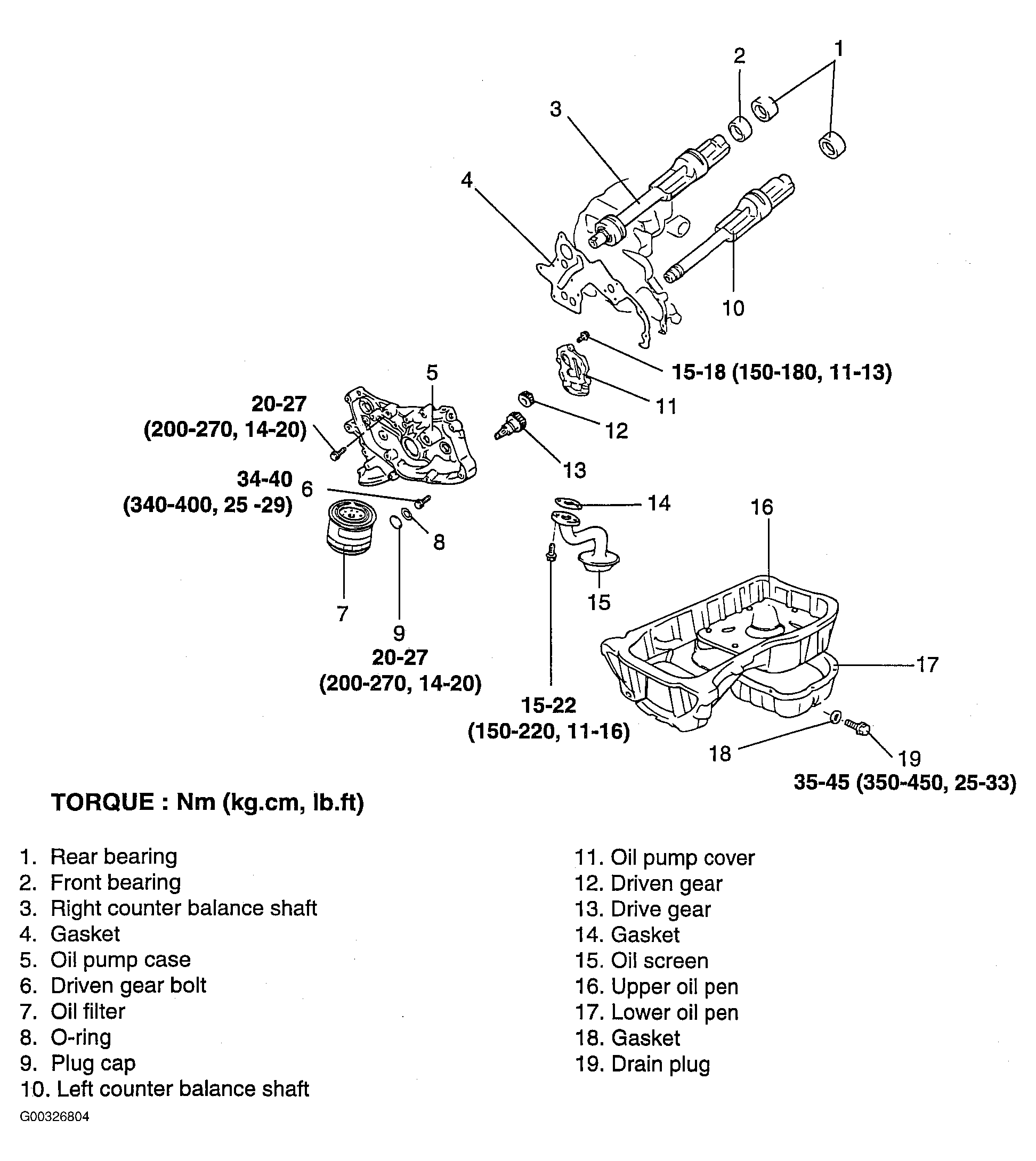

Fig 1: Exploded View Of Counter Balance Shaft

G00326804

Courtesy of KIA MOTORS AMERICA, INC.
