Throttle Position Sensor Check

  1. Disconnect the throttle position sensor connector.

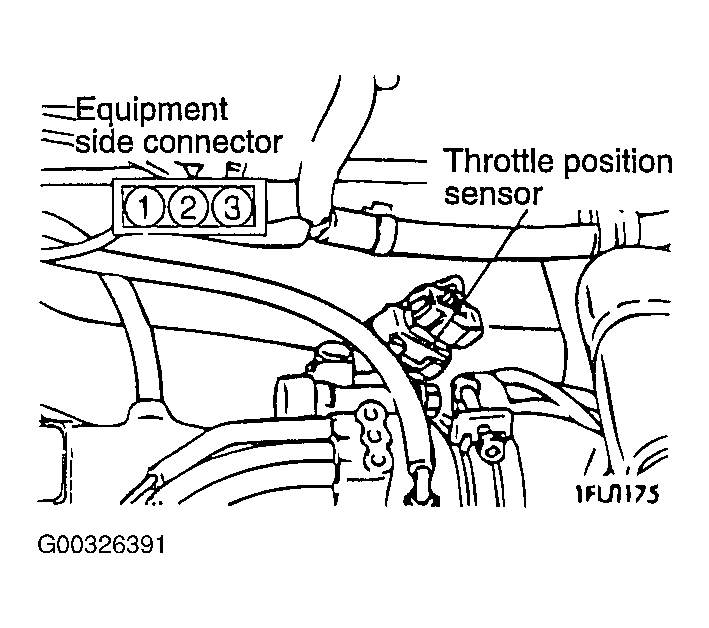

    Fig 1: Locating Throttle Position Sensor Connector
    G00326391Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure the resistance between the throttle position sensor side connector terminal 2 and terminal 3.

    Standard value : 1.6-2.4 kW

  3. Measure the resistance between the throttle position sensor side connector terminal 1 and terminal 3.

    Normal condition:

    Fig 2: Identifying Throttle Position Sensor Normal Condition
    G00326392Courtesy of KIA MOTORS AMERICA, INC.
  4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.
