Timing Belt: Removal

Remove the engine cover.

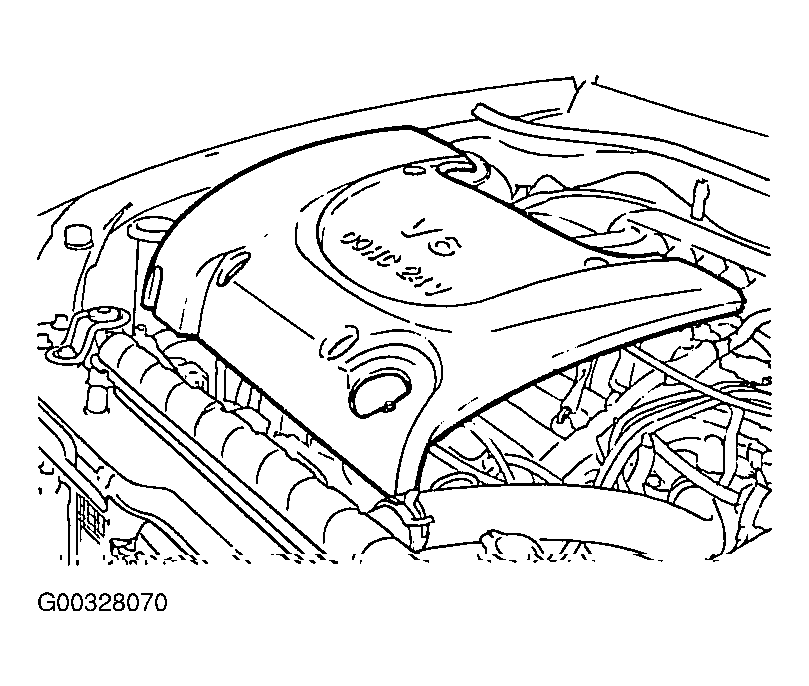

Fig 1: Removing Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.
Using the spanner [16 mm], rotate the tensioner arm clockwise (about 14°) and remove the belt from pulley.

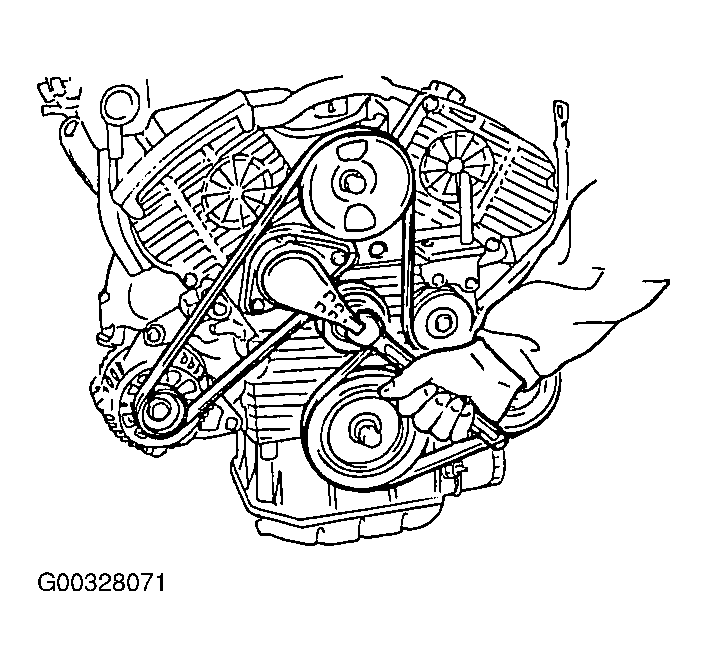

Fig 2: Removing Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the coolant pump pulley, idler pulley, tensioner pulley and crankshaft pulley.
Remove the upper and lower timing belt covers.

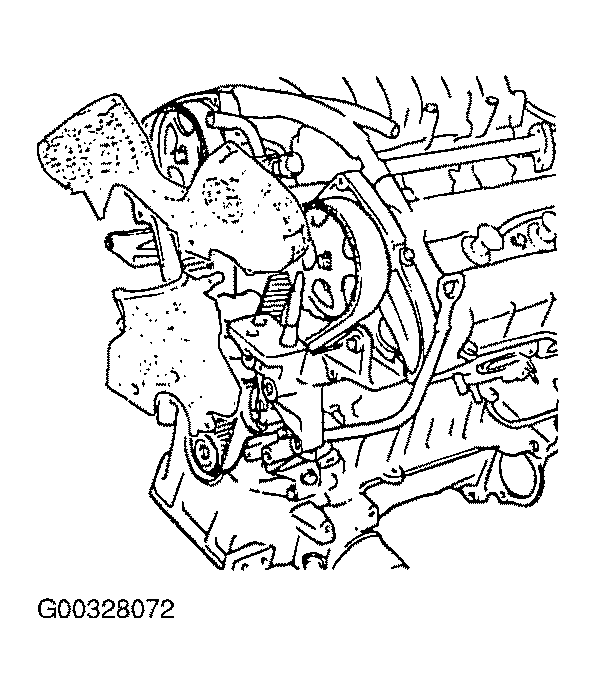

Fig 3: Removing Upper & Lower Timing Belt Covers
Courtesy of KIA MOTORS AMERICA, INC.
Support the engine with garage jack or wooden block and remove the engine mounting insulator.
Remove the engine mount bracket from the engine.

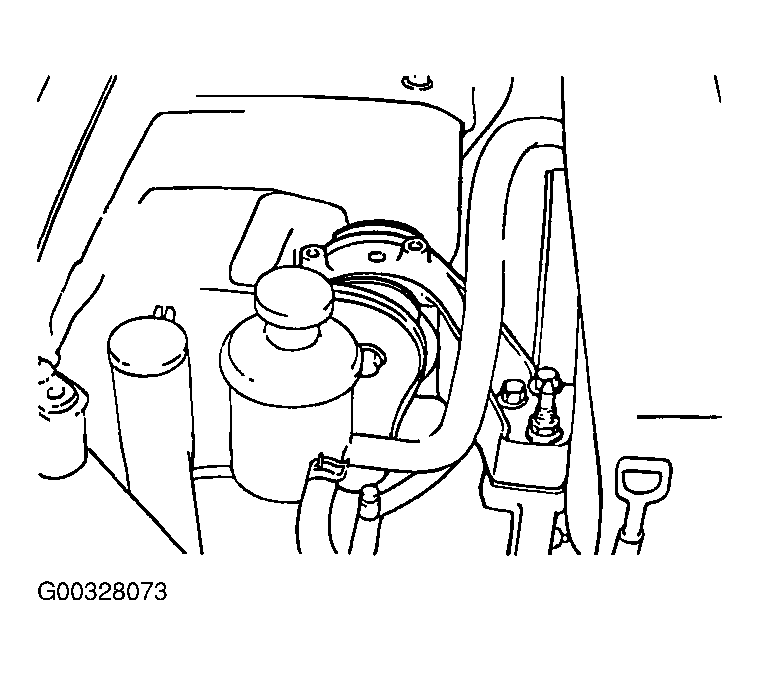

Fig 4: Removing Engine Mount Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the auto tensioner.
NOTE: Rotate the crankshaft clockwise and align the timing mark to get the No. 1 cylinder's piston to be in TDC position (compression stroke). At this time, the timing mark of camshaft sprocket and cylinder head cover should coincide each other.

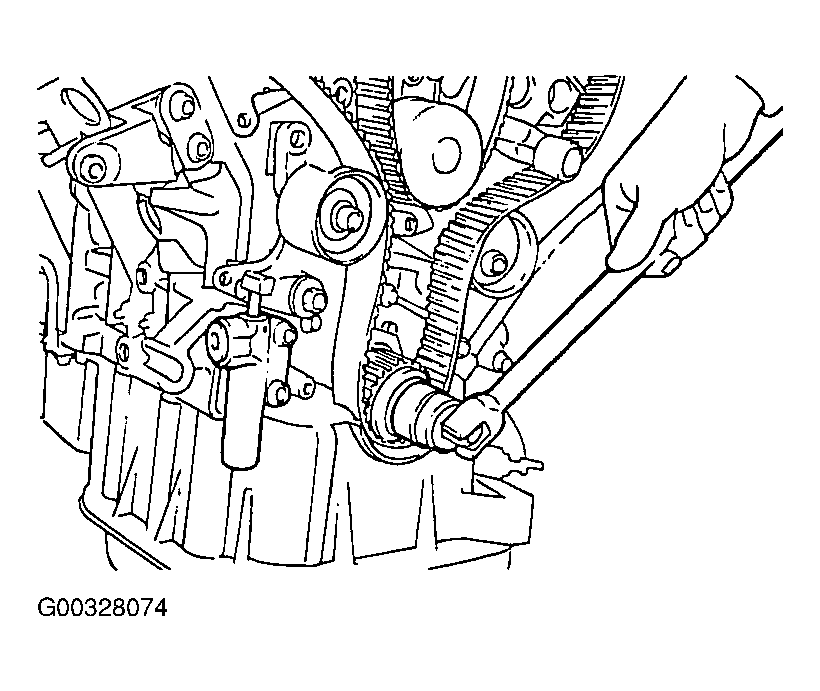

Fig 5: Removing Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing belt.
NOTE: When using the timing belt again, make sure of marking the rotating direction on the belt so as to install correctly.

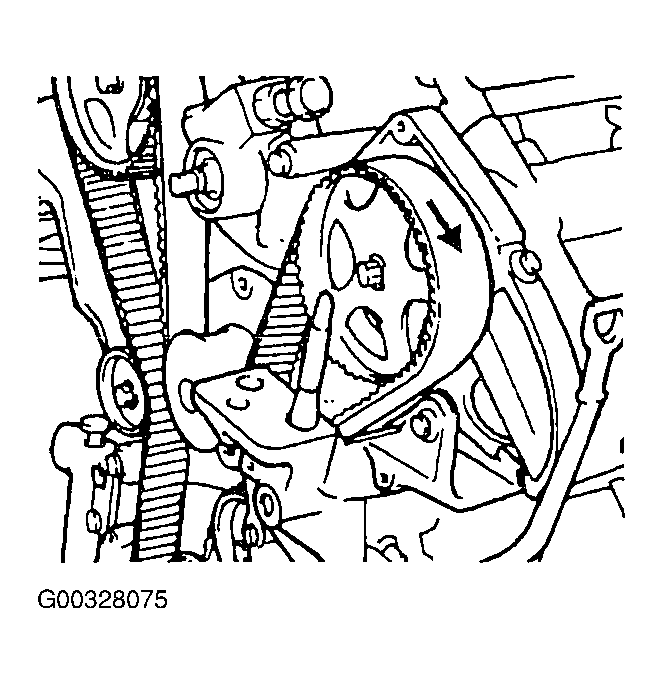

Fig 6: Identifying Timing Belt Rotating Direction

Courtesy of KIA MOTORS AMERICA, INC.
