Air Conditioning Compressor: Notes

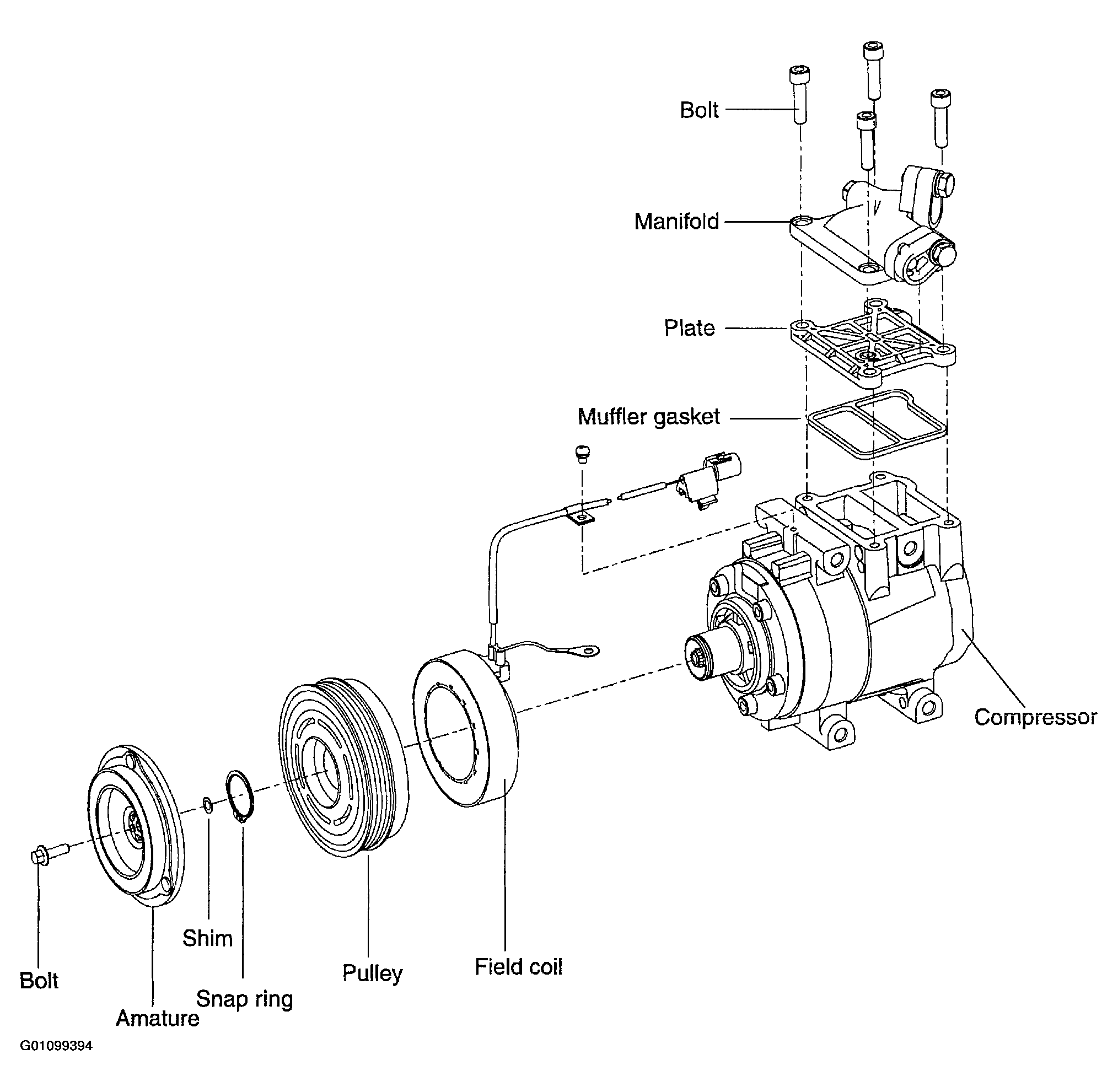

Fig 1: Illustrating Compressor Components

G01099394

Courtesy of KIA MOTORS AMERICA, INC.
