SECONDARY 3rd GEAR AND SECONDARY 2nd GEAR

  1. Remove retaining ring.
  2. Shift gears to 1st gear.
  3. Remove secondary 3rd gear and secondary 2nd gear by using SST (OK201 172 008).

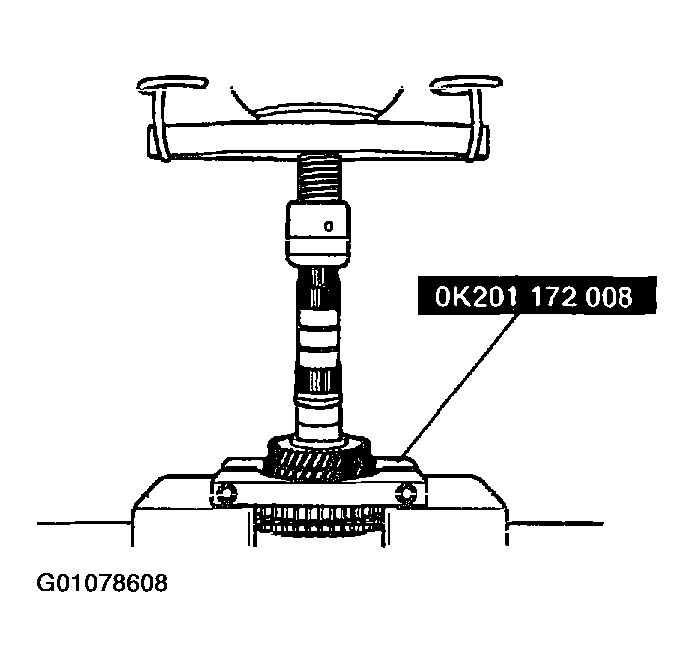

    Fig 1: Removing Secondary 3rd Gear And Secondary 2nd Gear
    G01078608Courtesy of KIA MOTORS AMERICA, INC.
