Front Drive Shaft: Component

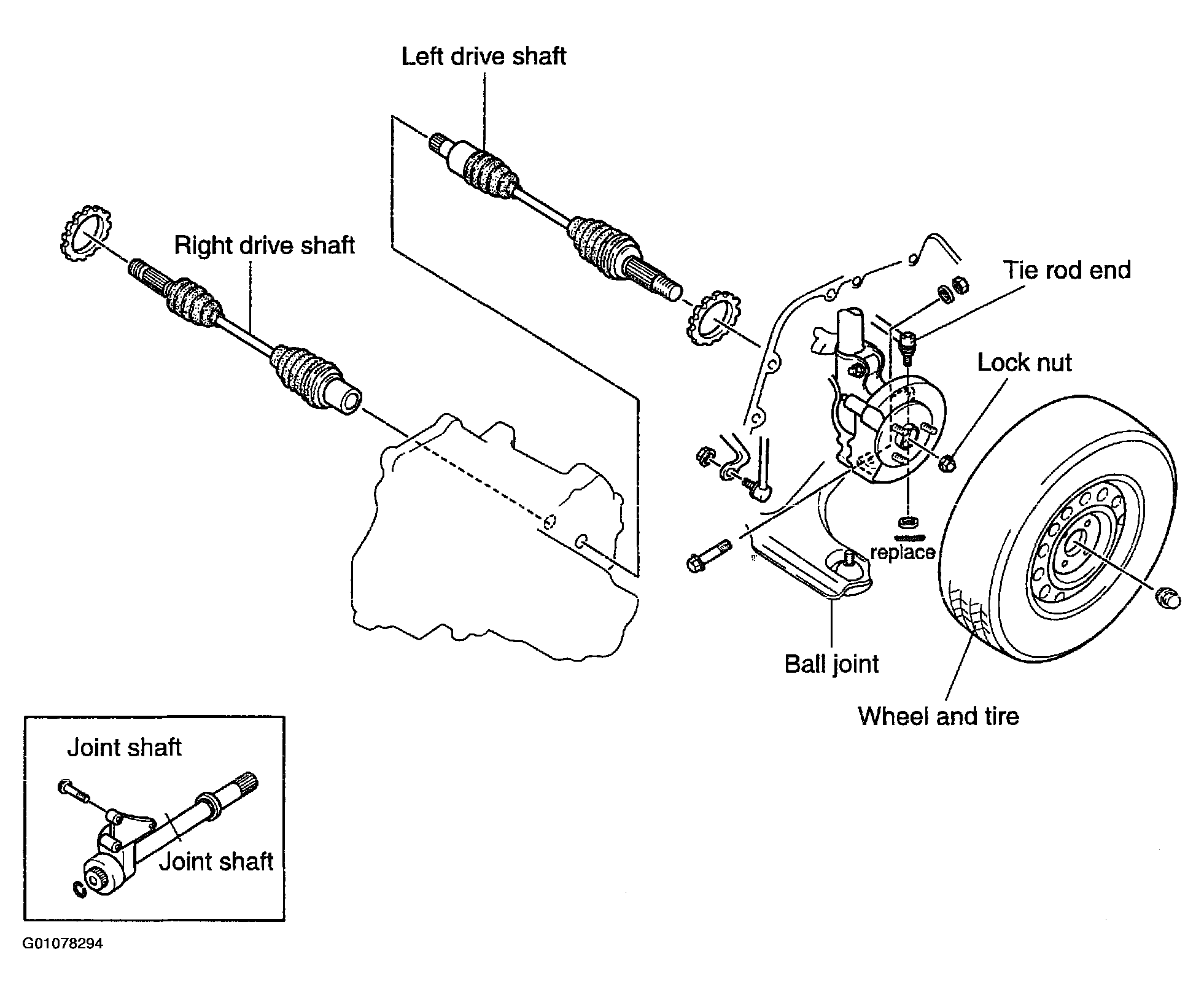

Fig 1: Illustrating Front Drive Shaft Components

G01078294

Courtesy of KIA MOTORS AMERICA, INC.
