Emission Controls Location

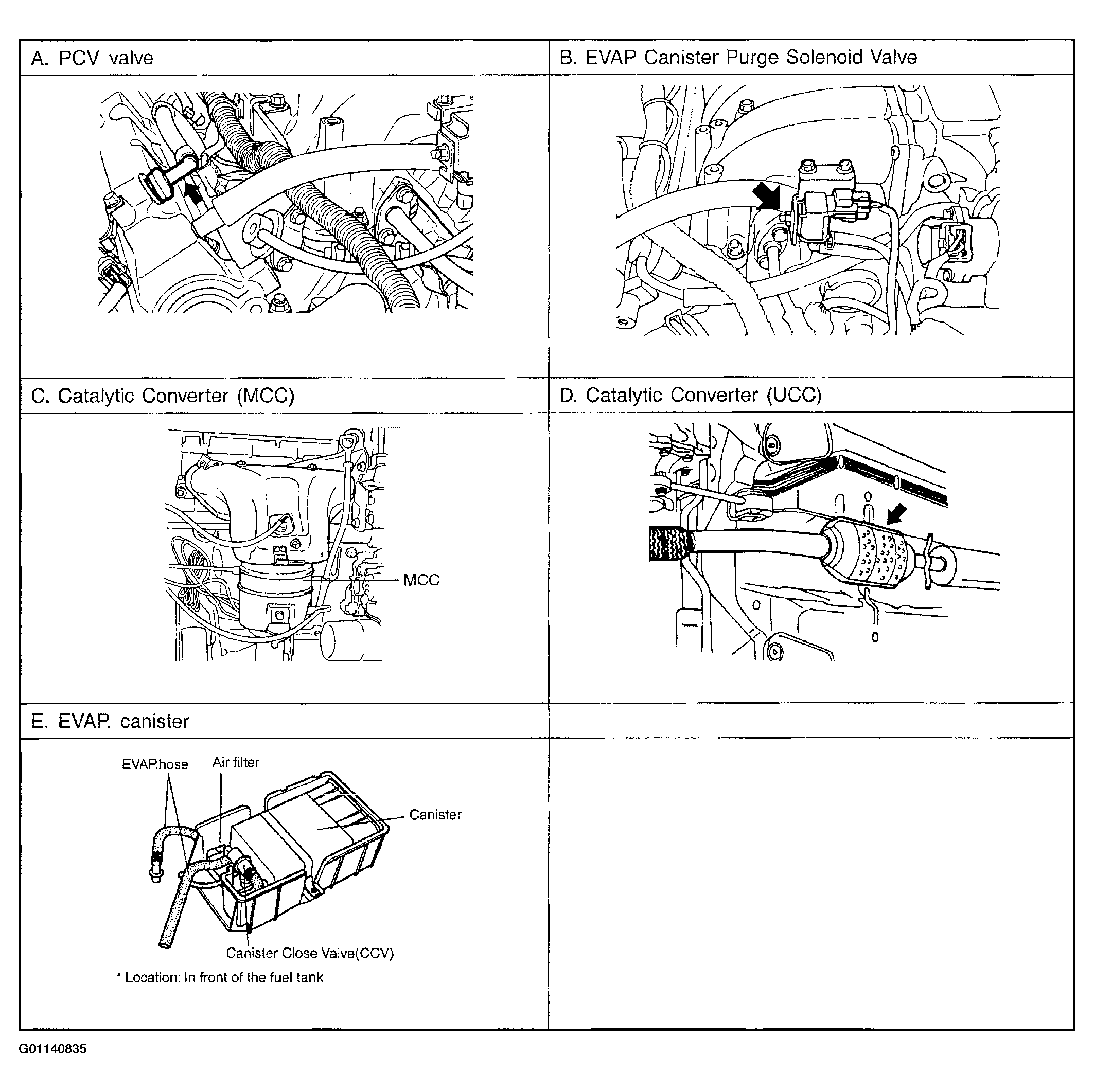

Fig 1: Illustrating Emission Controls Locations (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

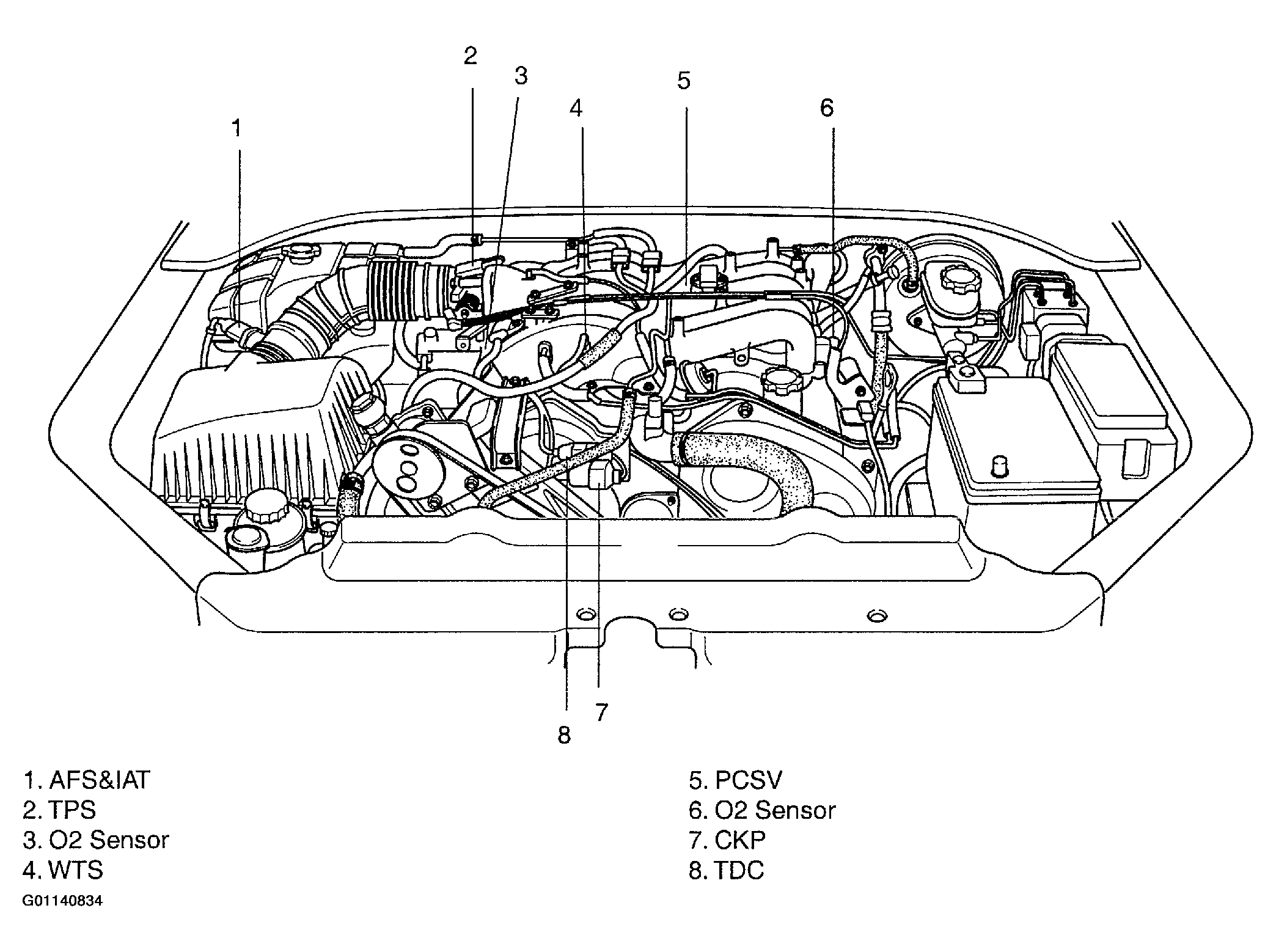

Fig 2: Illustrating Emission Controls Locations (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
