3.5L V6 Engine: General: Troubleshooting

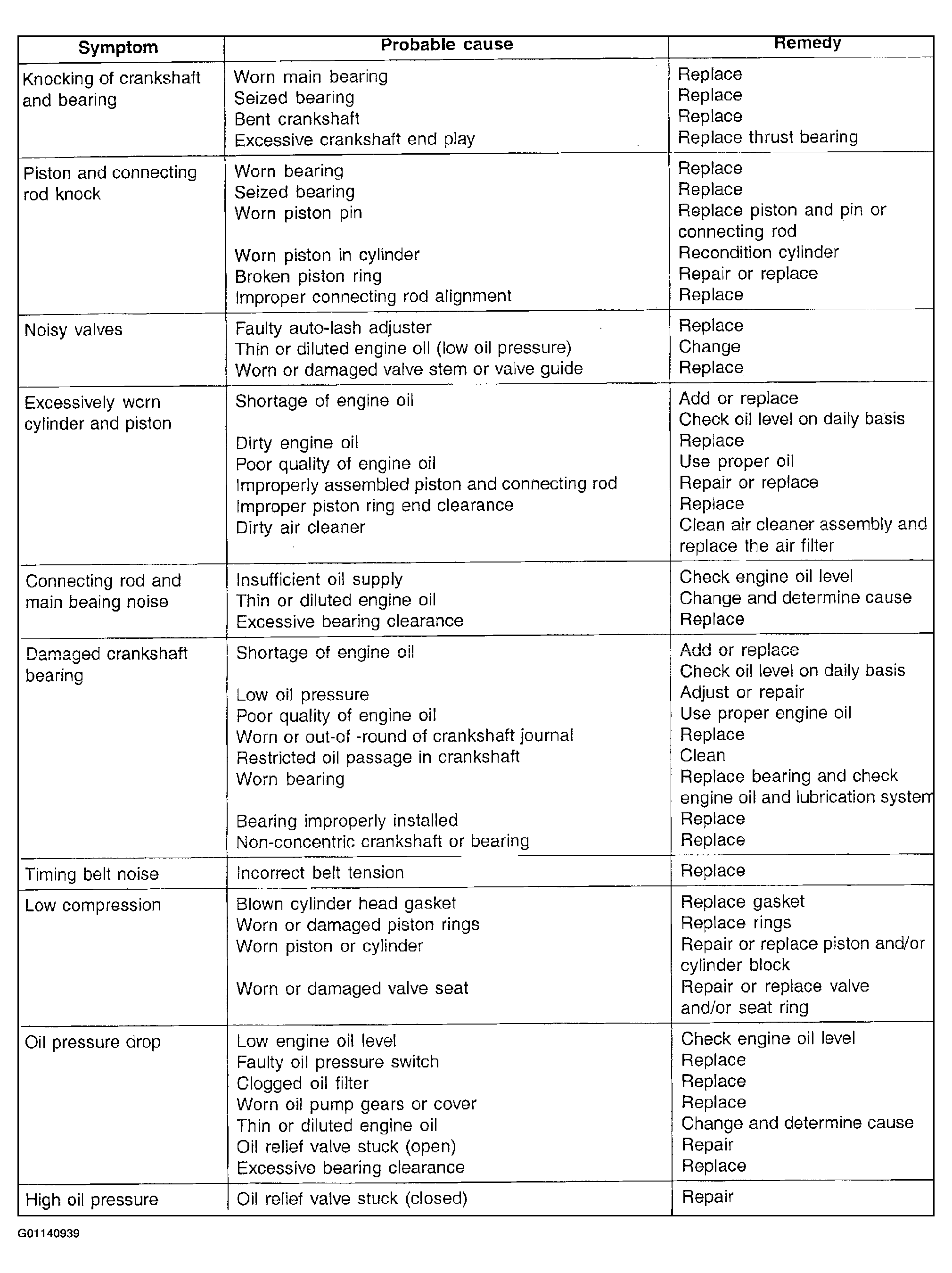

Fig 1: Troubleshooting Chart (1 Of 2)
G01140939Courtesy of KIA MOTORS AMERICA, INC.

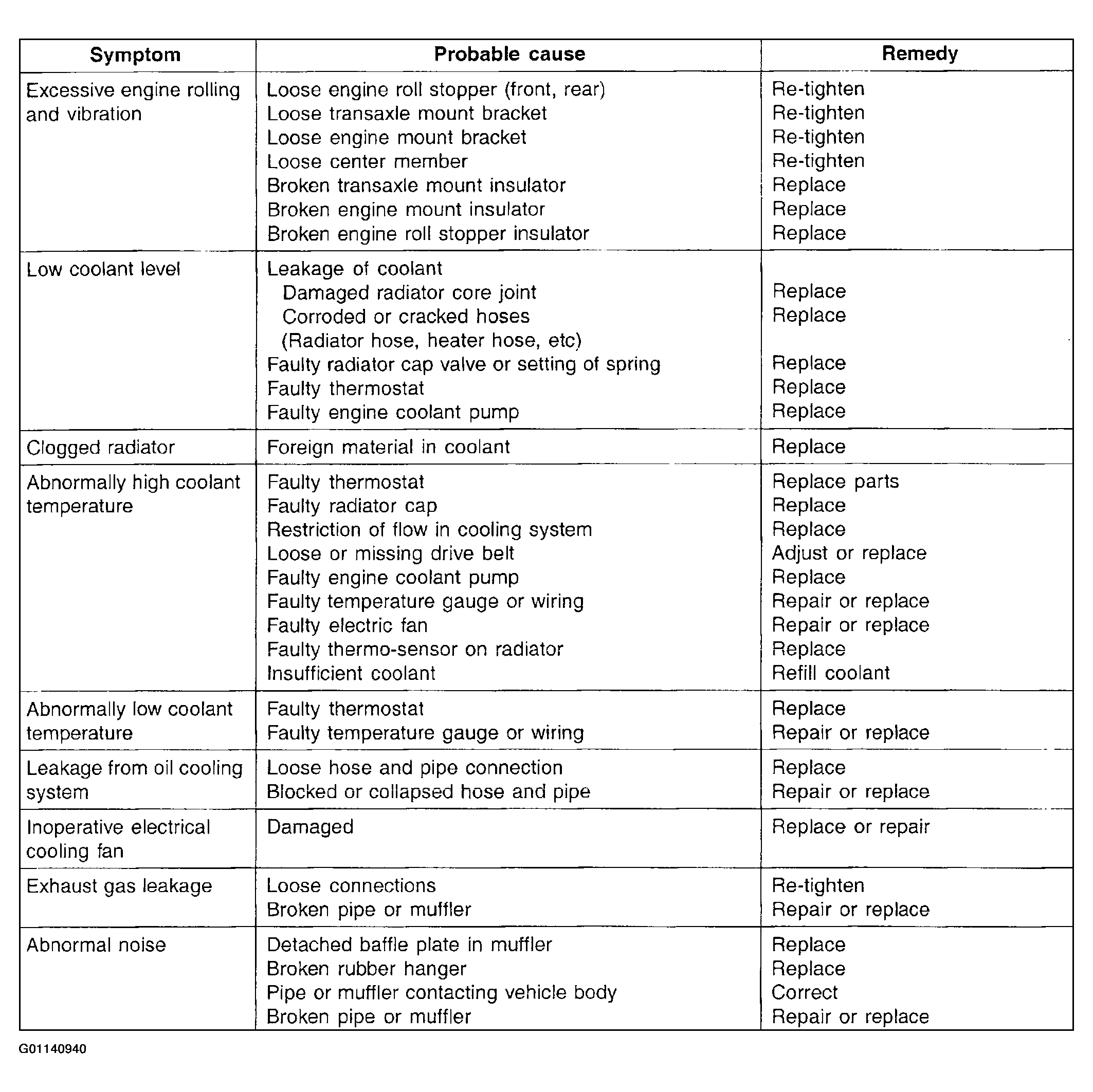

Fig 2: Troubleshooting Chart (2 Of 2)
G01140940Courtesy of KIA MOTORS AMERICA, INC.
