Cruise Control Module: Testing

Connect a voltmeter between cruise control unit terminals and ground. (Connector Q01 connected.)
Turn ignition switch "ON" and check that terminal voltages are as described on the following page.

Fig 1: Cruise Control Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

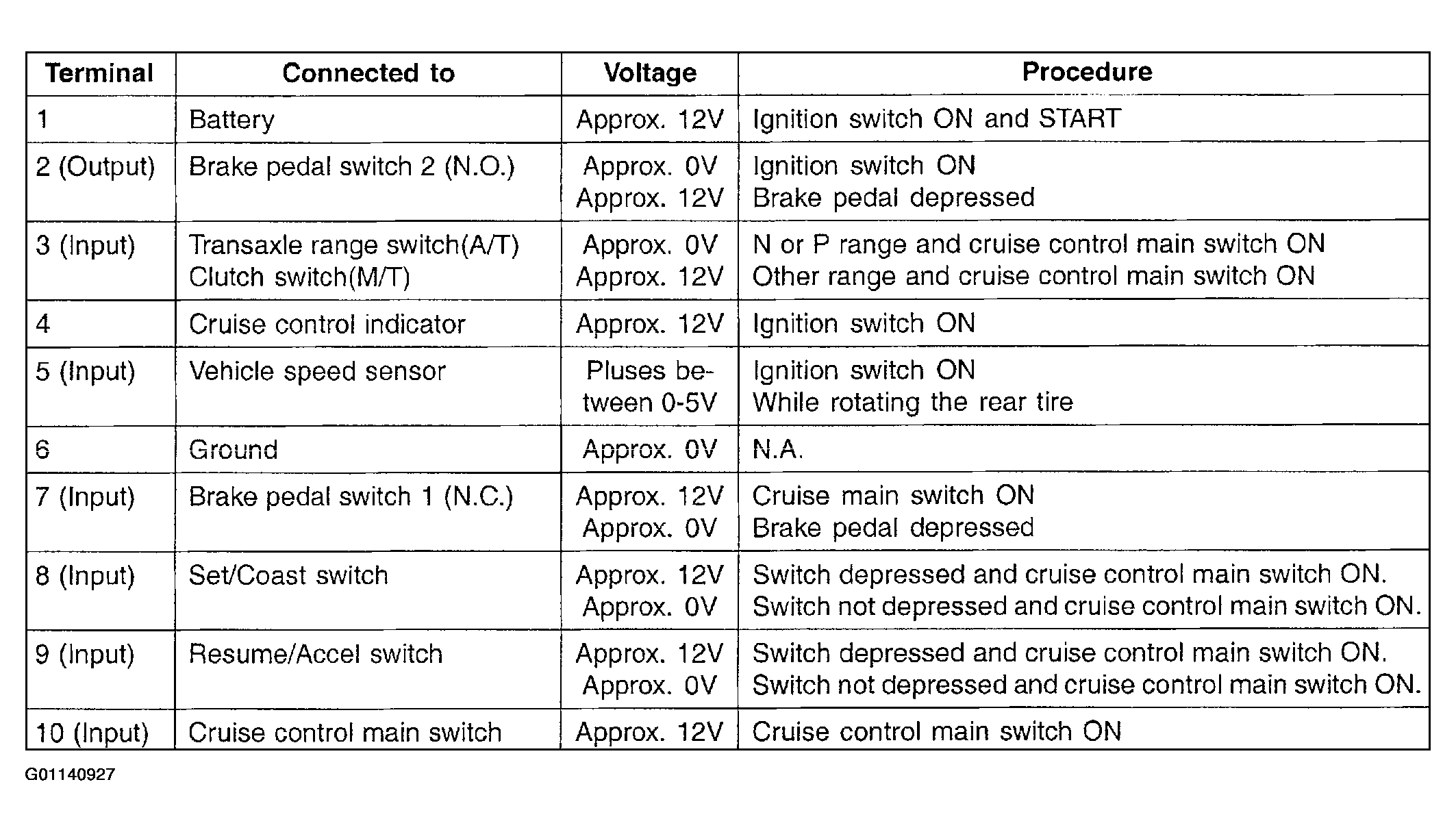

Fig 2: Terminal Testing Chart
Courtesy of KIA MOTORS AMERICA, INC.
