Fundamental Procedures: Symbols

NOTE: Whenever special oil or grease is required, it will be identified in figure.

There are six primary symbols used to complement illustrations. These symbols indicate the areas to apply such materials during service.

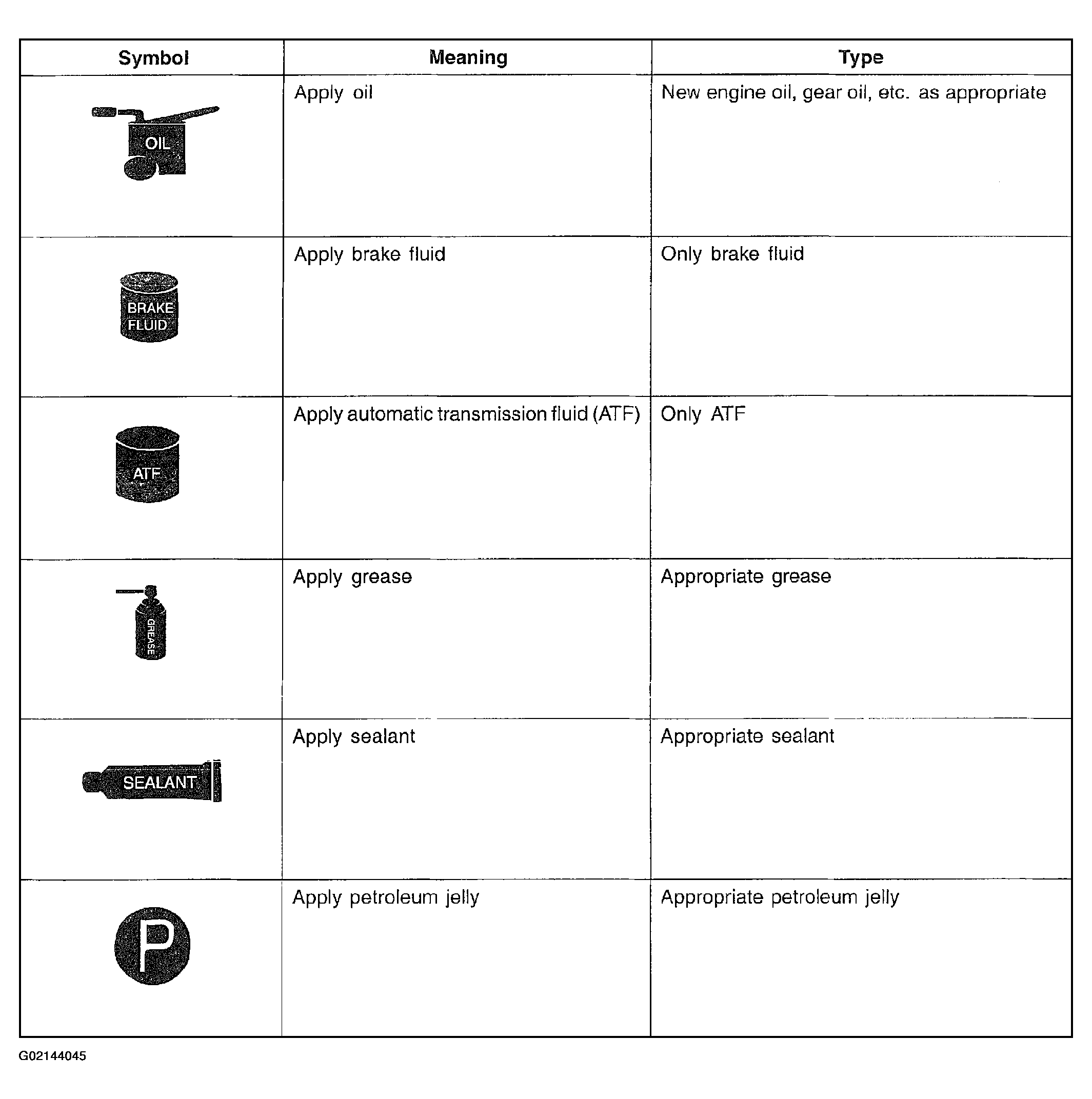

Fig 1: Identifying Primary Symbols Used In Illustrations

Courtesy of KIA MOTORS AMERICA, INC.
