Removal And Installation

Disconnect the negative battery terminal.
Open the glove box and remove the release checker to open fully.

Fig 1: Removing The Glove Box Release Checker
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw of the center console.

Fig 2: Loosening The Screw Of The Center Console
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ash tray and loosen the screw to remove the center facia.

Fig 3: Removing The Ash Tray And Loosening The Screw To Remove The Center Facia
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw of the panel and the center console.

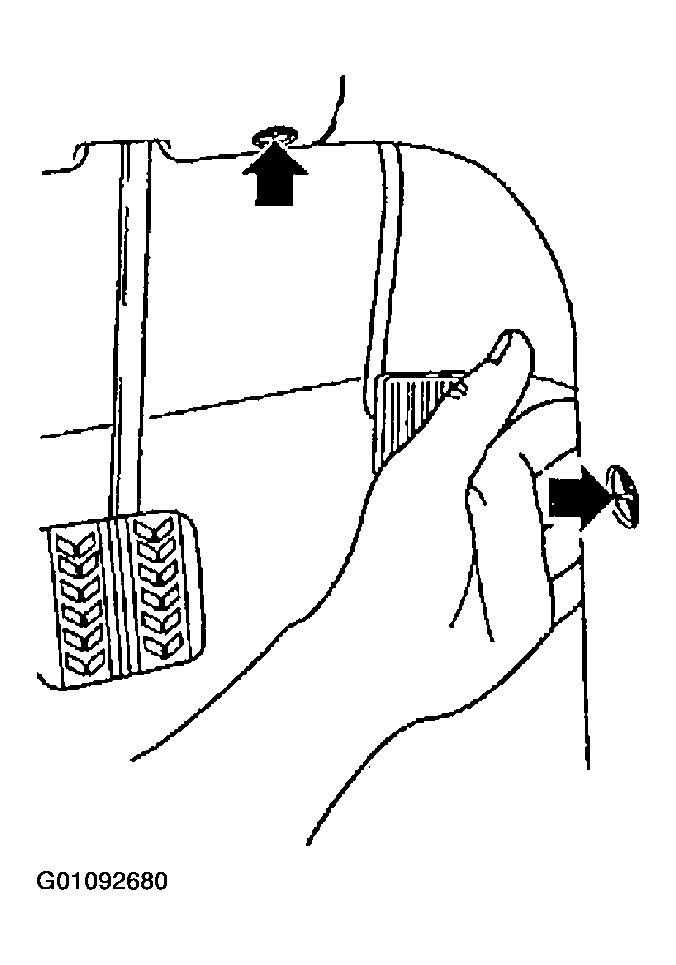

Fig 4: Loosening The Screw Of The Panel And The Center Console
Courtesy of KIA MOTORS AMERICA, INC.
Pull the panel to loosen the screw of the center console.

Fig 5: Pulling The Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center console.

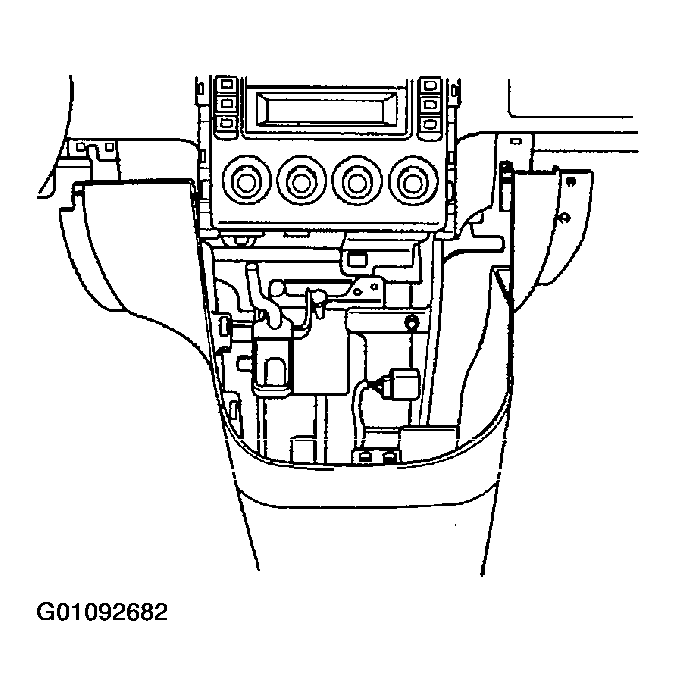

Fig 6: Removing The Center Console
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolts of the in panel member bracket.

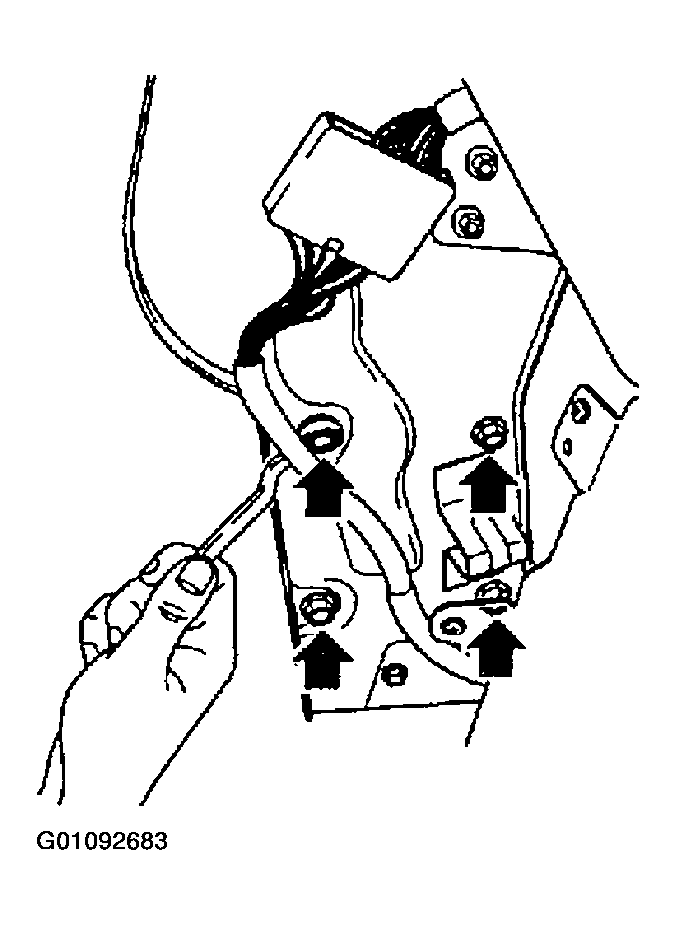

Fig 7: Loosening The Bolts Of The In Panel Member Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector.

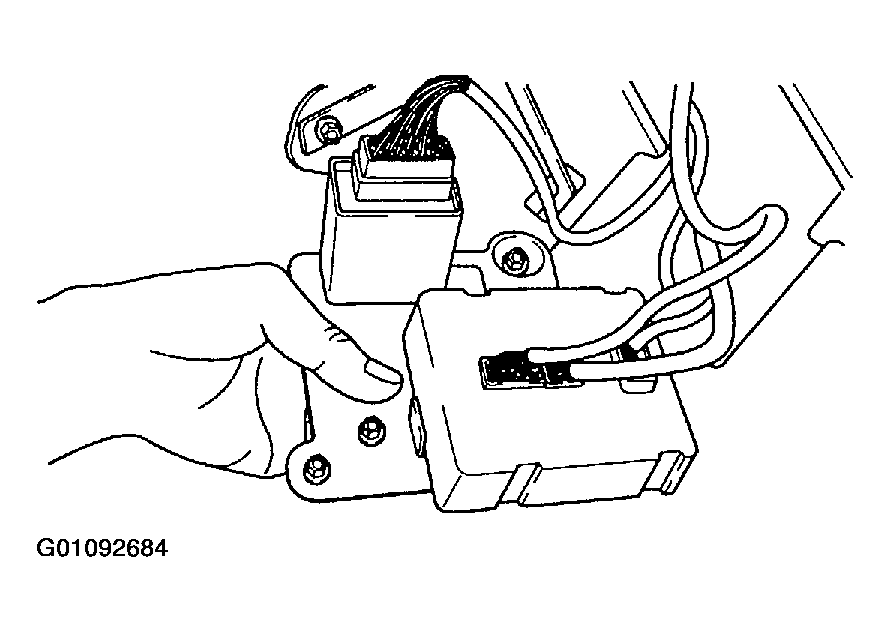

Fig 8: Disconnecting The Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
