Input (Primary) Shaft: Notes

NOTE:
  1. Measure thrust clearance of all gears before disassembly, see PREINSPECTION  .
  2. Disassemble in order shown in figure.
  3. Assembly will be in reverse order of disassembly.
    CAUTION: Check thrust clearance of all gears before disassembly and after assembly.

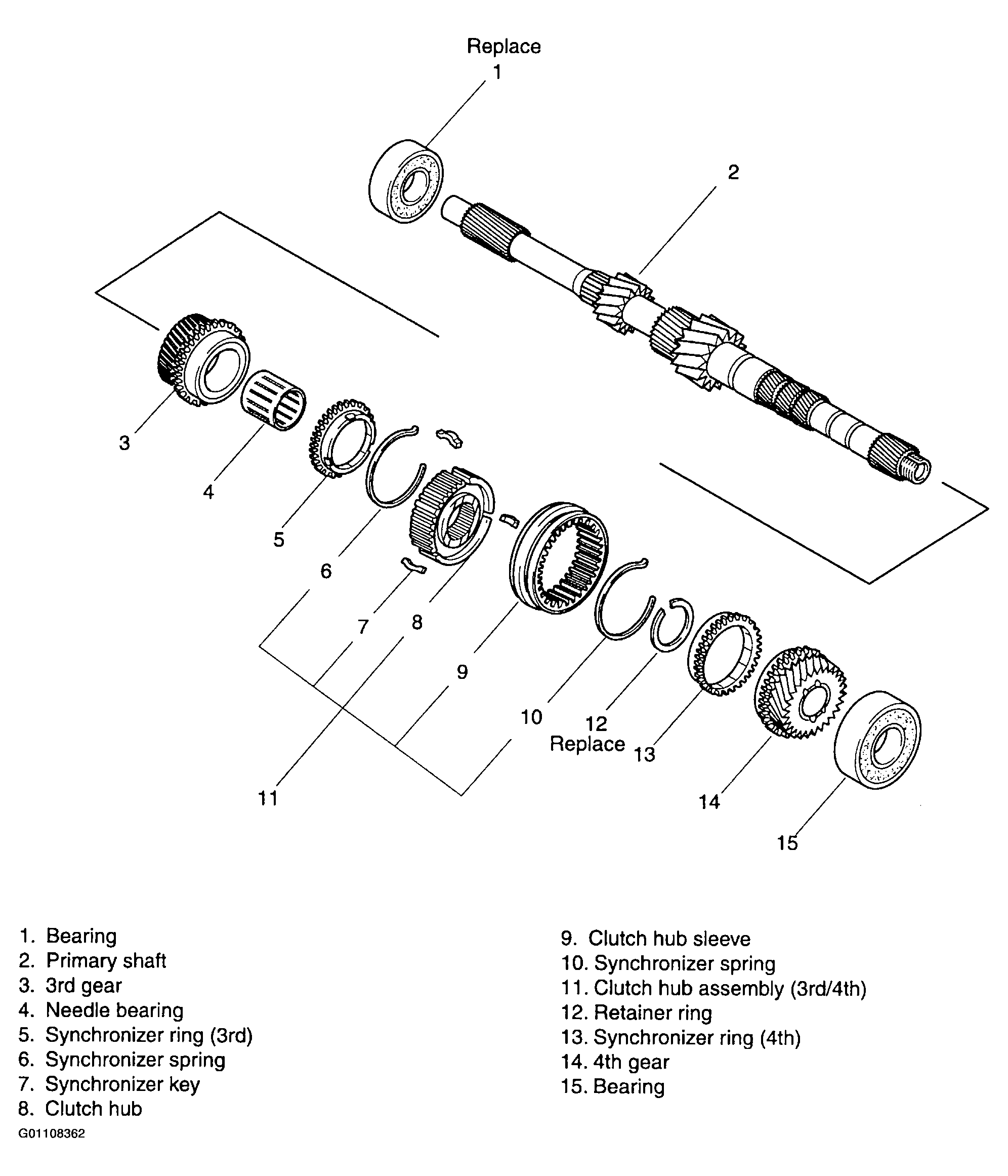

    Fig 1: Exploded View Of Primary Shaft Assembly
    G01108362Courtesy of KIA MOTORS AMERICA, INC.
