Power Steering Oil Pump: Components

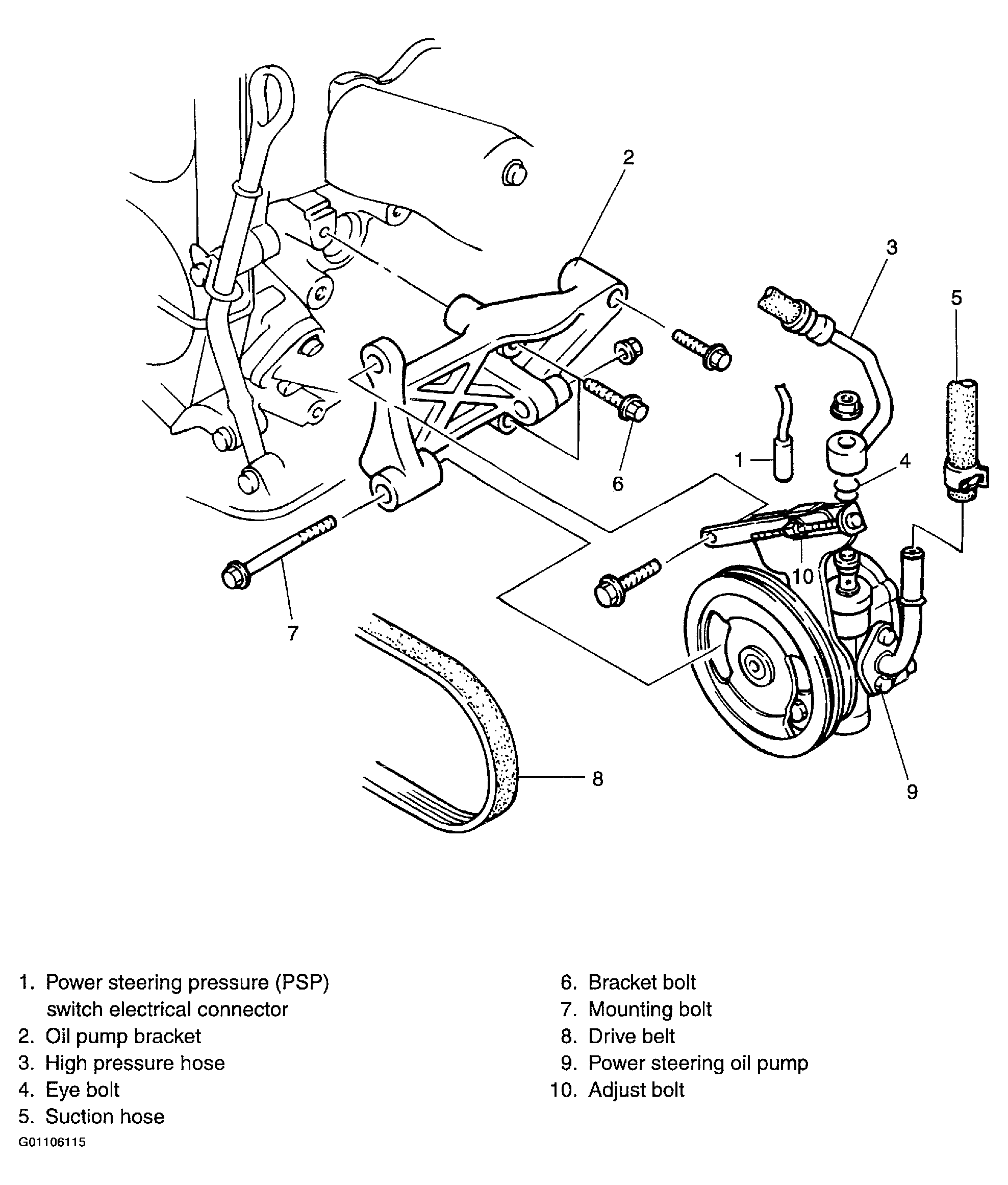

Fig 1: Identifying Power Steering Oil Pump Components
G01106115Courtesy of KIA MOTORS AMERICA, INC.
