Diagnostic Trouble Code Descriptions

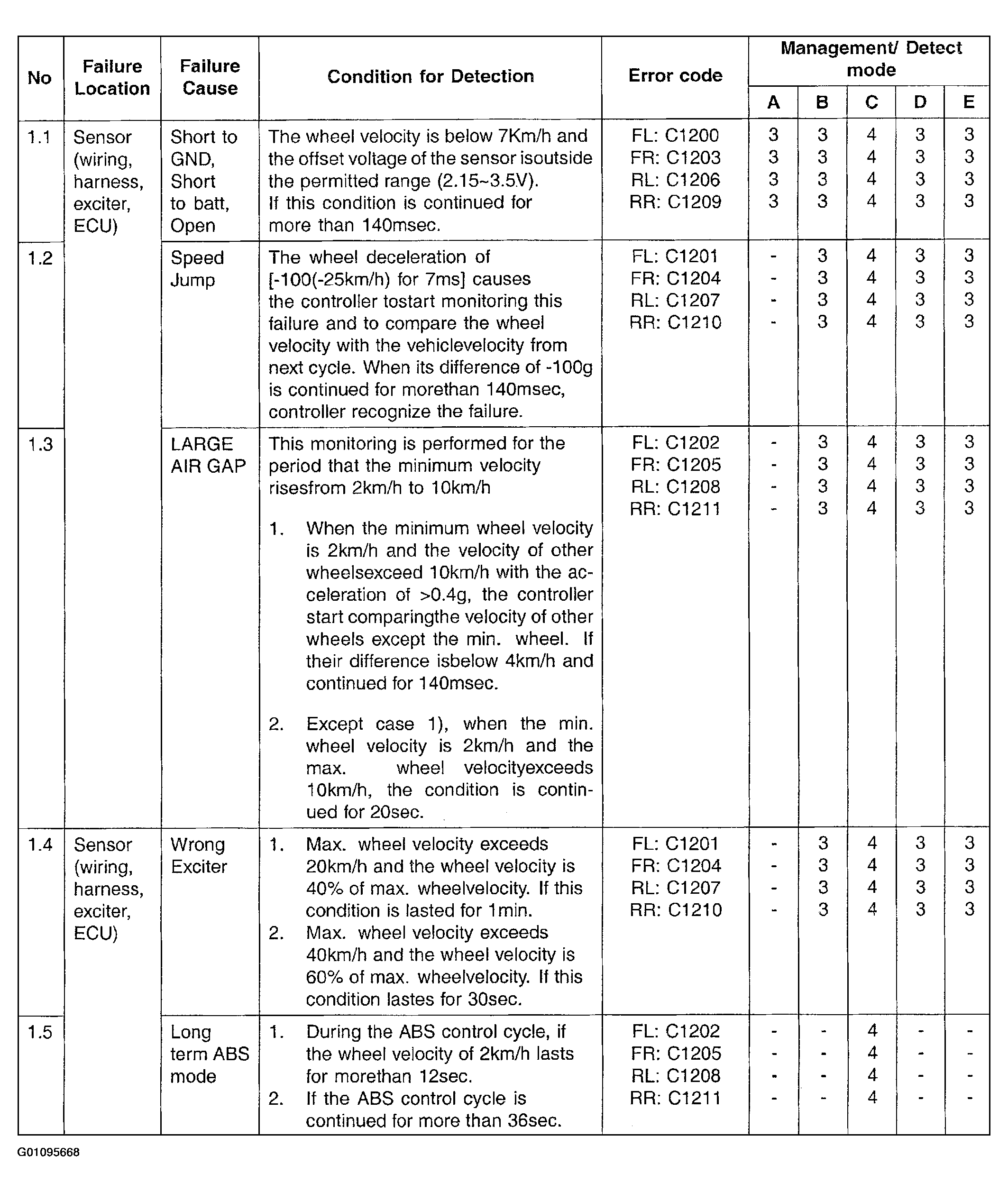

Fig 1: Diagnostic Trouble Code Descriptions (1 Of 3)
G01095668Courtesy of KIA MOTORS AMERICA, INC.

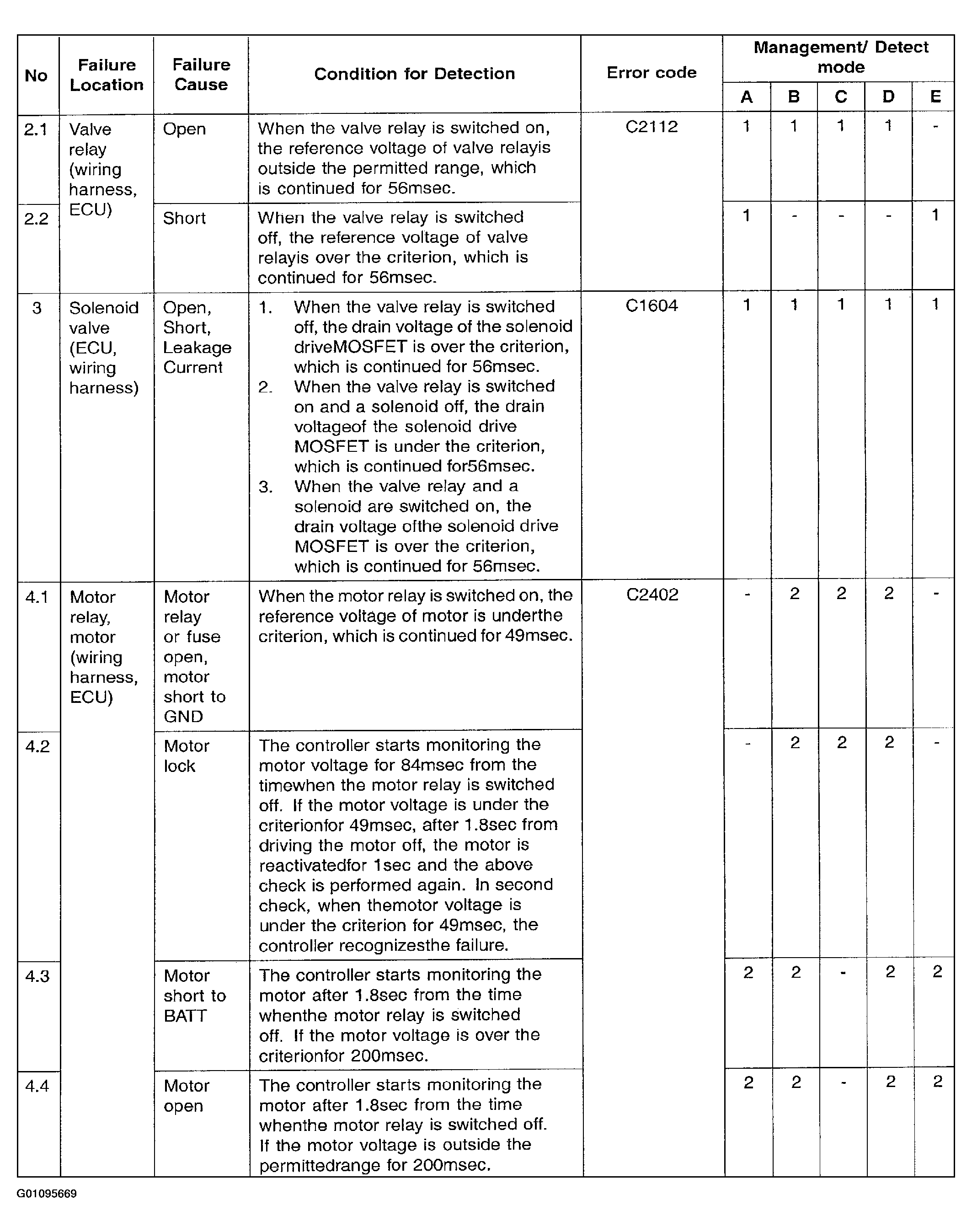

Fig 2: Diagnostic Trouble Code Descriptions (2 Of 3)
G01095669Courtesy of KIA MOTORS AMERICA, INC.

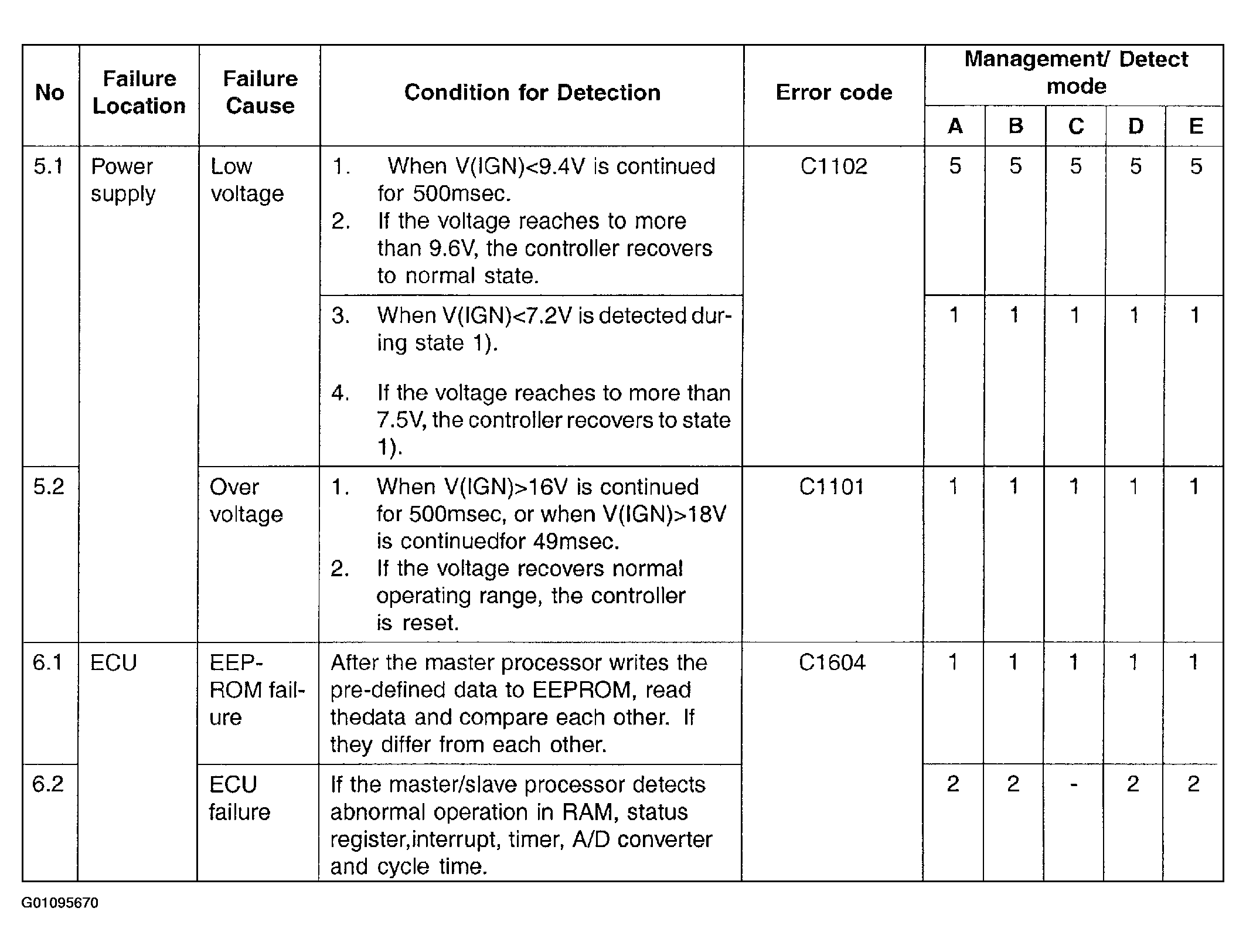

Fig 3: Diagnostic Trouble Code Descriptions (3 Of 3)
G01095670Courtesy of KIA MOTORS AMERICA, INC.
