Manual Release Method Of Shift Lock

  1. Verify that the selector lever locks on the P range.
  2. Press screwdriver after opening cap and putting it into the hole.
  3. Shift selector lever.

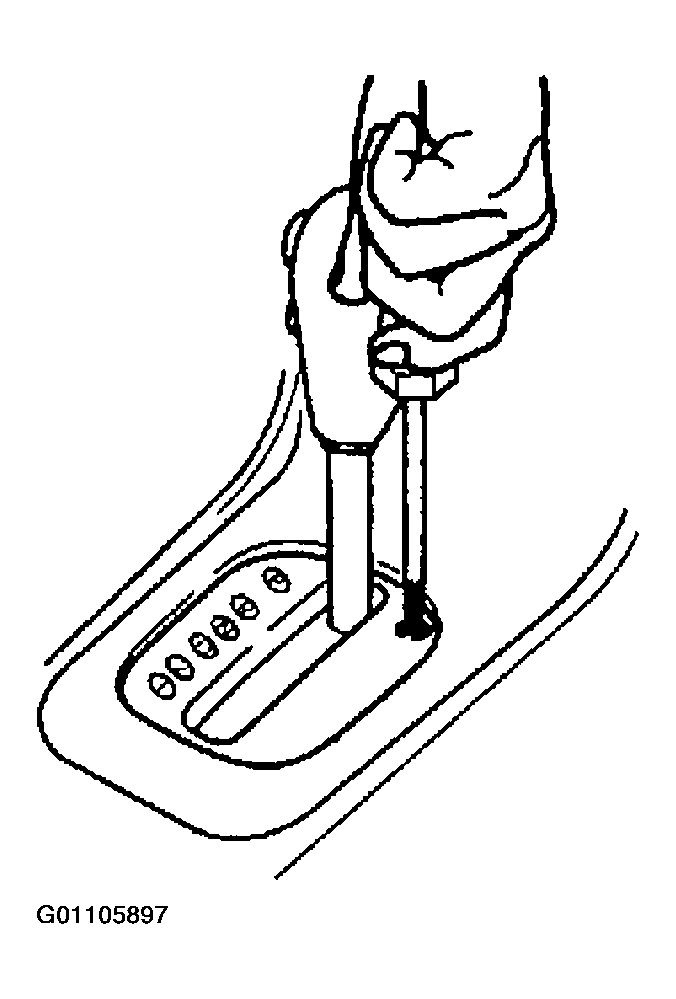

    Fig 1: Illustrating Shift Lock Manual Release Method
    G01105897Courtesy of KIA MOTORS AMERICA, INC.
