Oil Pump Assembly

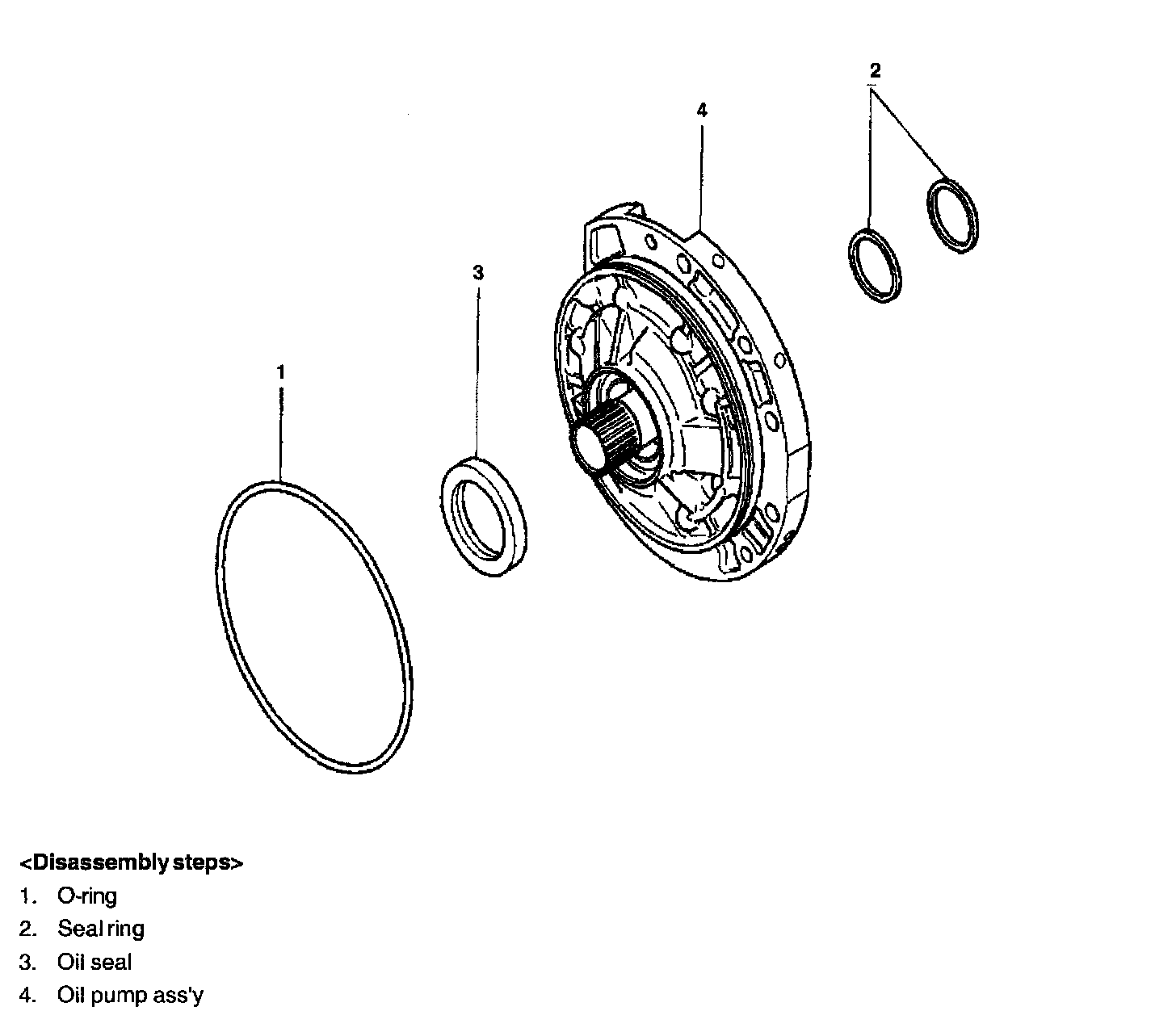

OIL PUMP ASSEMBLY

REASSEMBLY
Oil seal replacement

1. Using the special tool (09452-21200), install the oil seal to the pump housing.
2. Apply a thin coat of automatic transaxle fluid to the lip of the oil seal before installation.
