Disassembly and Reassembly



Disassembly and Reassembly




1. Remove the generator cover using a screwdriver or equivalent.




2. After loosening the 3 mounting bolts, detach the brush holder assembly.




3. Remove the nut, pulley and spacer.




4. Reverse procedure for reassembly.

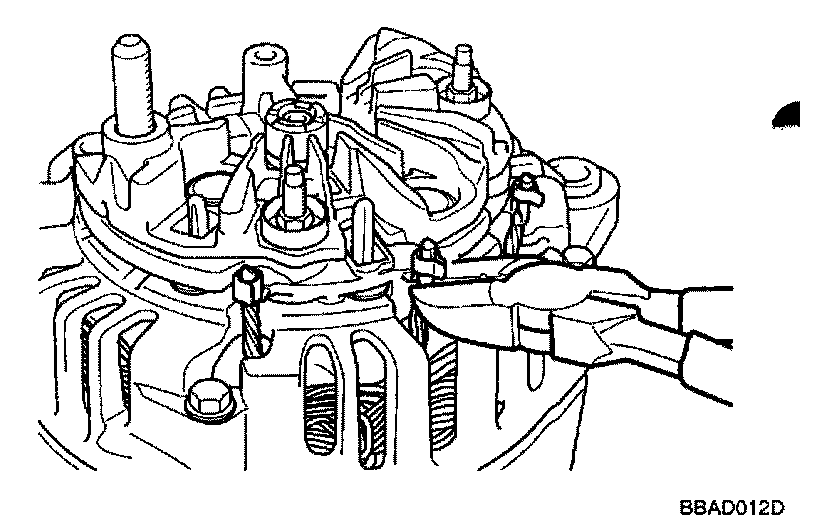

CAUTION

Cutting the stator coil lead line connection to the rectifier may damage the generator because the rectifier and the stator coil lead line are soldered together. So, do not disassemble further.
