Vehicle Lifting: Service and Repair

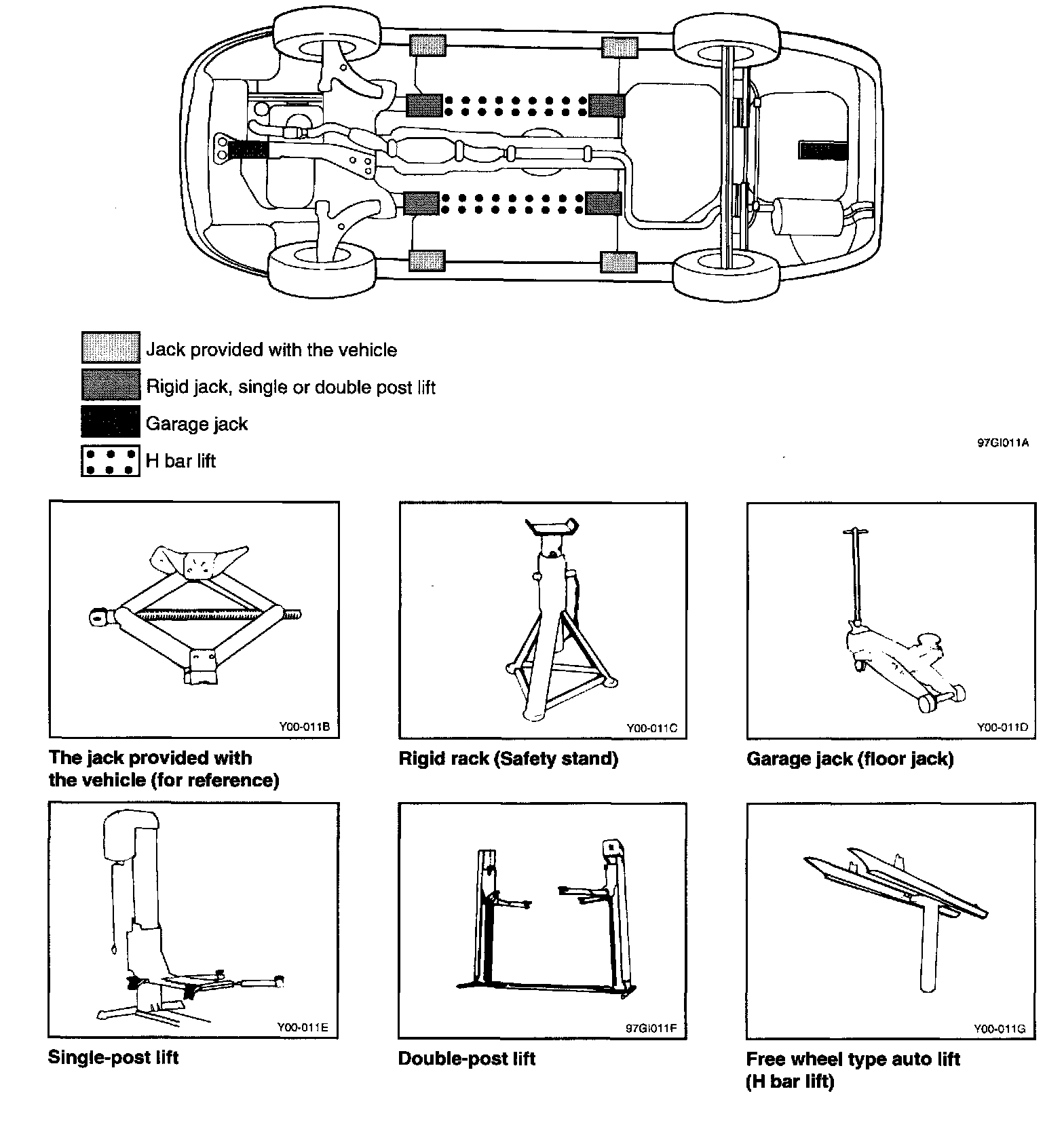

Vehicle Lift And Support Locations:

CAUTION:
1. Never use a jack at the lateral rod or rear suspension assembly.
2. In order to prevent scarring the center member, place a piece of cloth on the jacks contact surface. Scoring the crossmember or damage to the coating could cause corrosion.
3. Never attempt to position a floor jack on any part of the vehicle underbody.
4. Do not attempt to raise one entire side of the vehicle by placing a lack midway between the front and rear wheels. To do so could result in permanent damage to the body.
