ETACS Keyless Entry System

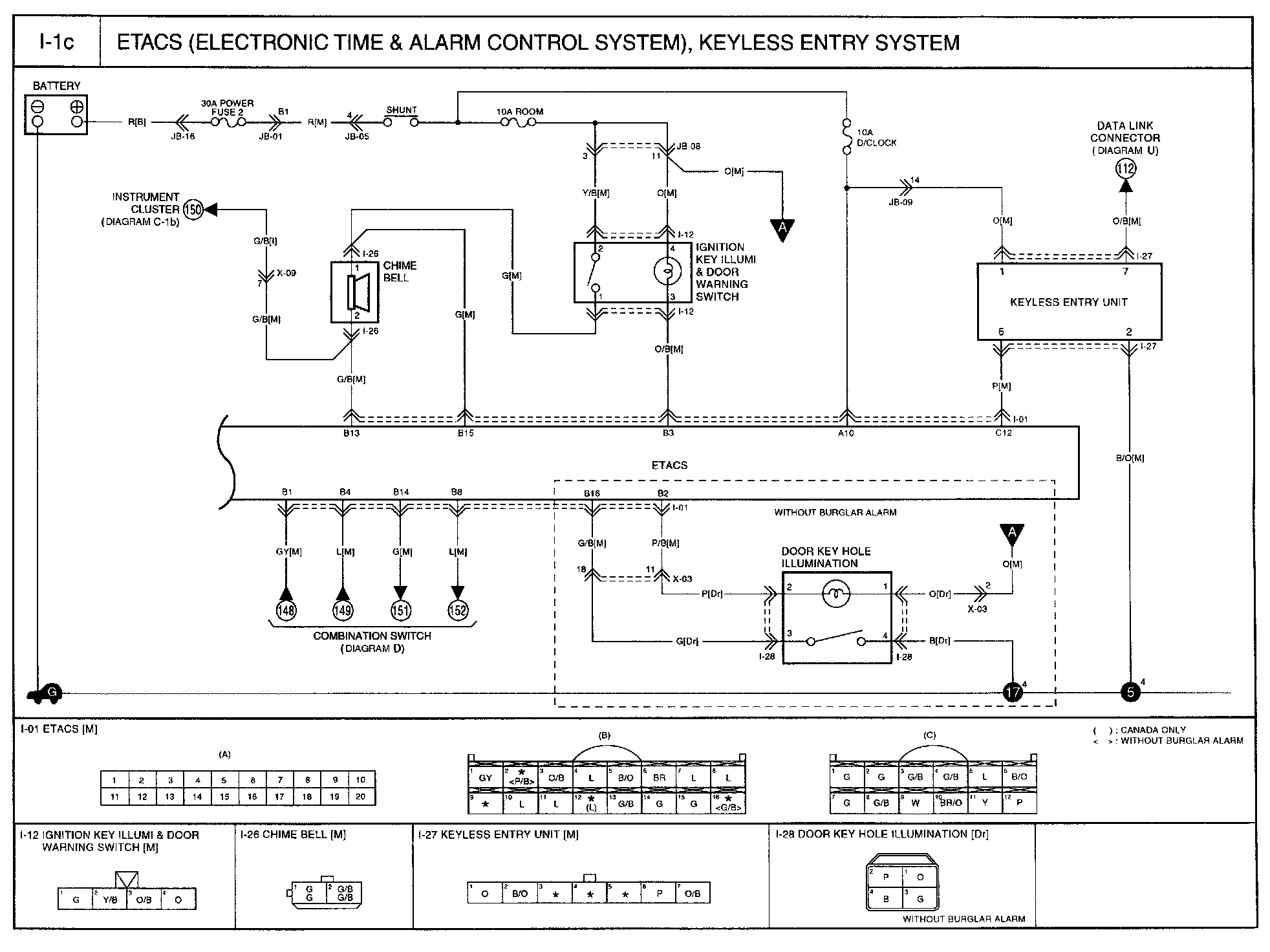

Diagram I-1c:





Routing View I-1c:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
