Bearing (Ring Gear Side)

Remove bearing by using SST (0K670 990 AA0).

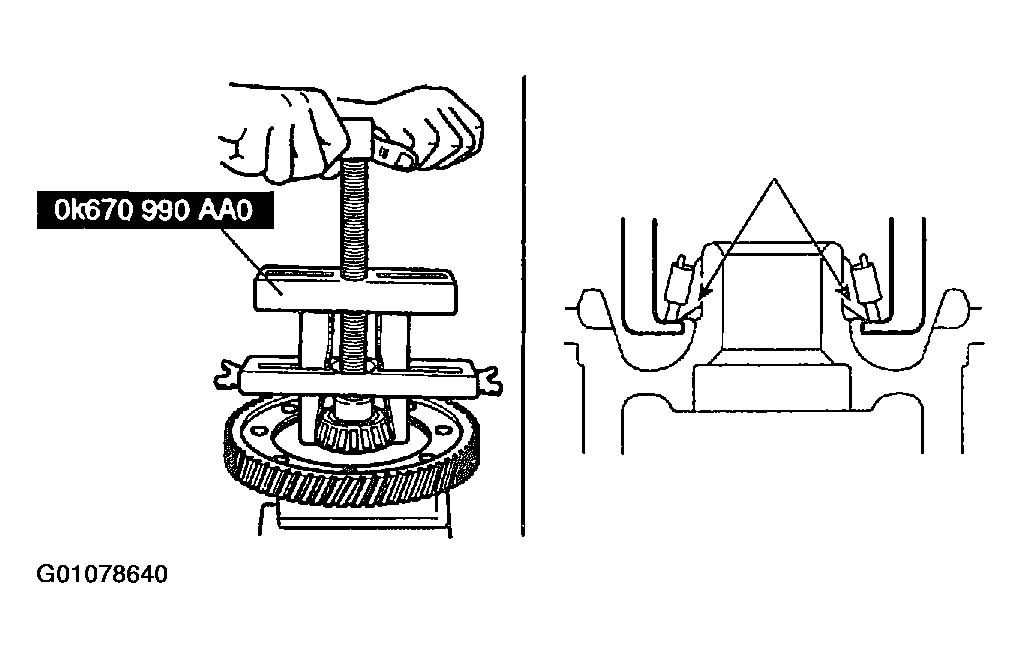

Fig 1: Removing Bearing
G01078640Courtesy of KIA MOTORS AMERICA, INC.
