Intake Air Temperature (IATS) Sensor

WARNING: This page is about a different car, the 2004 Kia Amanti. However, it is still accessible from the selected car via links, so may be relevant.

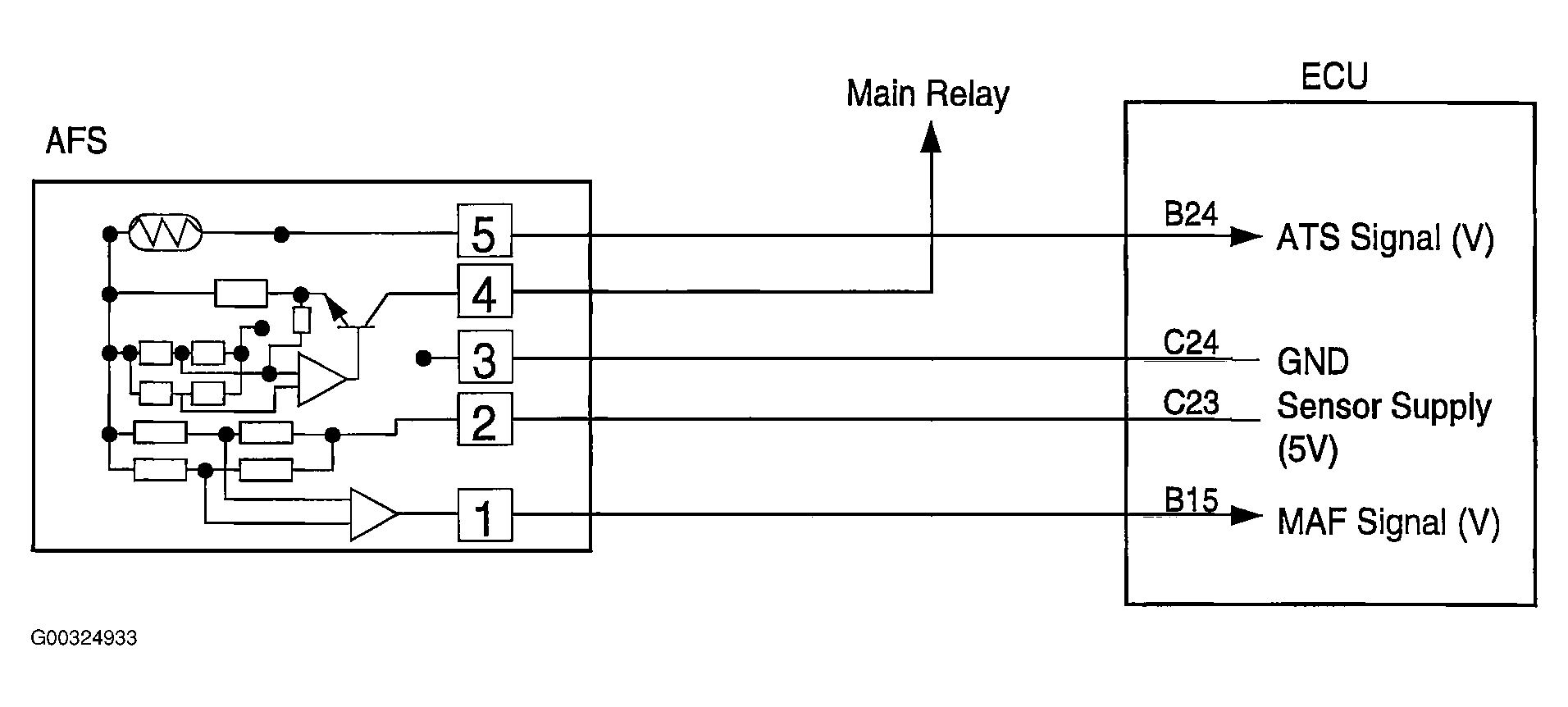

Fig 1: IATS Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: IATS Harness Connector Pinout

Courtesy of KIA MOTORS AMERICA, INC.

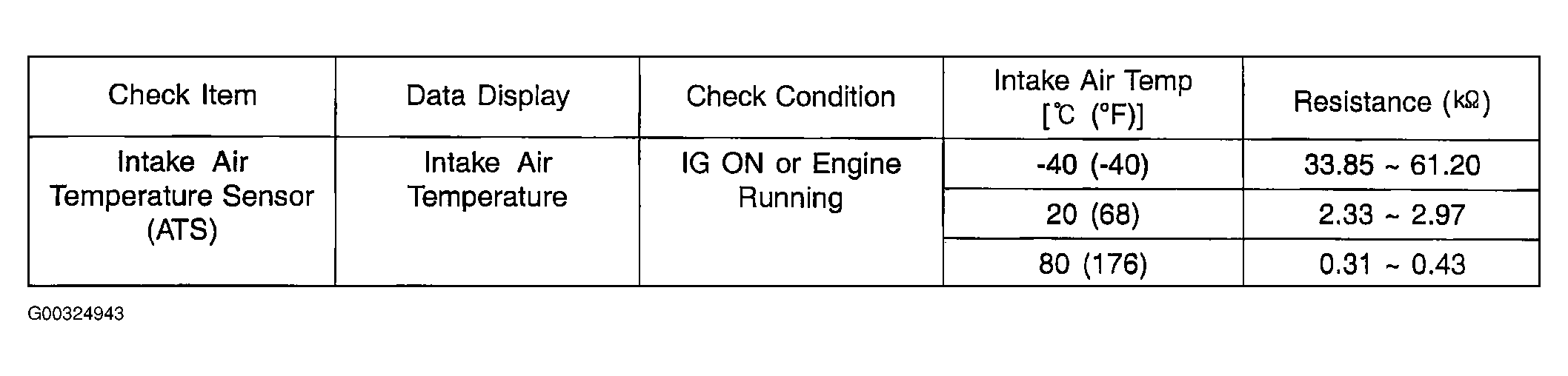

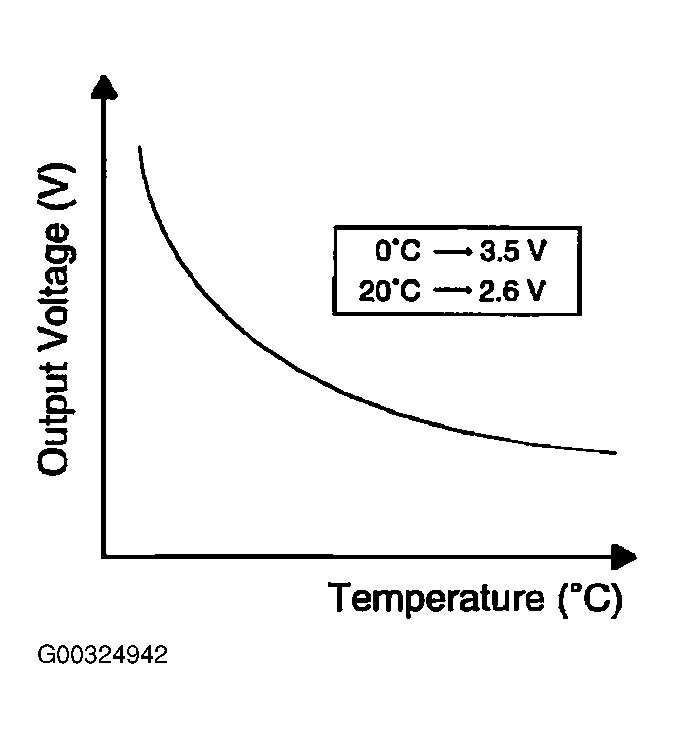

Fig 3: IATS Specification Chart

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: IATS Resistance Chart

Courtesy of KIA MOTORS AMERICA, INC.
