Timer/Control Unit, Accessory Control

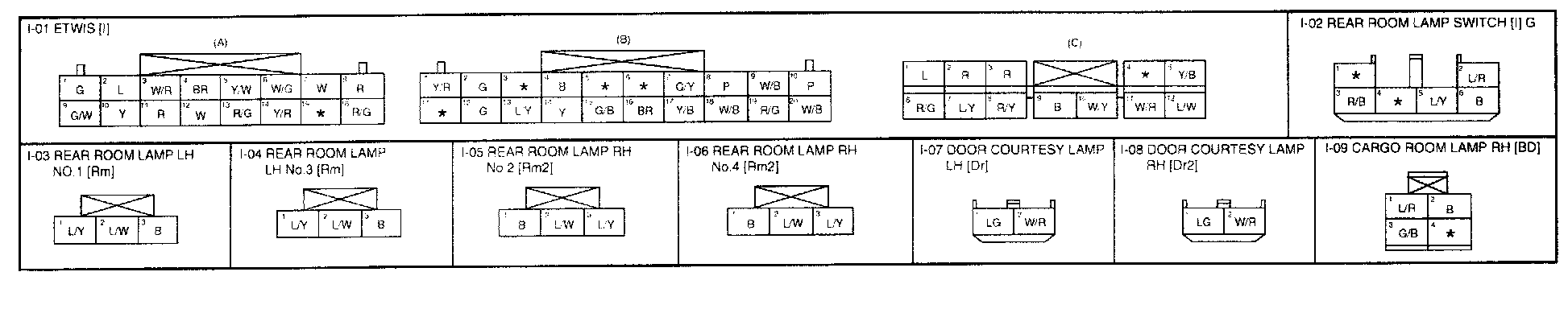

I-1a - ETWIS, Rear Room Lamp, Cargo Room Lamp Connectors:

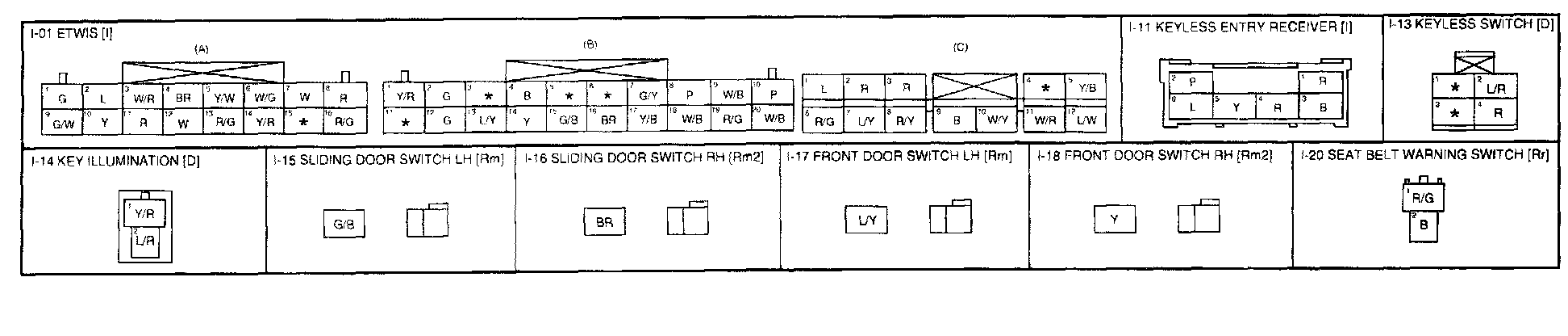

I-1b - ETWIS, Keyless Entry System Connectors:



I-1c - ETWIS Connectors:

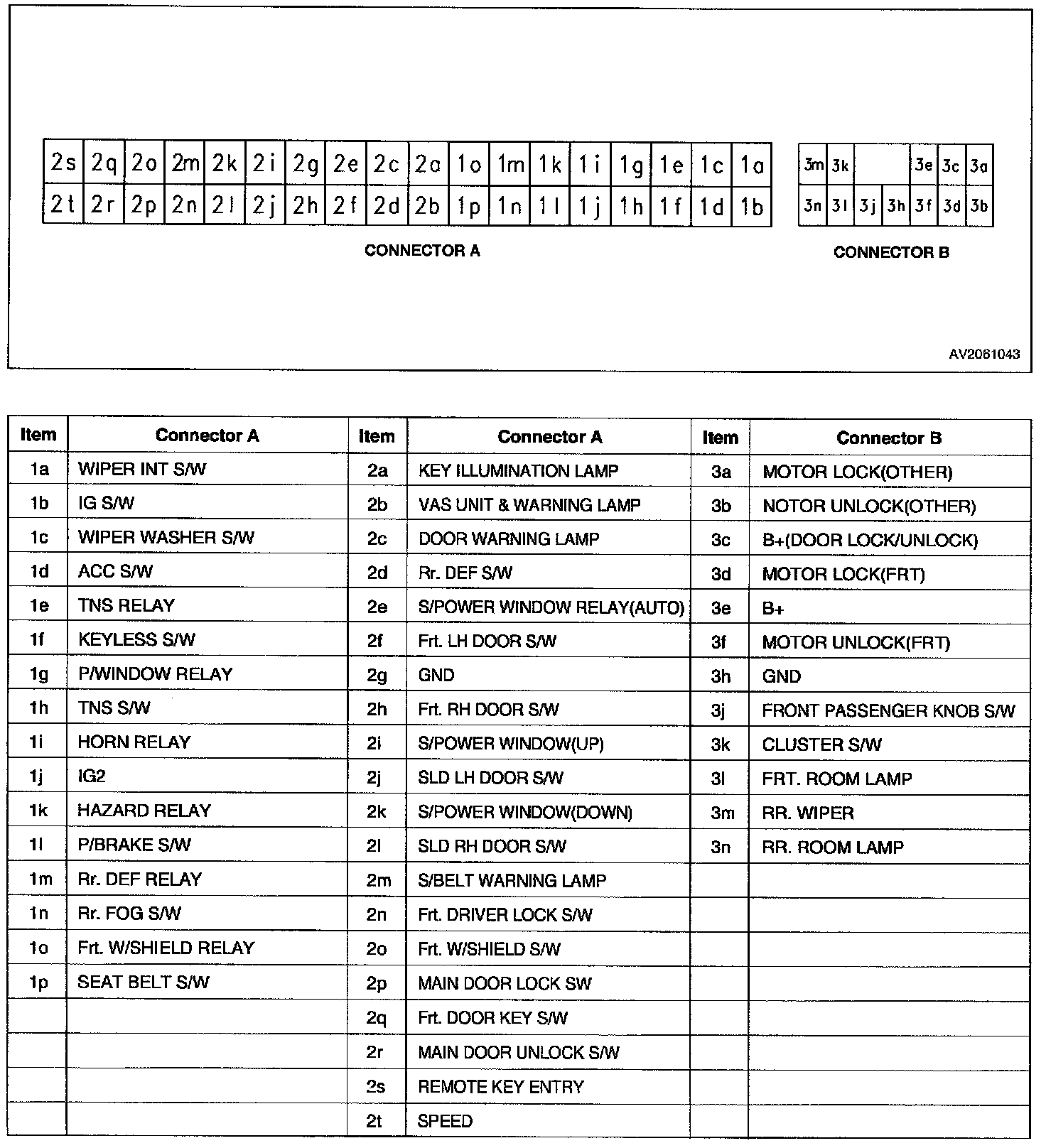

ETACS Terminal Configuration:
