Bearing Cover Assembly

Disassembly

1. Remove oil seal.

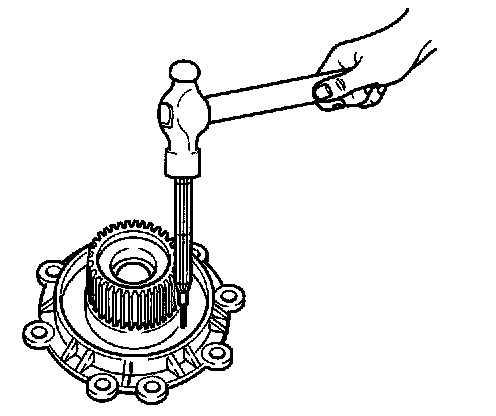

2. Remove bearing outer race with a pin punch and hammer as shown
3. Remove O-ring.

Reassembly
1. Apply ATF to new O-ring and install O-ring.

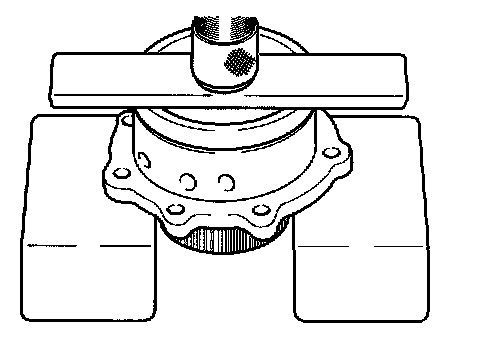

2. Press bearing outer race into the cover.

3. Press new oil seal into bearing cover with SST(0K201 190 017).
