Cooling System: Thermostat: Components

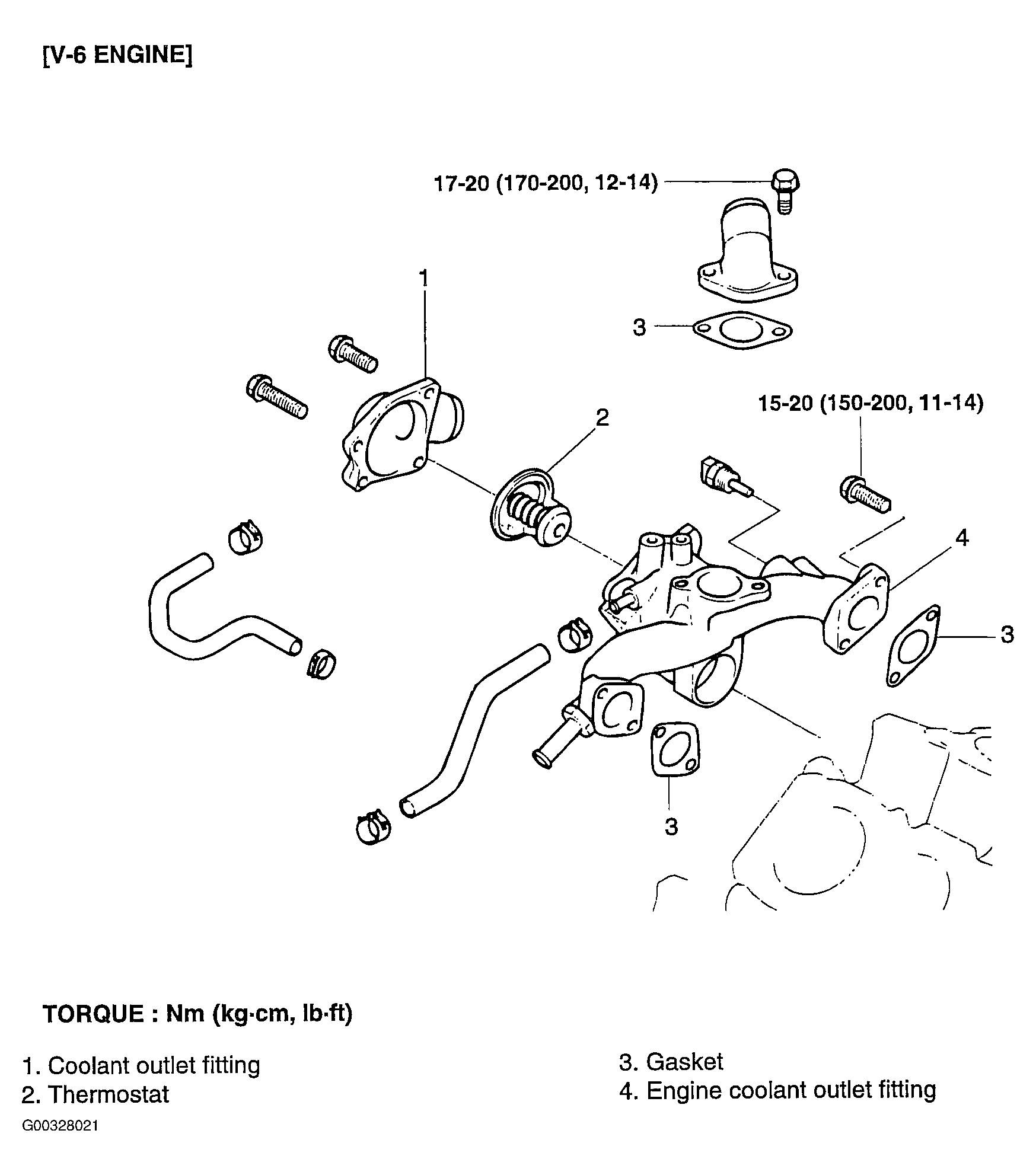

Fig 1: Removing & Installing Thermostat

G00328021

Courtesy of KIA MOTORS AMERICA, INC.
