Output Gear: Reassembly

  1. Press new bearings onto output gear with suitable tools.

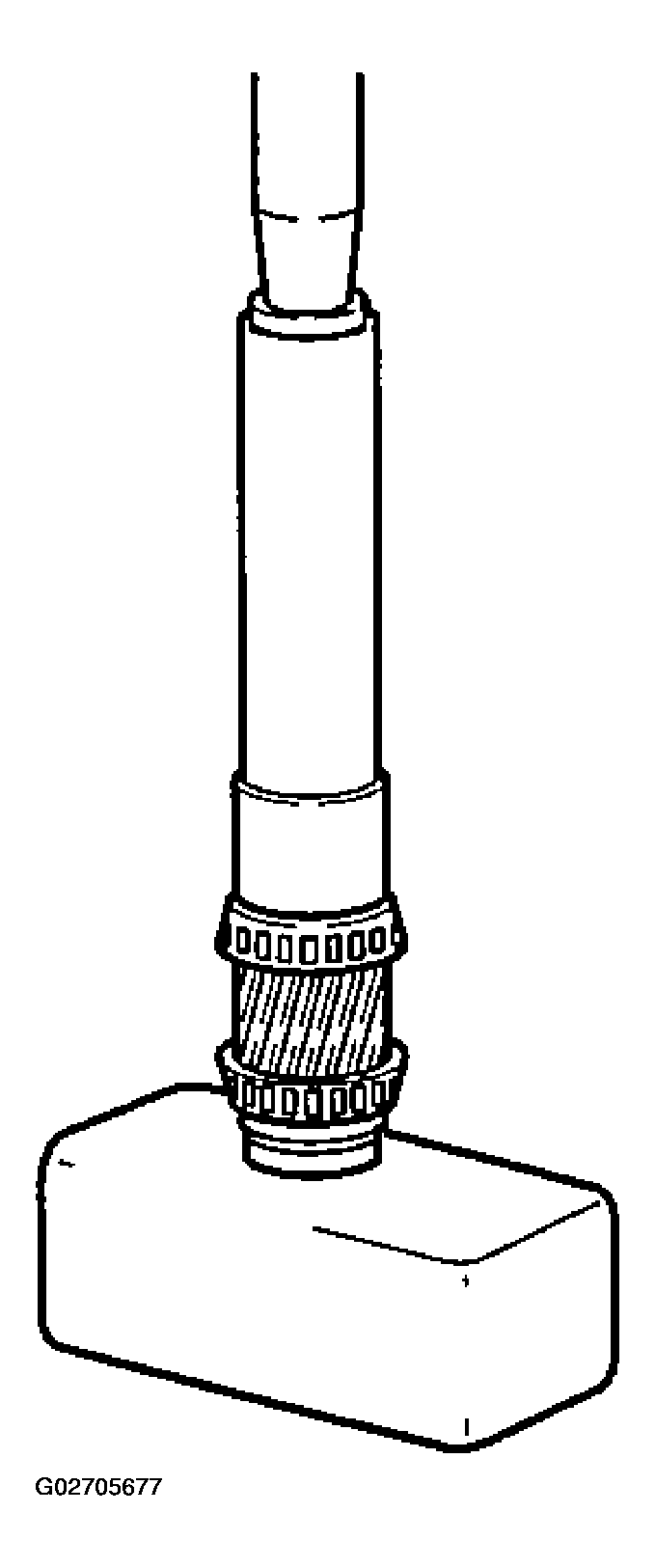

    Fig 1: Pressing Bearings Onto Output Gear
    G02705677
  2. Apply ATF to new seal rings and install them to each side of output gear.

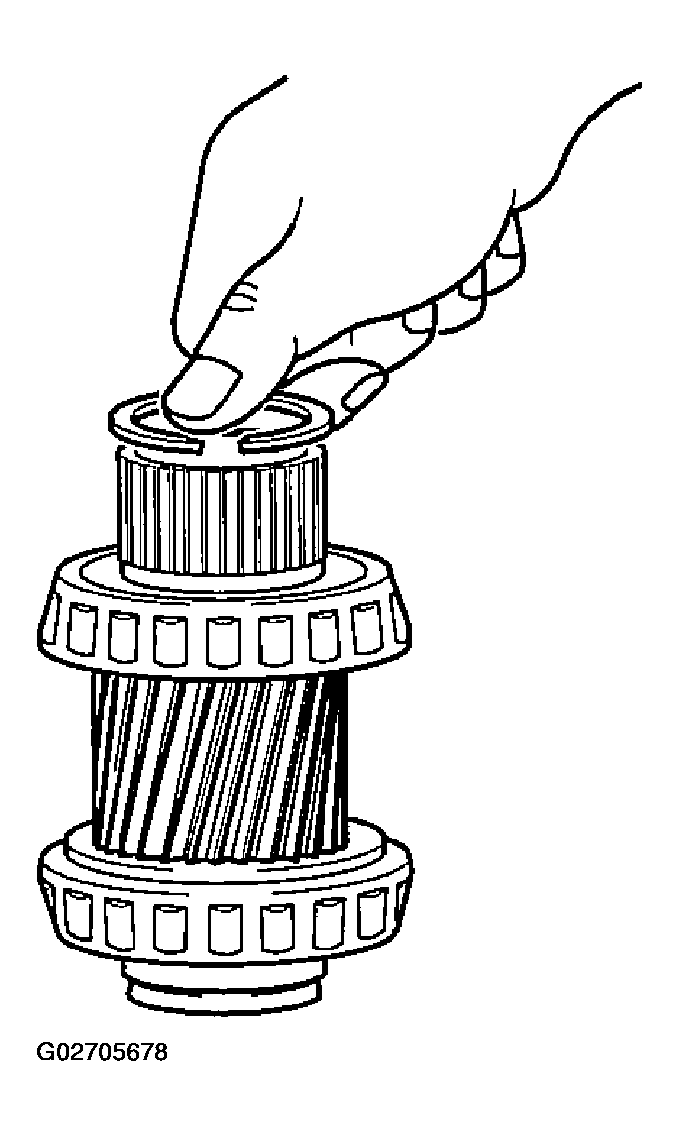

    Fig 2: Installing Seal Rings Onto Output Gear
    G02705678
