Accumulator Spring Inspection

  1. Measure spring free length.
  2. If not within specification, replace spring.

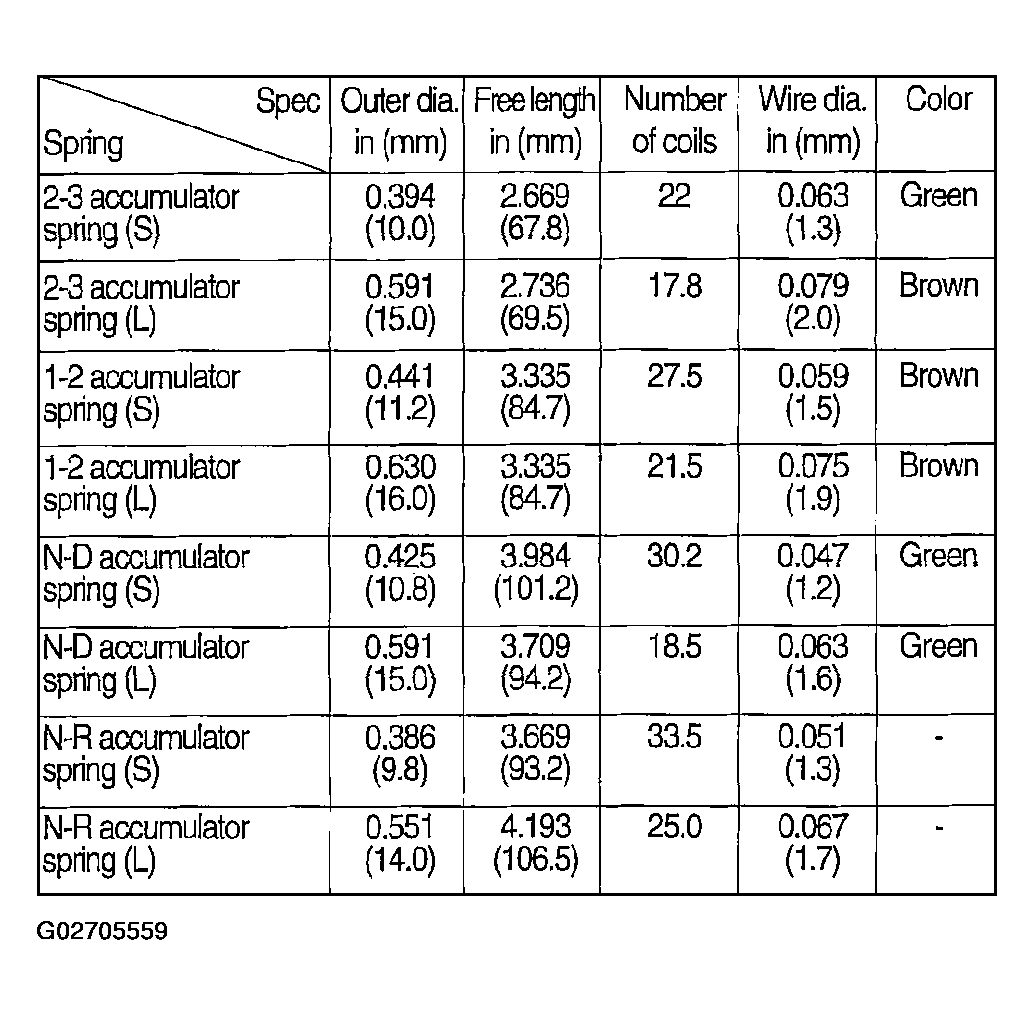

    Fig 1: Identifying Accumulator Spring Specifications
    G02705559
    Fig 2: Measuring Accumulator Spring Length & Diameter
    G02705560
