Engine Control Module

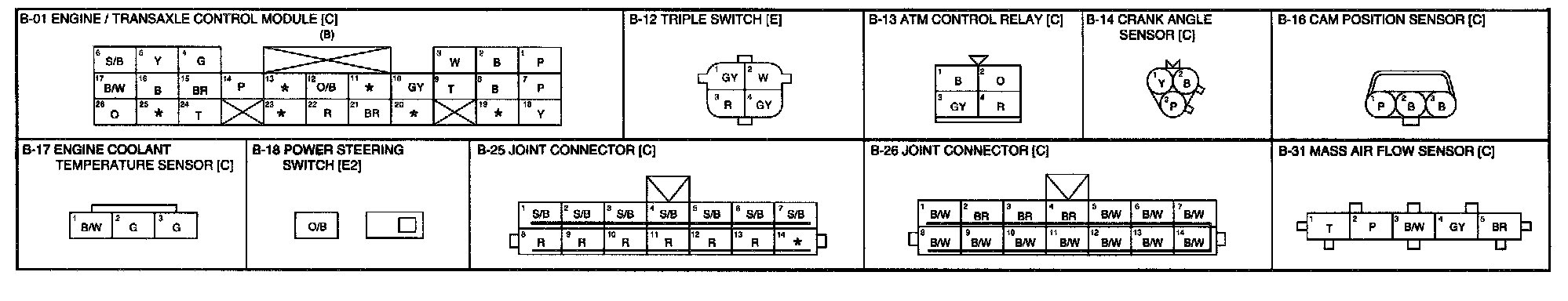

B-2a - Engine/Transaxle Control System (ECM/TCM) Connectors:

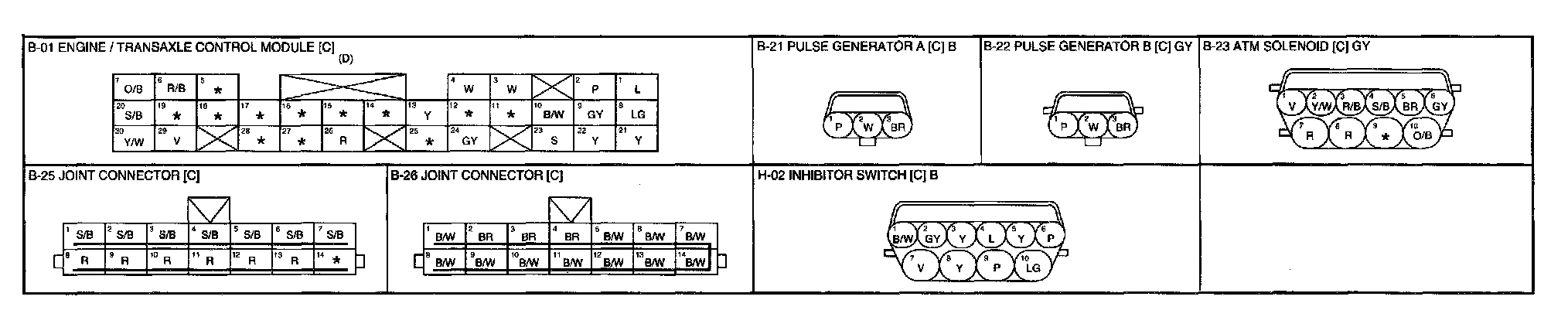

B-2b - Engine/Transaxle Control System (ECM/TCM) Connectors:

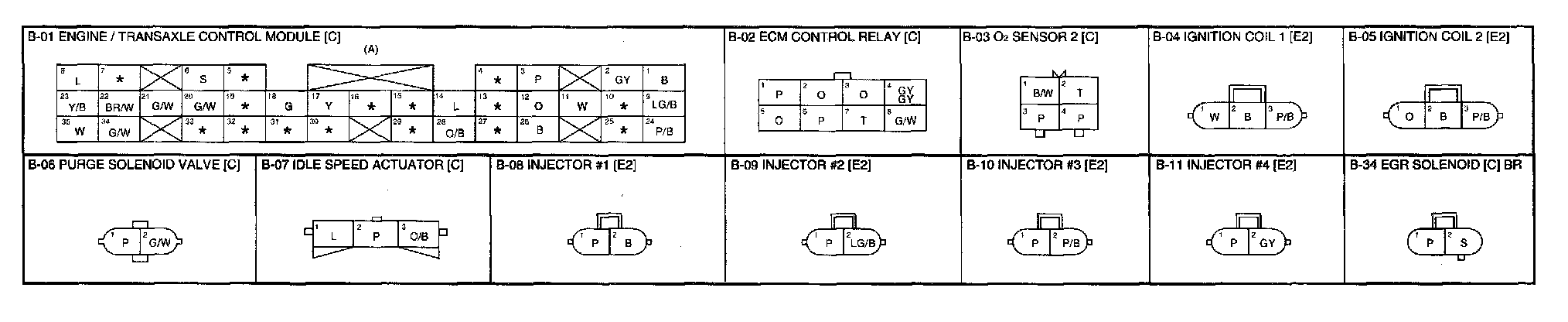

B-2c - Engine/Transaxle Control System (ECM/TCM) Connectors:



B-2d - Engine/Transaxle Control System (ECM/TCM) Connectors:
