Powertrain Management: Description and Operation

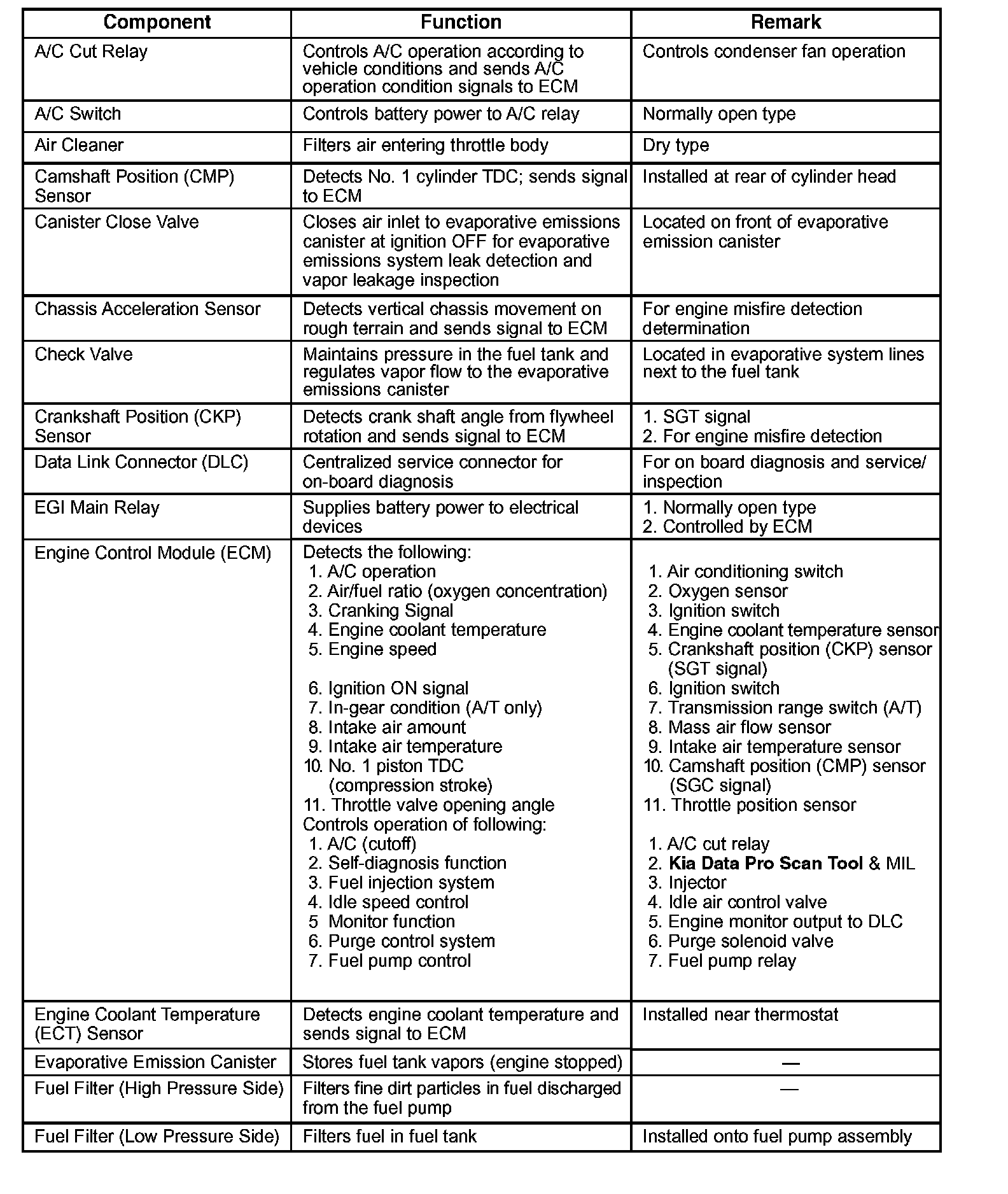

A/C Cut Relay - Fuel Filter (Low Pressure Side):

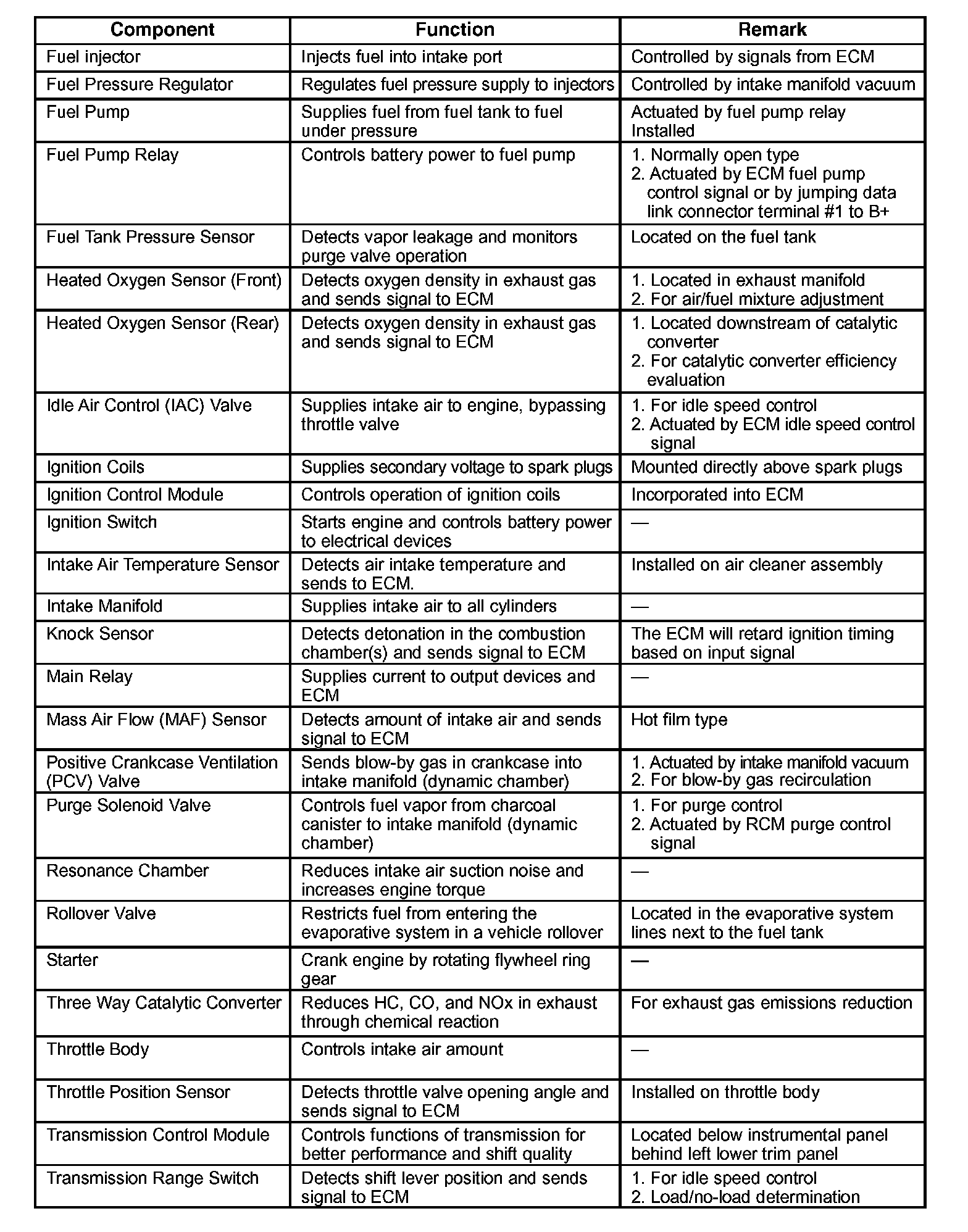

Fuel Injector - Transmission Range Switch:
