Alarm Module, (Vehicle Antitheft)

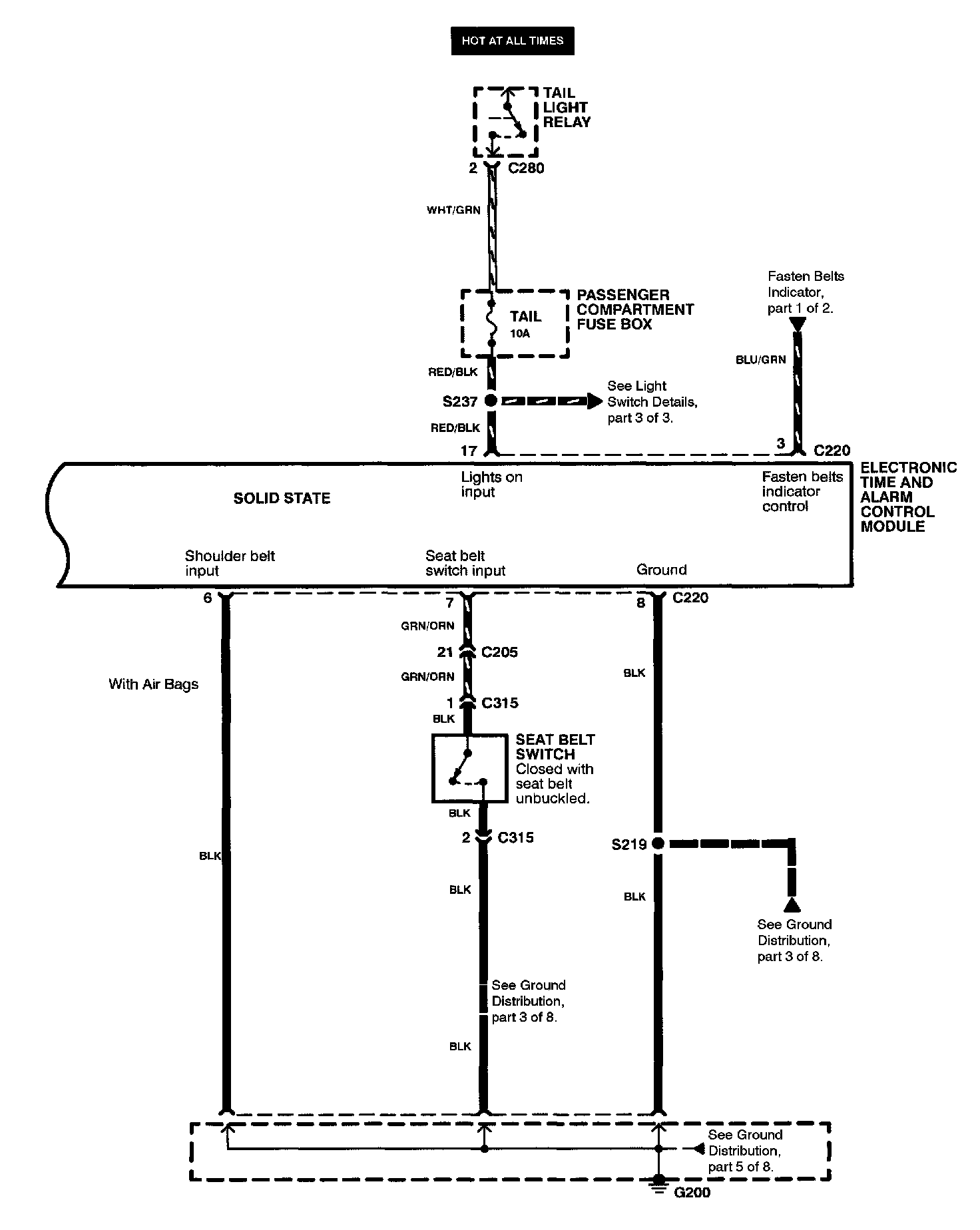

Electronic Time Alarm Control Module (Part 1 Of 2):

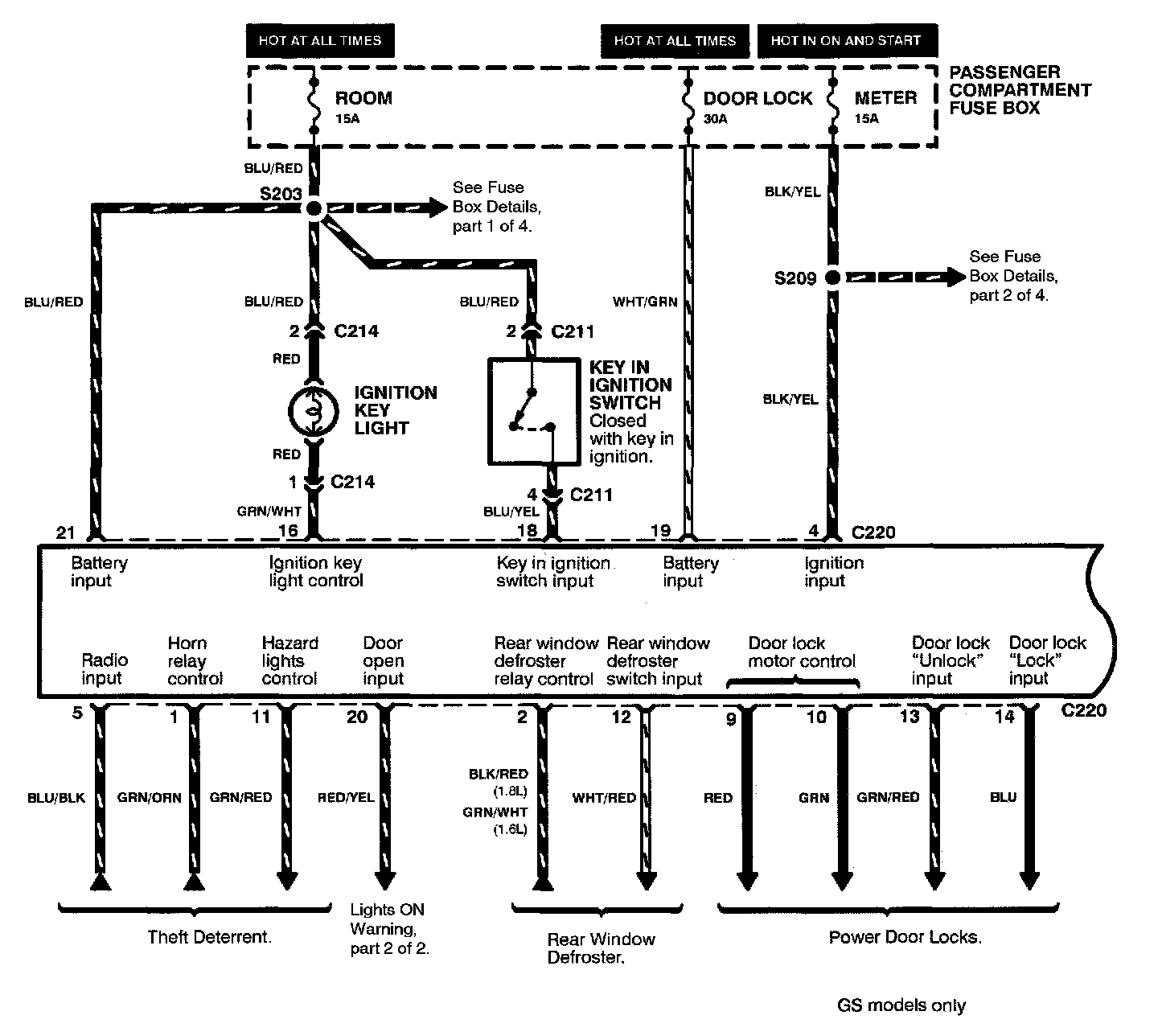

Electronic Time Alarm Control Module (Part 2 Of 2):
