Engine Control Module
PCM Terminal Identification:

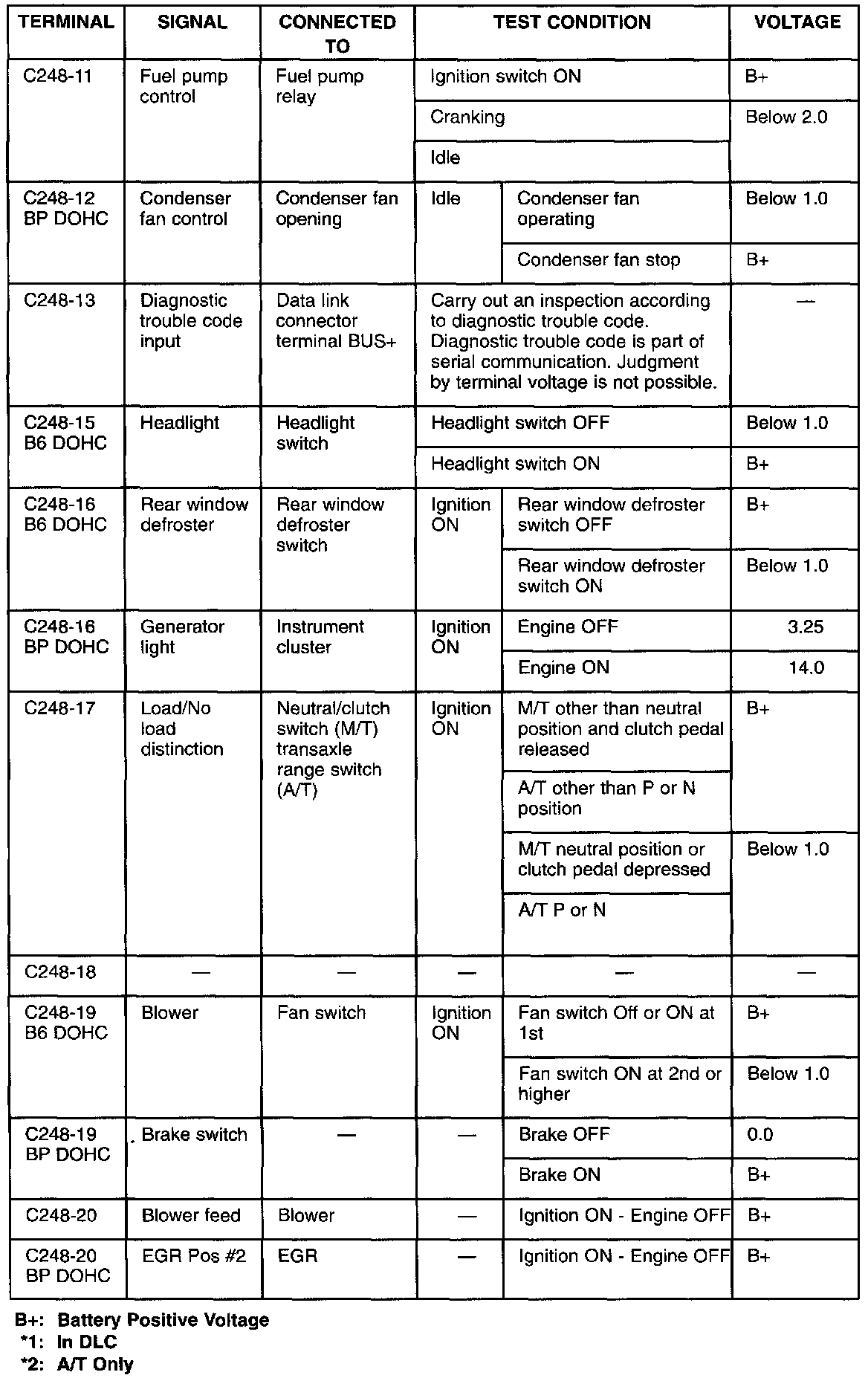

PCM Values Chart 1 Of 7:

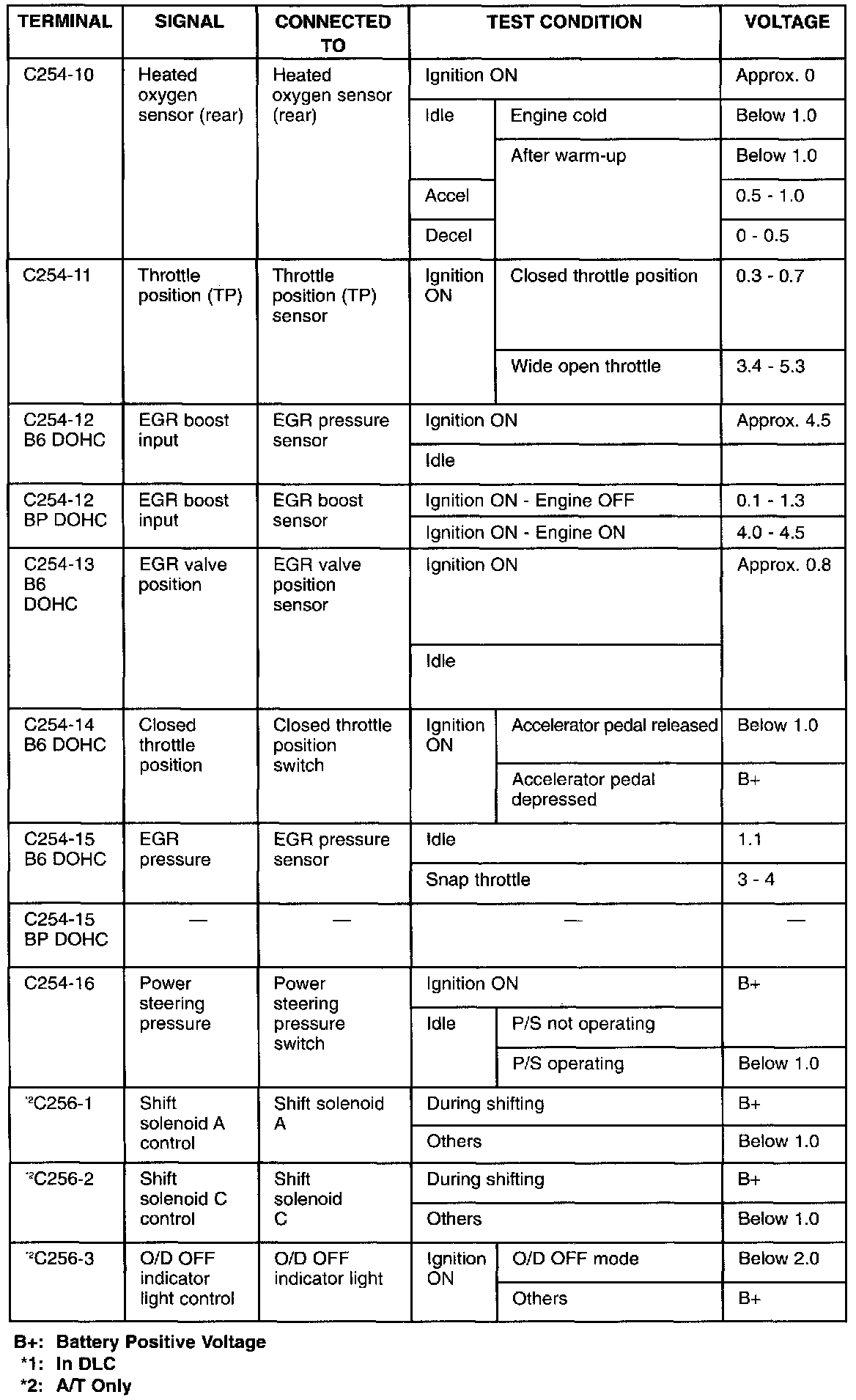

PCM Values Chart 2 Of 7:

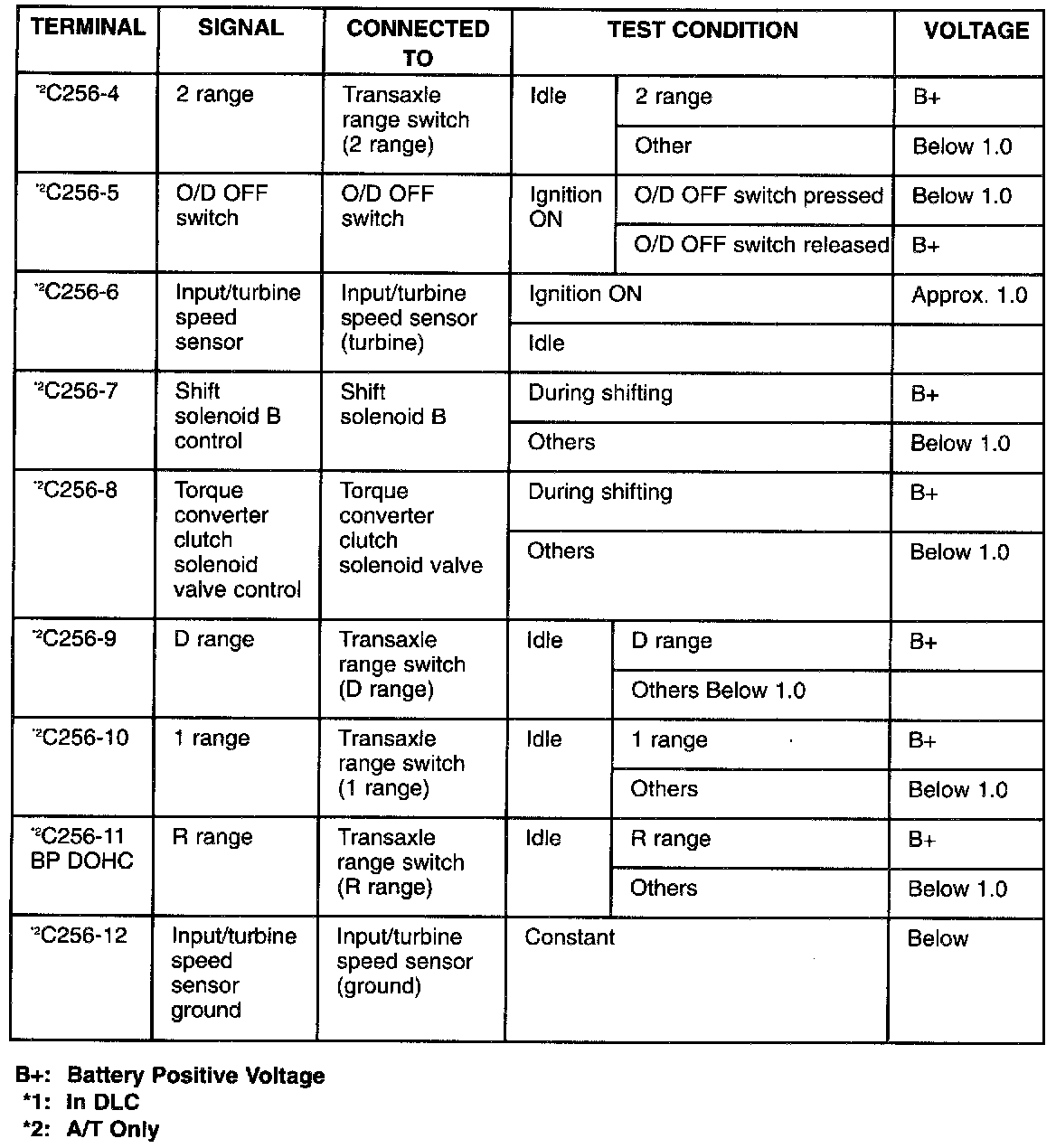

PCM Values Chart 3 Of 7:

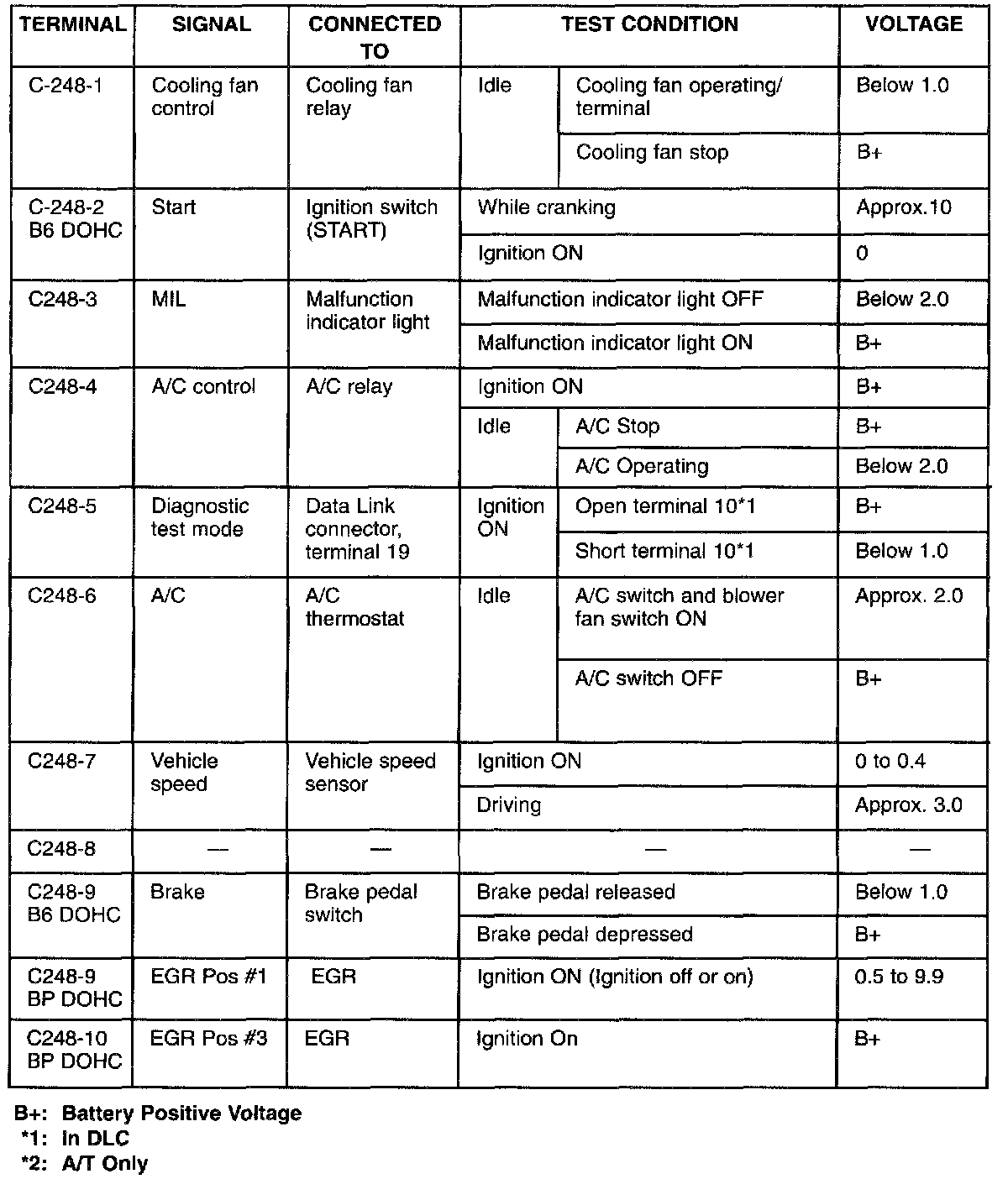

PCM Values Chart 4 Of 7:

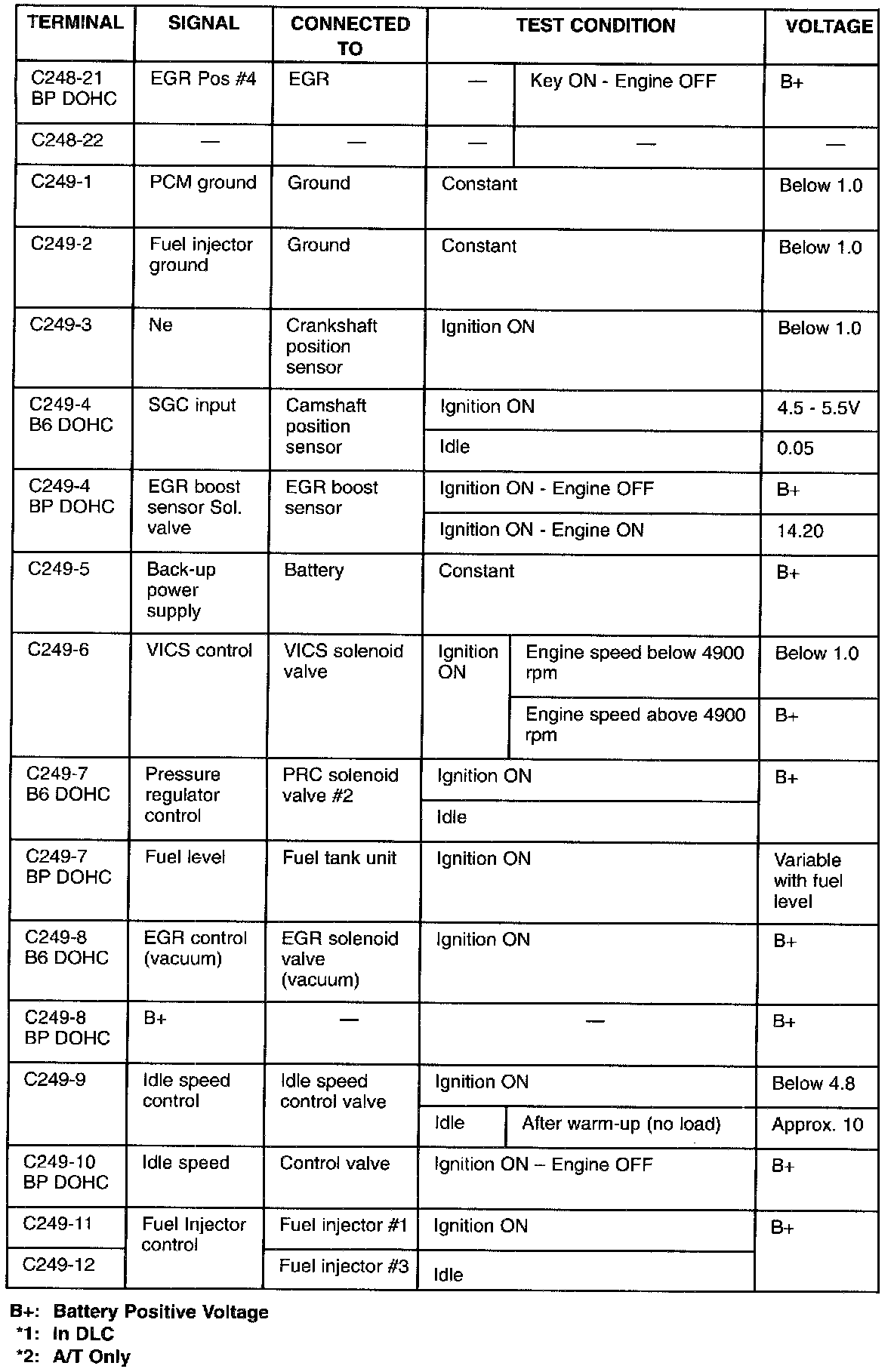

PCM Values Chart 5 Of 7:

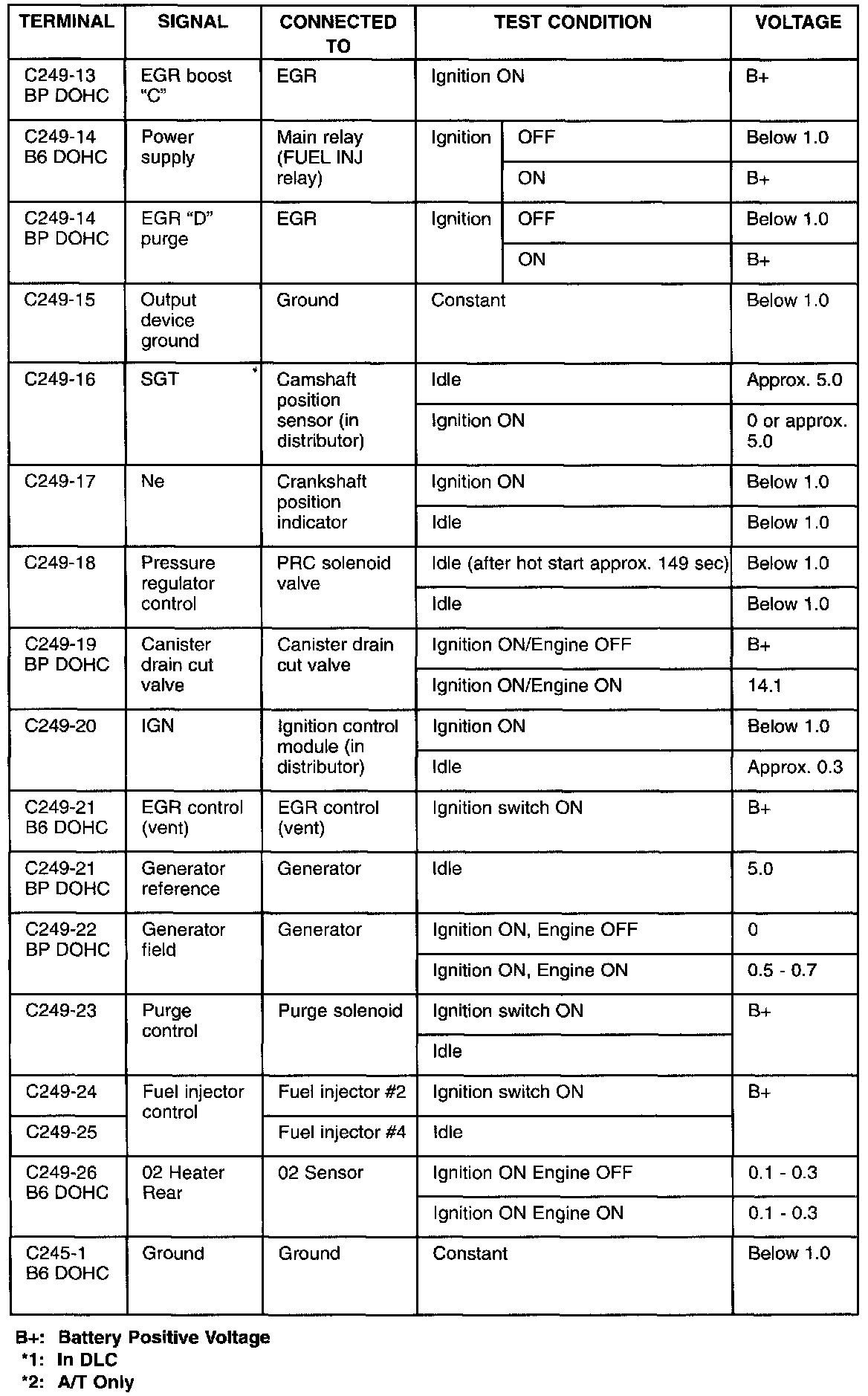

PCM Values Chart 6 Of 7:

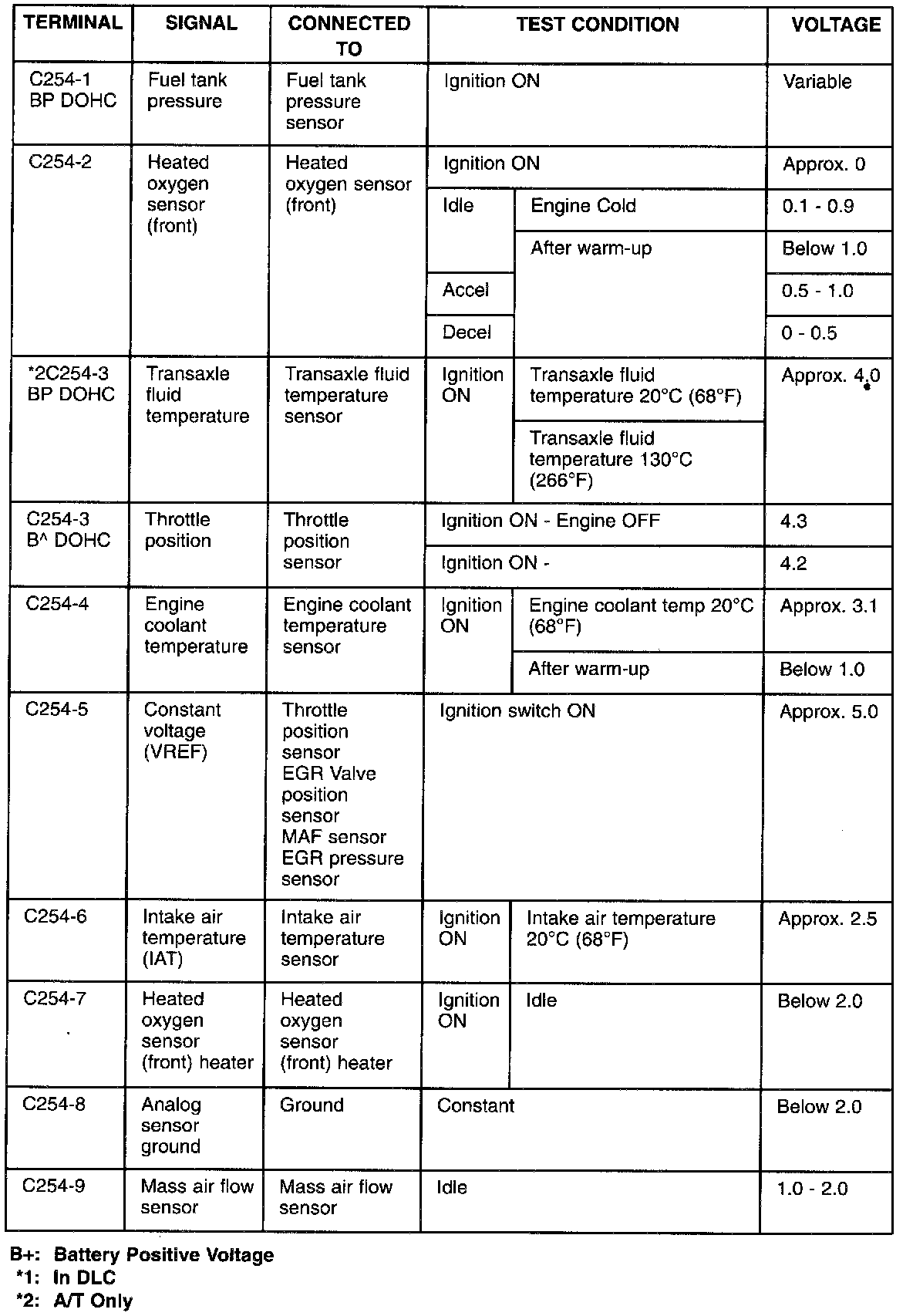

PCM Values Chart 7 Of 7:
