Up to VIN S5219999

Cruise Control-Cruise Control Unit:




Circuit Testing-Cruise Control Module:




1. Connect a voltmeter between cruise control module and ground. (Connector C228 connected)

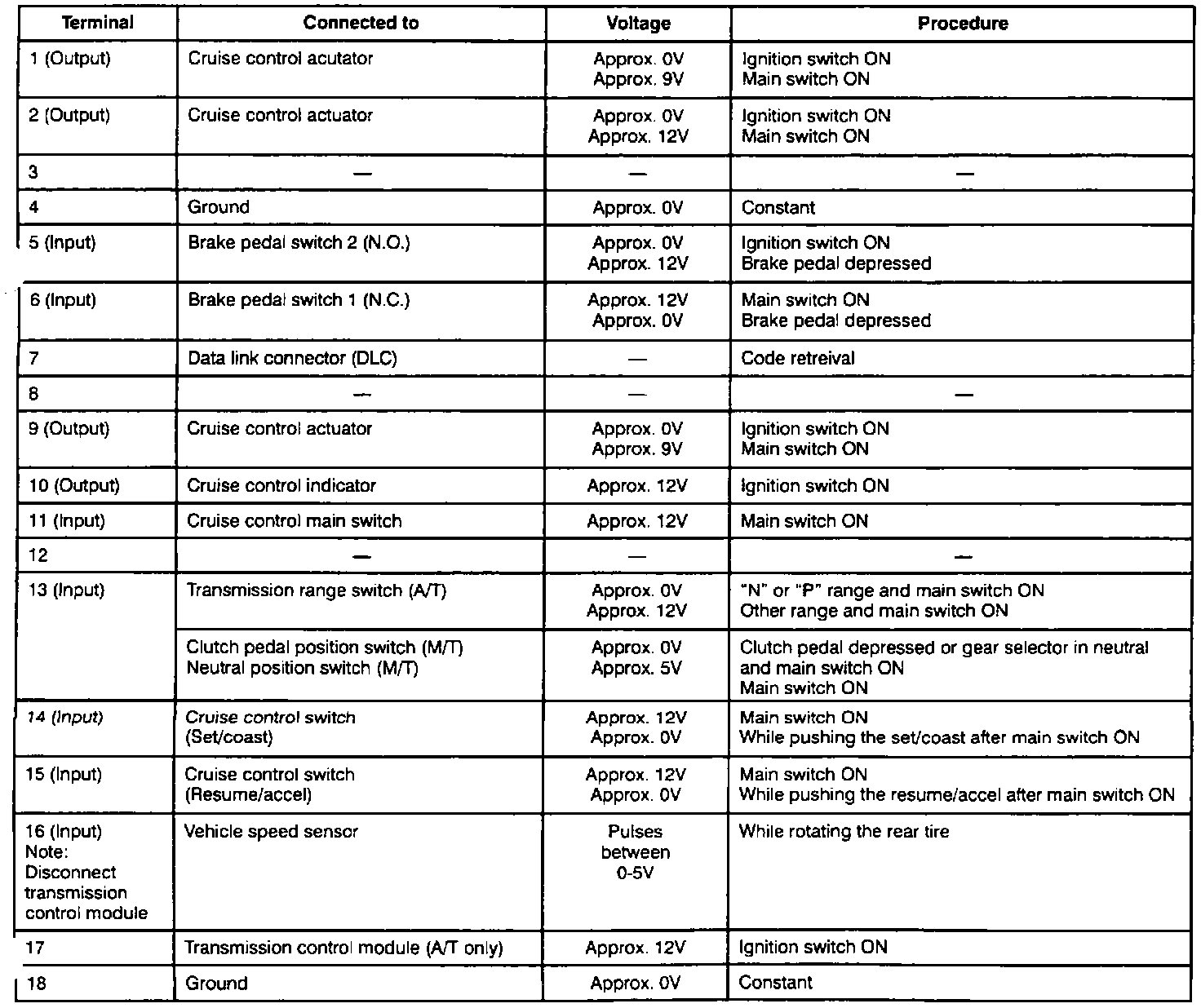

2. Turn ignition switch ON and check the terminal voltages as described.
