Transmission Mount: Notes

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the transmission crossmember support. Refer to CROSSMEMBER, REMOVAL AND INSTALLATION .
3. Remove the transmission mount to crossmember nuts.

   Courtesy of CHRYSLER GROUP, LLC

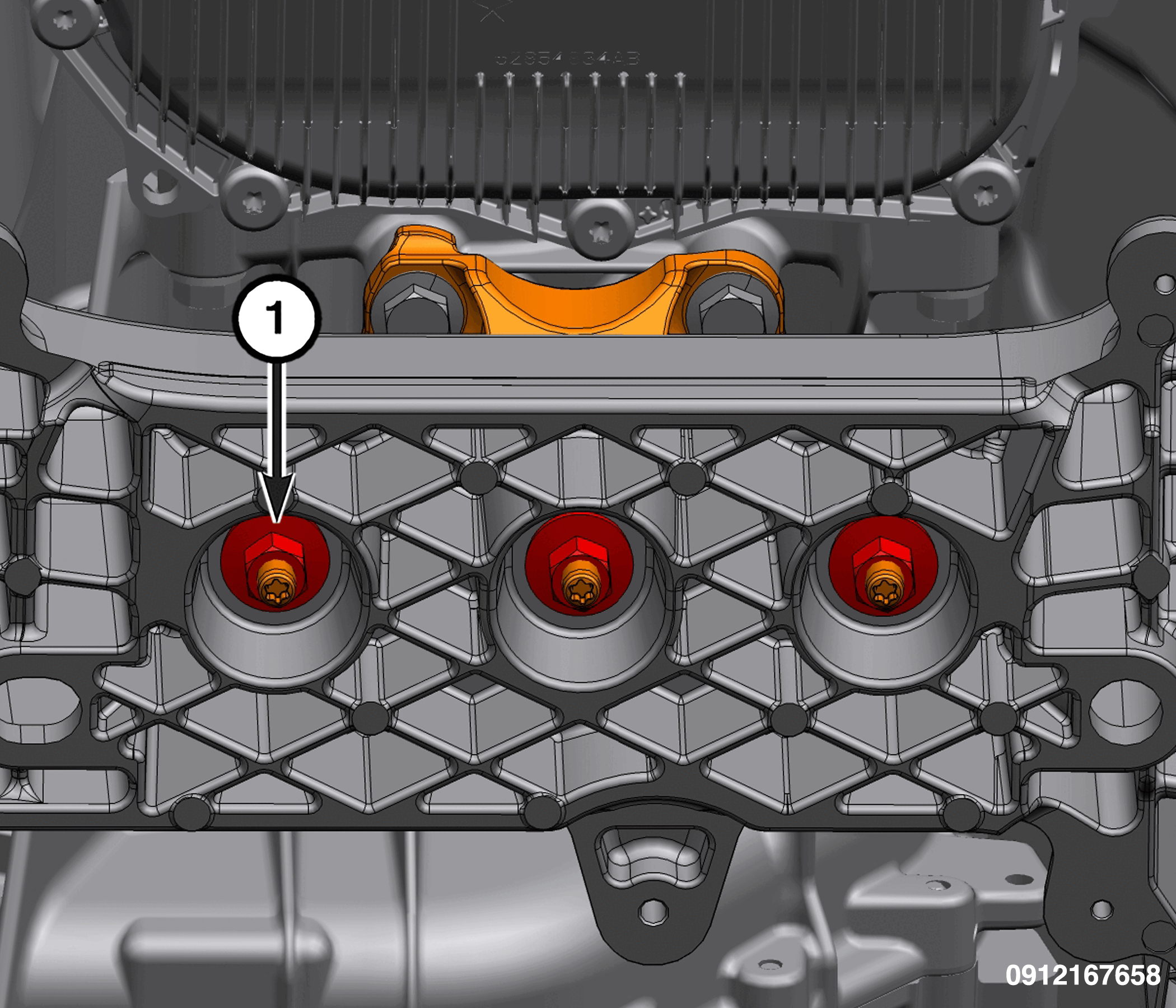

   1 - Transmission Mount to Transmission Crossmember Nuts

4. Using a suitable jack, raise the transmission off of the crossmember.
5. Remove the transmission mount to transfer case bolts and the rear mount.

   Courtesy of CHRYSLER GROUP, LLC

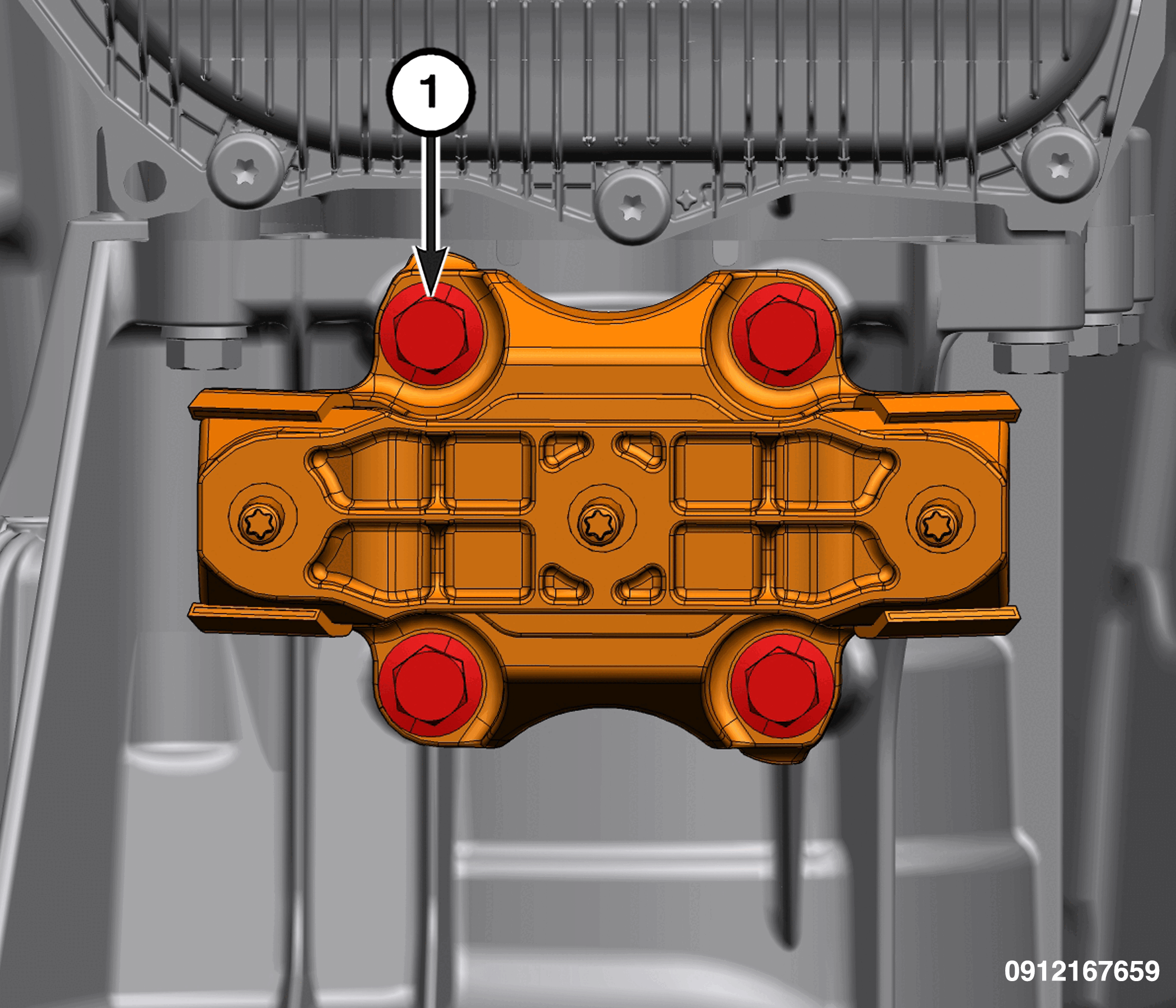

   1 - Transmission Mount Bolts

6. Remove the transmission mount from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
