Torque Specifications - Transmission Mount

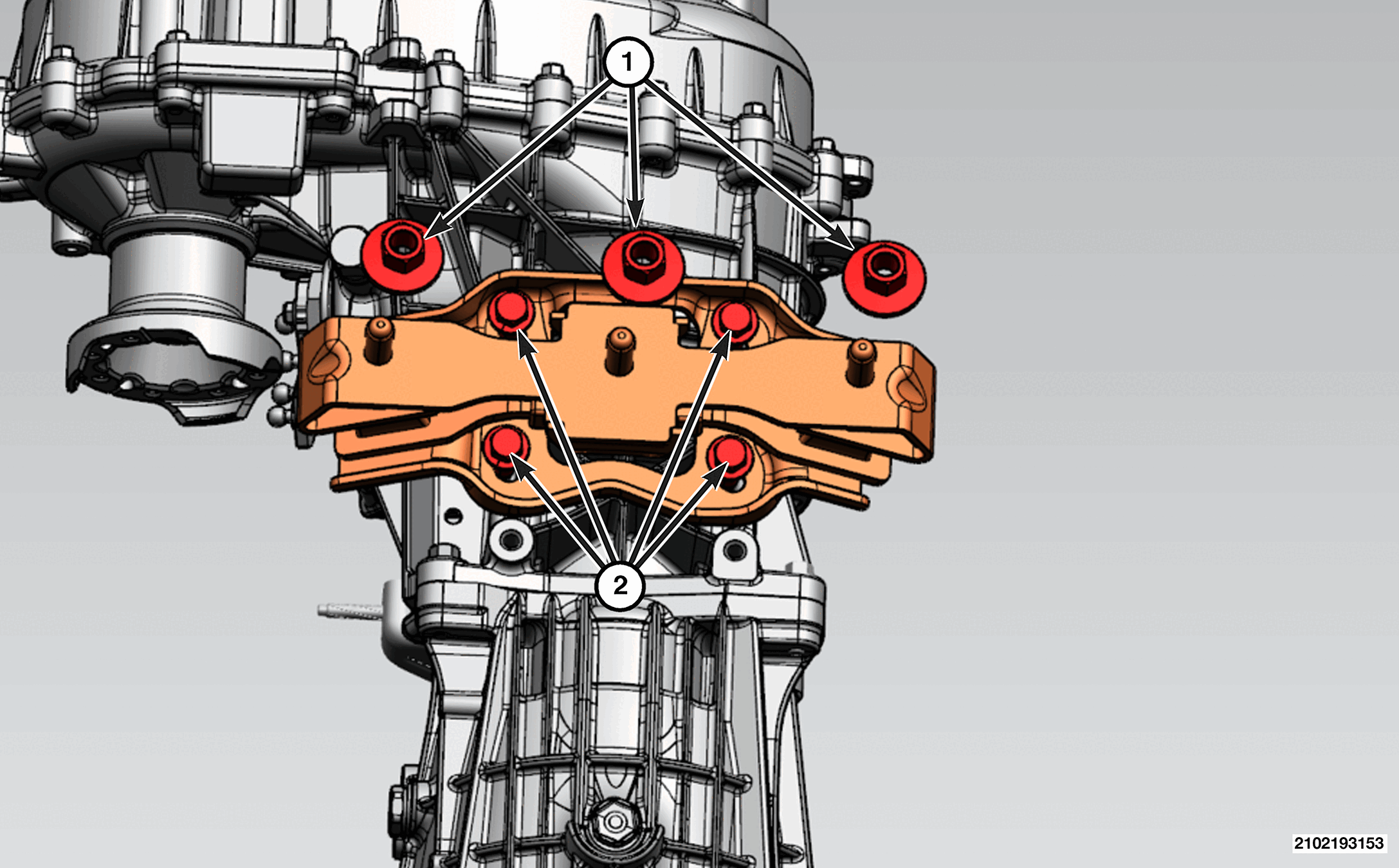

GC0205973Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Transmission Isolator to Crossmember Nuts 175 N.m (129 Ft. Lbs.)  -
2 Transmission Isolator to Transmission Bolts 55 N.m (41 Ft. Lbs.)  -
