Torque Specifications - CROSSMEMBER

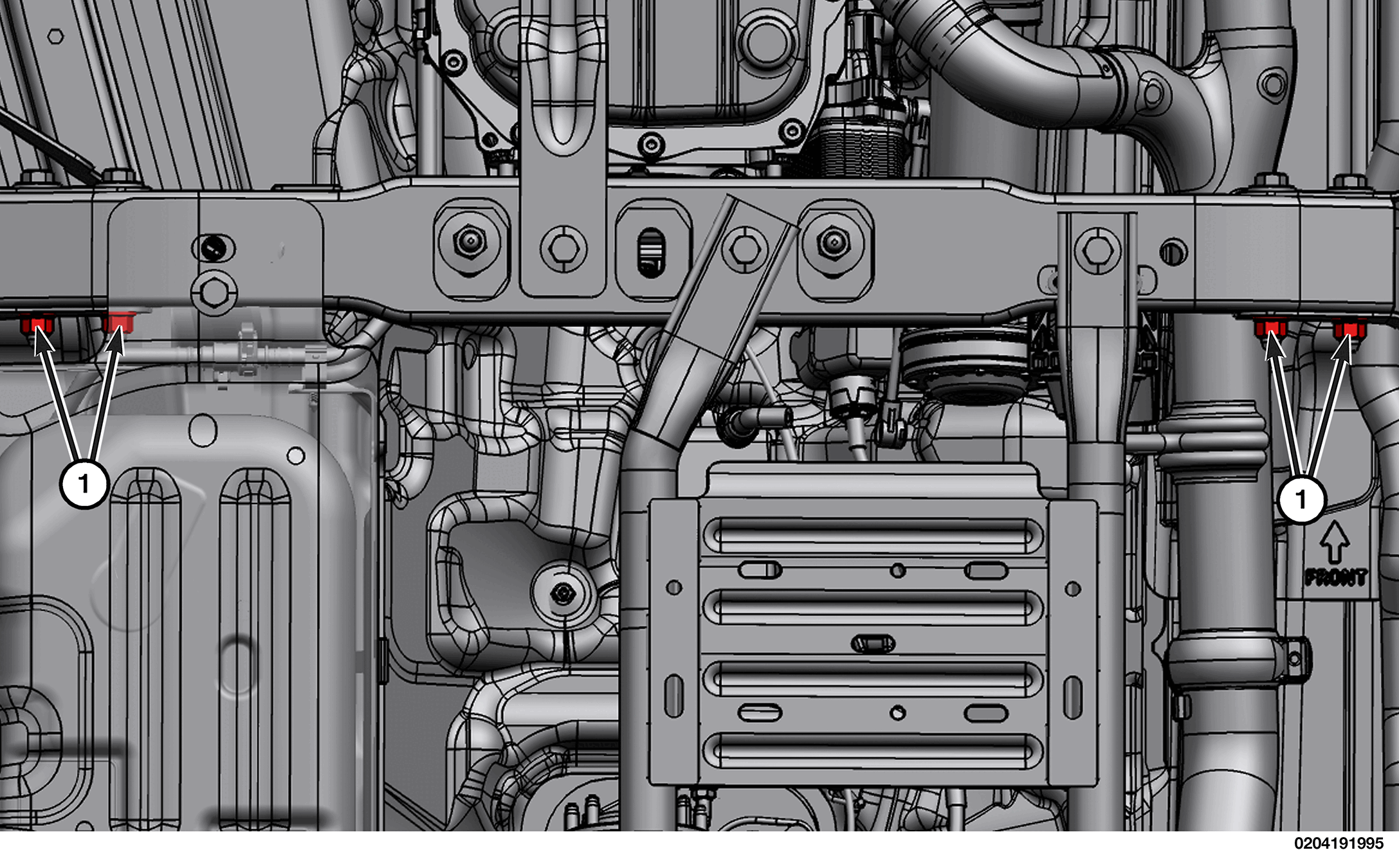

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Transmission Crossmember Frame Nuts | 70 N.m (52 Ft. Lbs.) | - |

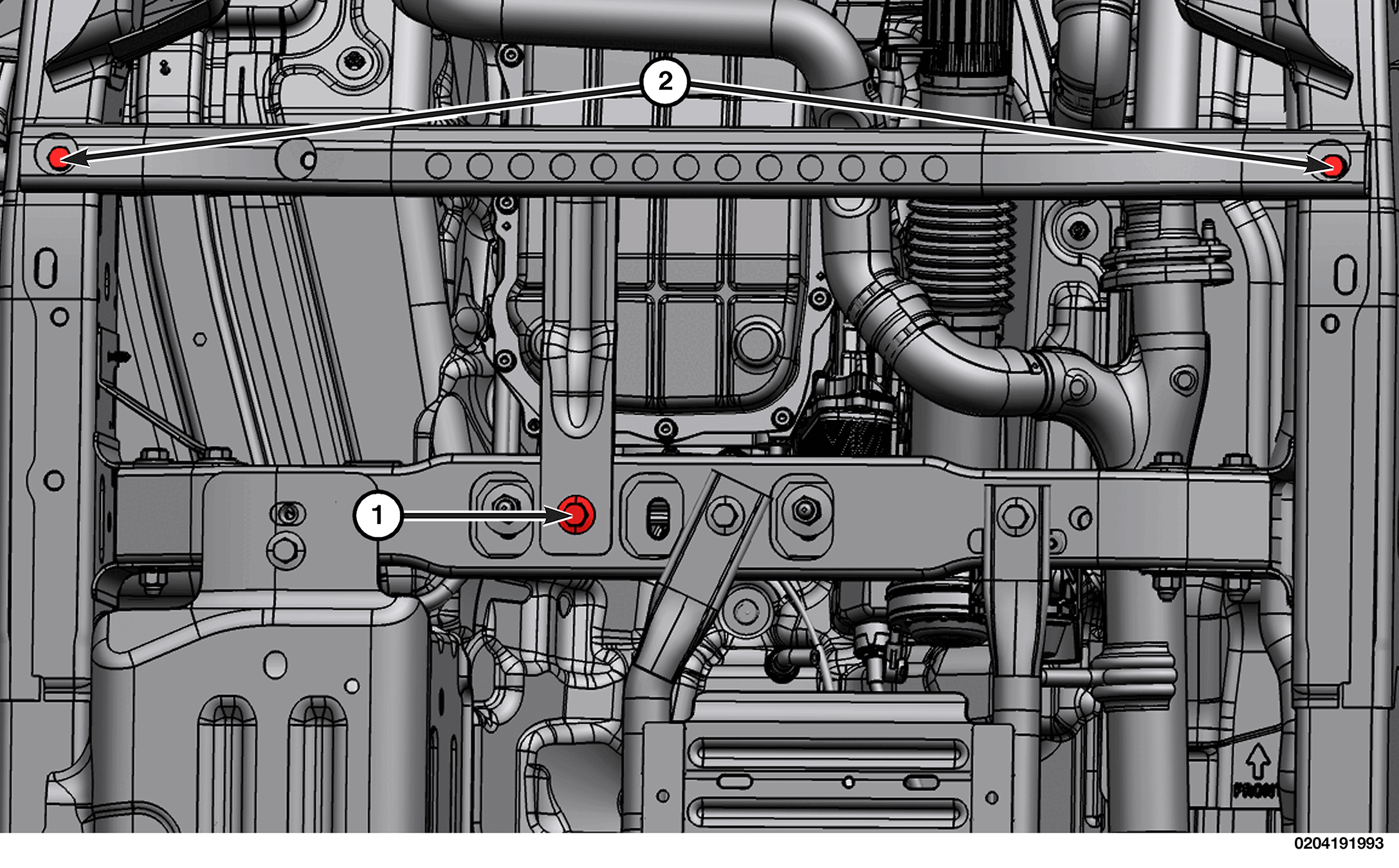

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Front Reinforcement Crossmember Bolt | 75 N.m (55 Ft. Lbs.) | - |
| 2 | Front Reinforcement Crossmember Frame Bolt | 75 N.m (55 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
