Fuel Level Sensor
Courtesy of CHRYSLER GROUP, LLC

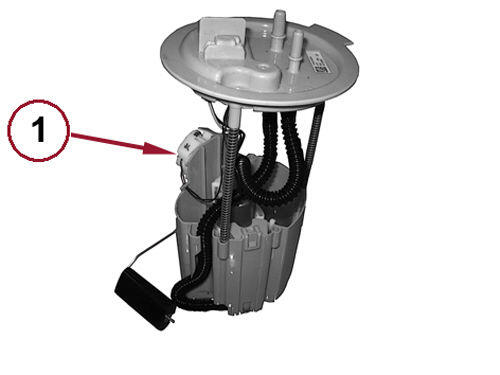

The fuel gauge sending unit (fuel level sensor) (1) is attached to the fuel pump module. The sending unit consists of a float, an arm, and a variable resistor.
