Module-Rear View Mirror Display C1 (Standard) Connector End View (D6625A)

Harness-Family: JUMPER_MIRROR_INTERIOR

Color: BLACK

Gender: FEMALE

Part Number: 6098-3910

Part Description: Not Available

Connector No: D6625A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

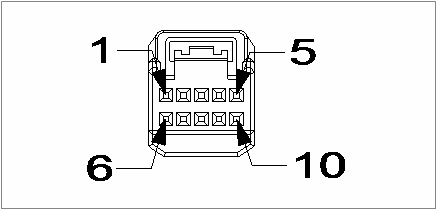

Fig 1: Module-Rear View Mirror Display C1 Connector End View (Standard)

Courtesy of CHRYSLER

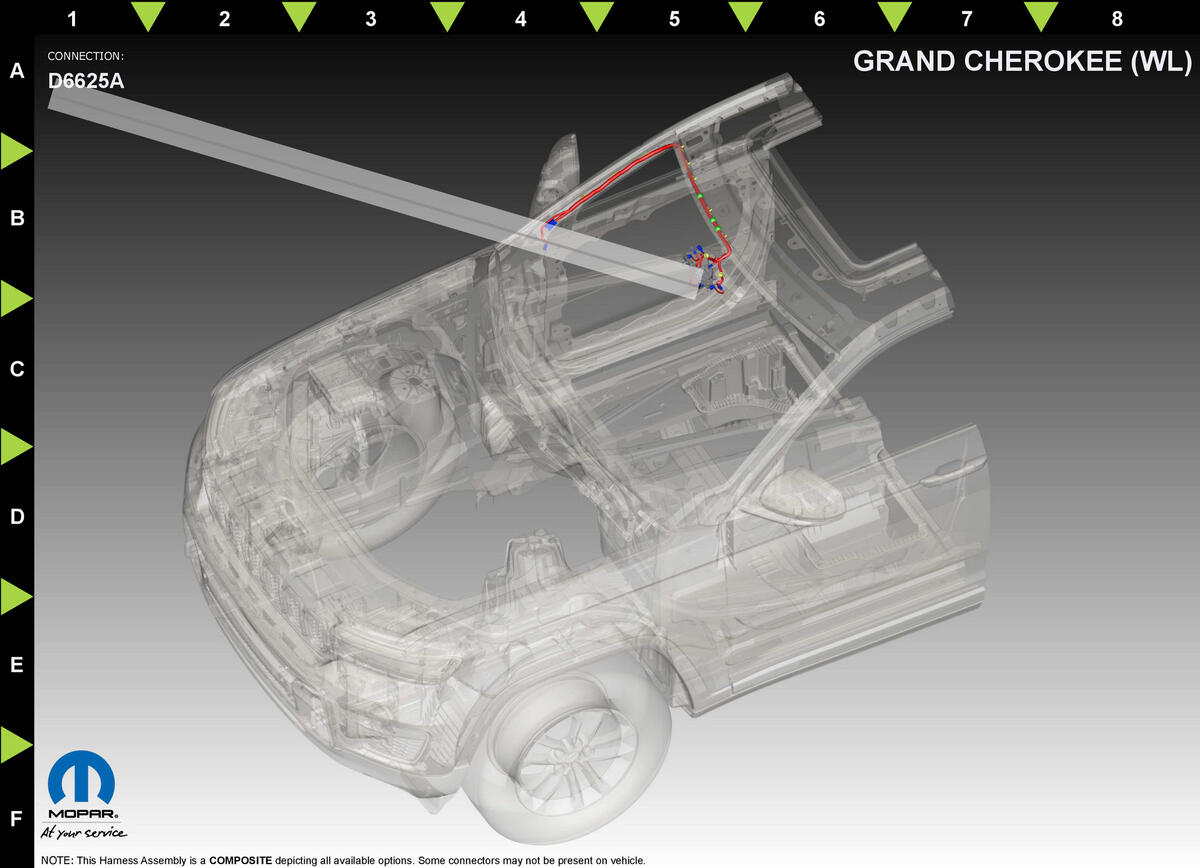

Fig 2: Module-Rear View Mirror Display C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D456

WH/VT

0.35

LIN BUS

N/A

Z914

0.35

GROUND

N/A

F987

PK/YE

0.35

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
