Removal And Installation: Installation

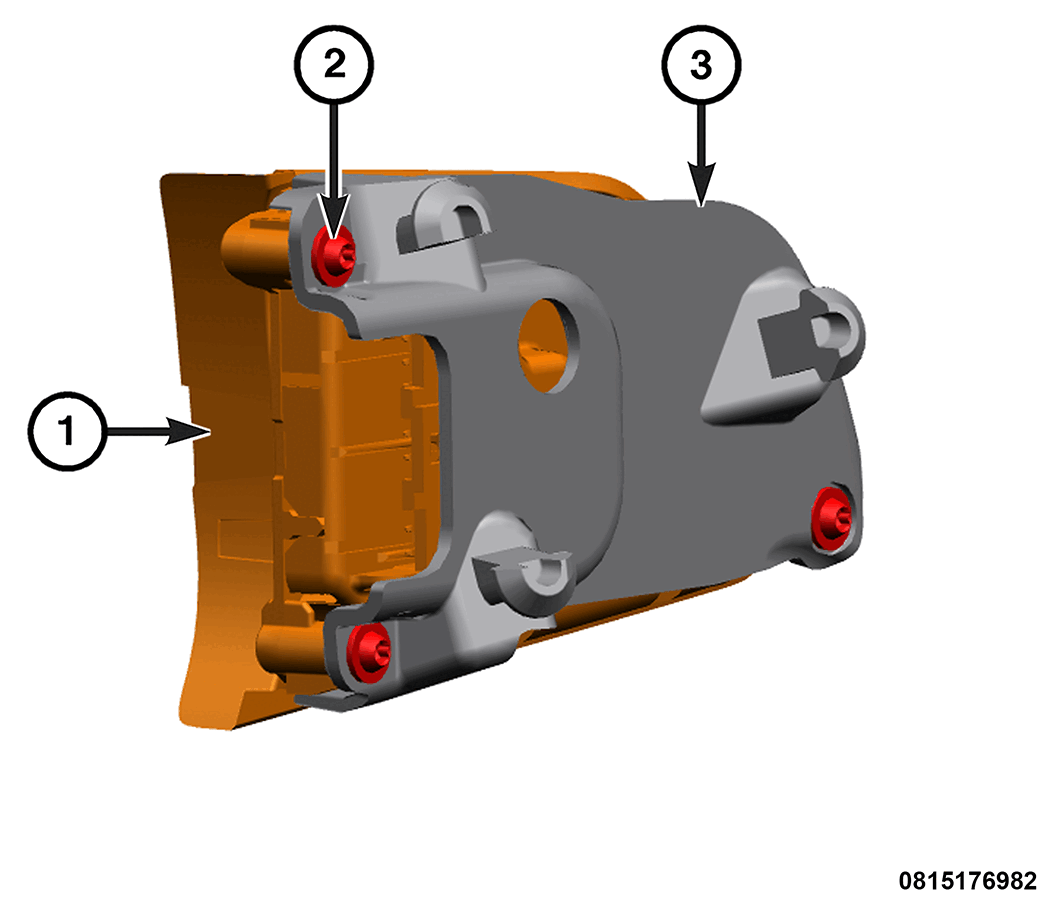

GC0202777Courtesy of CHRYSLER GROUP, LLC
  1. If removed, position the EVIC switches (1) to the bracket (3). Install the fasteners (2) and tighten securely.

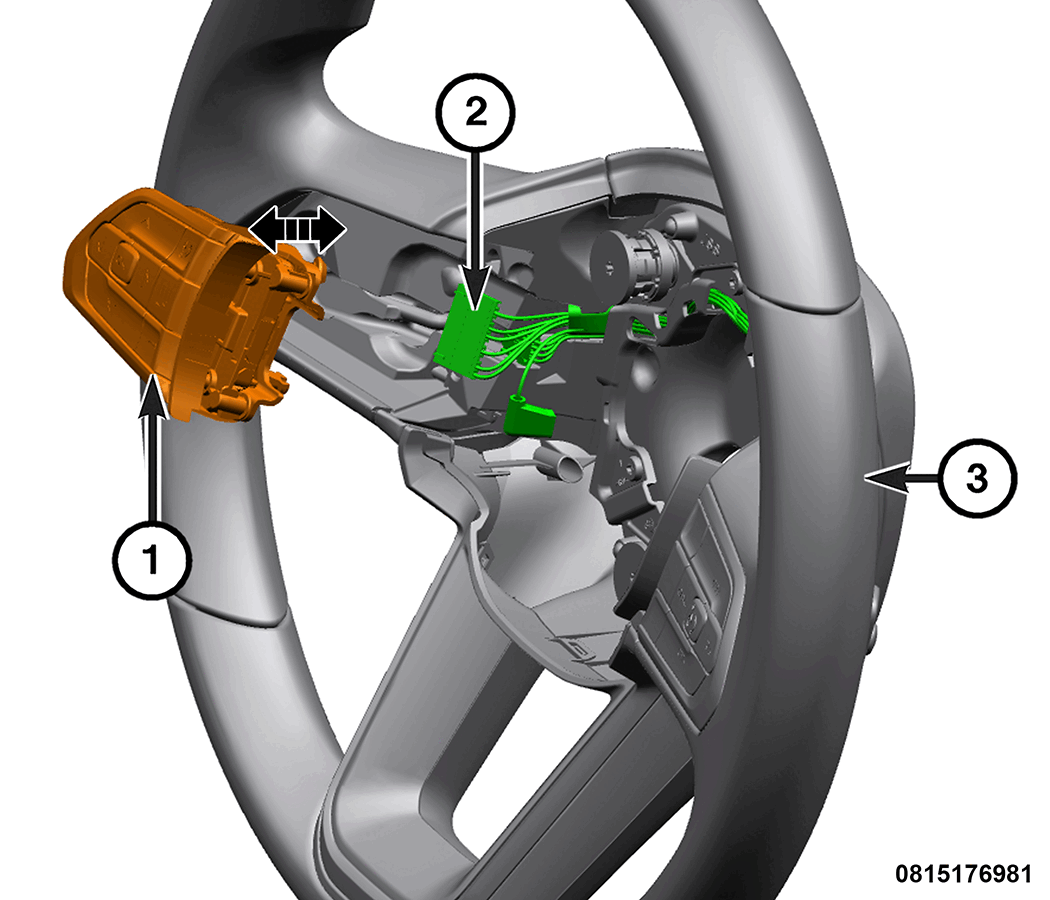

    GC0202758Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wire harness connector (2) to the EVIC switches (1).
  3. Install the EVIC switches (1) into the steering wheel (3), pressing firmly to verify the cleats are fully engage.
  4. Install the drivers air bag (Refer to RESTRAINTS/AIR BAG, DRIVER/REMOVAL AND INSTALLATION ).
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
