Ambient Light Module

REMOVAL

1. Remove the right rear quarter panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

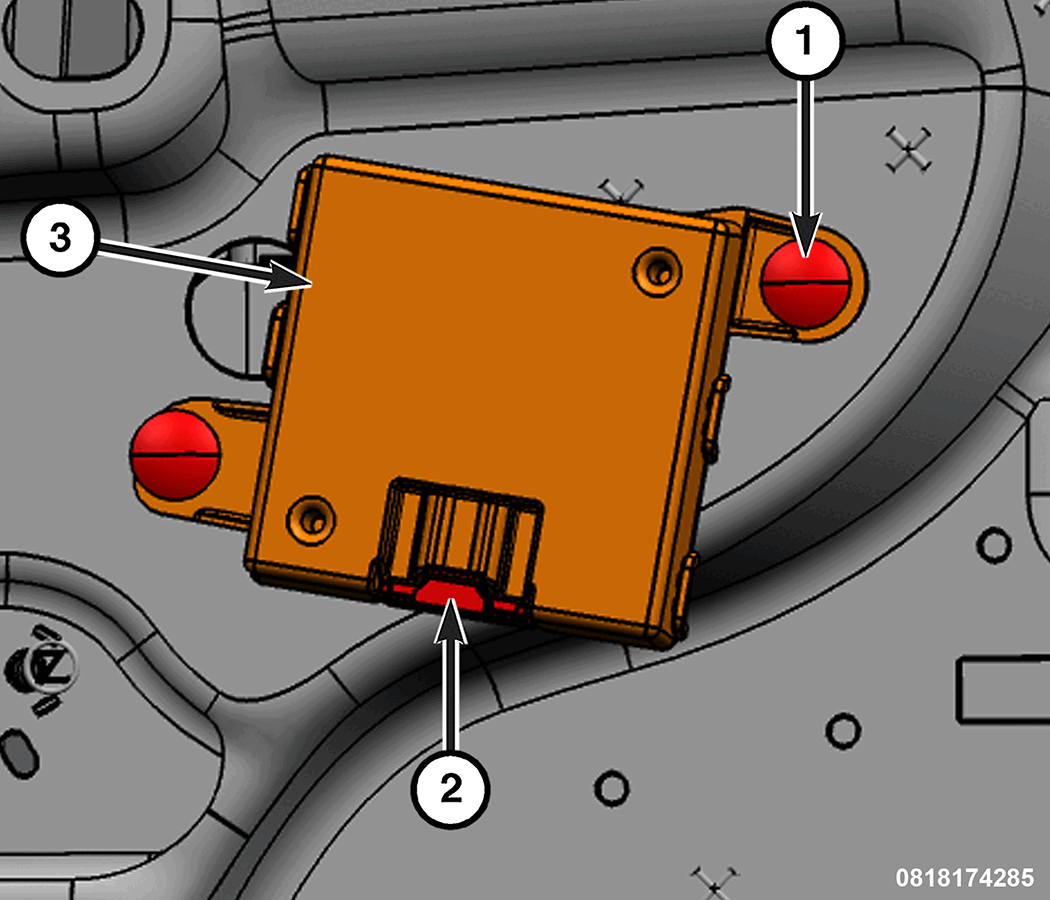

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Wire Harness Connector

   3 - Ambient Light Module (ALM)

2. Remove the fasteners securing the ALM to the vehicle.
3. Disconnect the wire harness connector from the ALM then remove the ALM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
