Removal And Installation: Notes

NOTE:

The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.

  1. Remove the Electric Park Brake (EPB) switch. Refer to SWITCH, ELECTRIC PARK BRAKE, REMOVAL AND INSTALLATION .

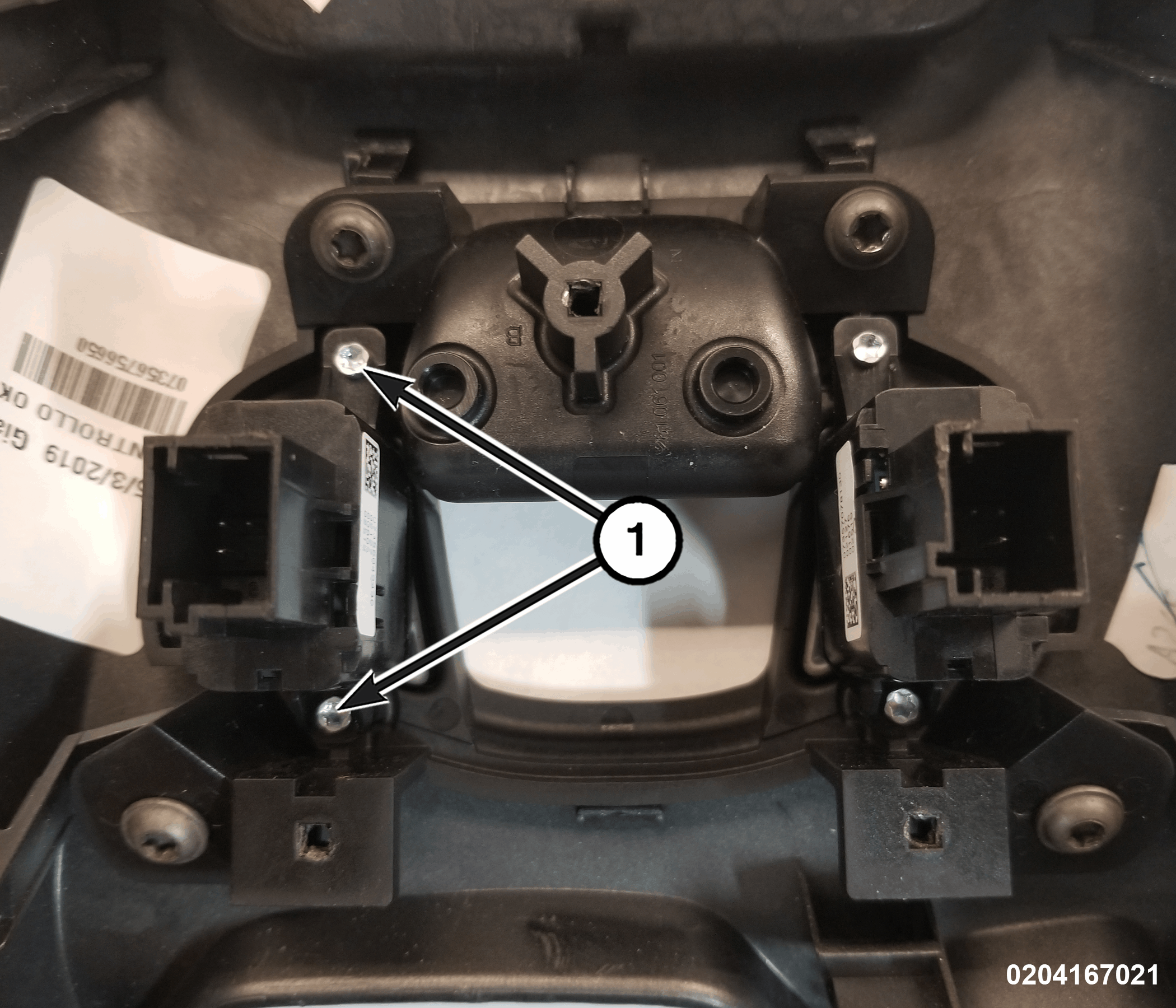

    GC0191657Courtesy of CHRYSLER GROUP, LLC
  2. Remove the ESC switch screws (1).
  3. Remove the ESC switch.
