Torque Converter: Description: Impeller

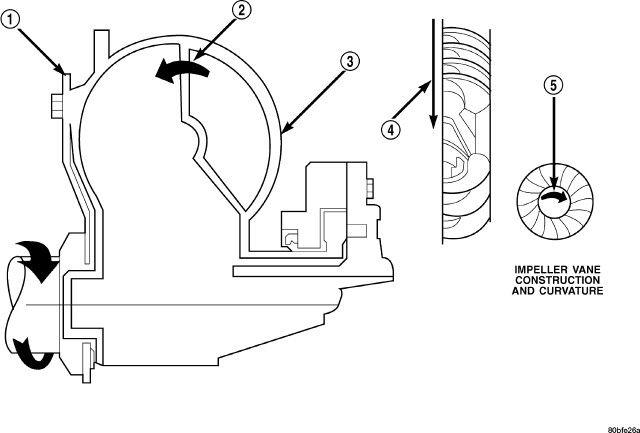

| 1 - ENGINE FLEXPLATE |
| 2 - OIL FLOW FROM IMPELLER SECTION INTO TURBINE SECTION |
| 3 - IMPELLER VANES AND COVER ARE INTEGRAL |
| 4 - ENGINE ROTATION |
| 5 - ENGINE ROTATION |
The impeller (3) is an integral part of the converter housing. The impeller consists of curved blades placed radially along the inside of the housing on the transmission side of the converter. As the converter housing is rotated by the engine, so is the impeller, because they are one and the same and are the driving members of the system.
