Pump, Transmission Oil: Description

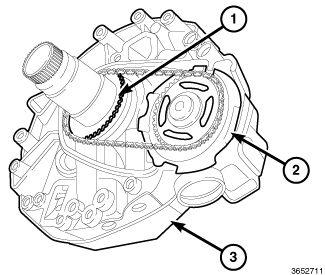

The transmission oil pump (2) is driven by a chain and sprocket (1). The oil pump is located just behind the torque converter, inside of the pump housing (3). The pump is a double-stroke vane pump. The pump has dual chambers, two inlet and two outlet ports. The pump provides necessary lubrication and cooling throughout all phases of transmission operation.
