Module, Adaptive Cruise Control (Acc): Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front fascia (Refer to REMOVAL ).

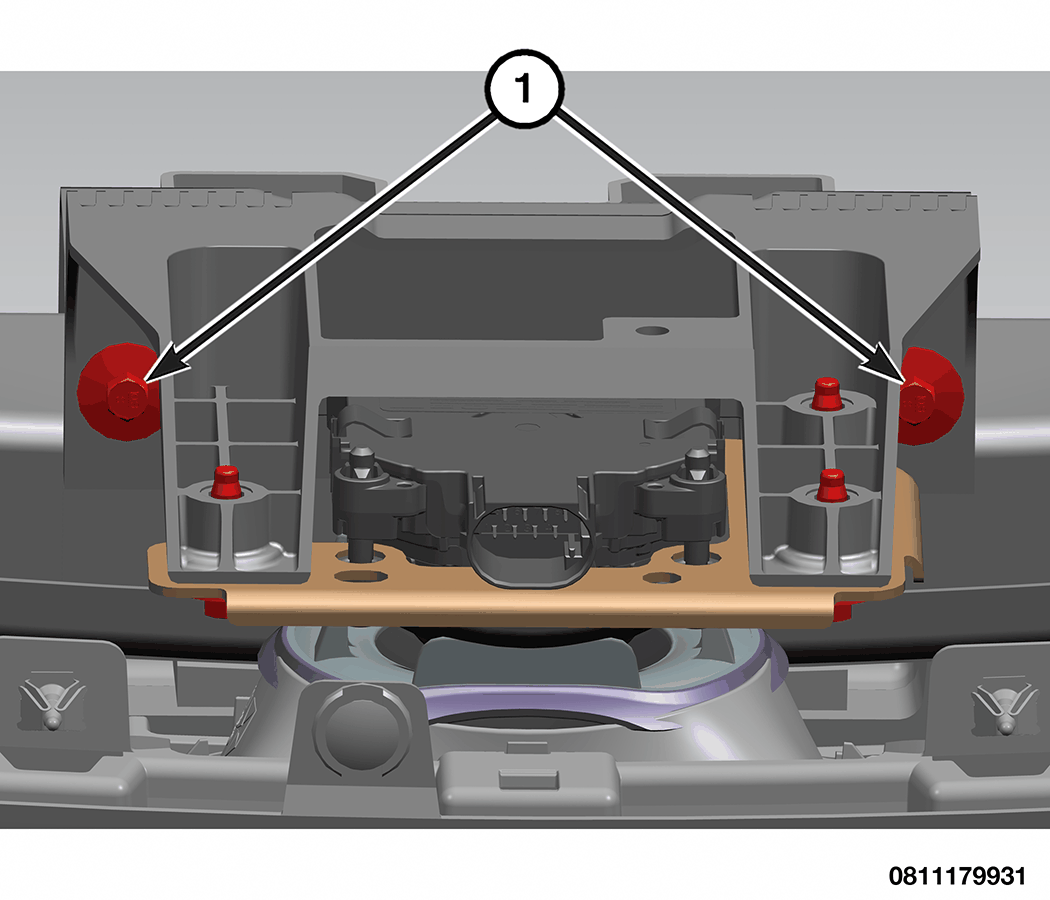

    GC0199686Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (1) mounting the radar bracket to the front fascia.

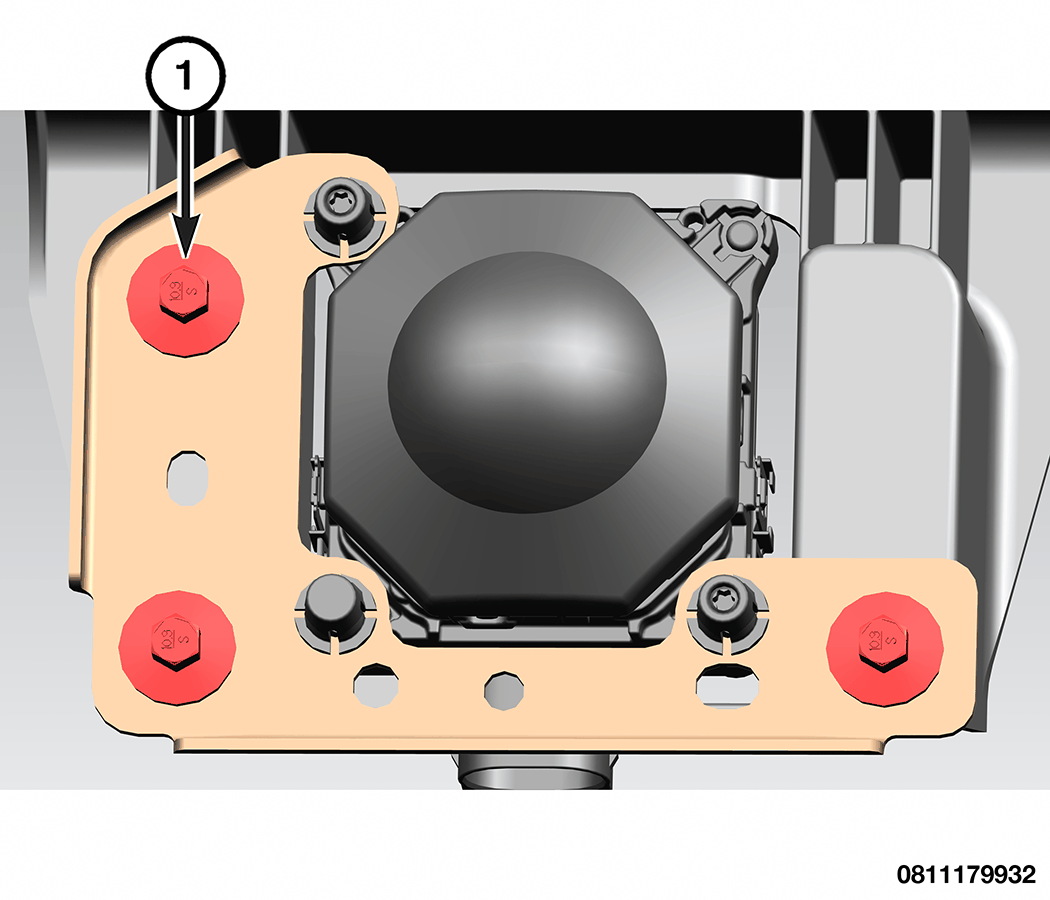

    GC0199687Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (1) mounting the ACC module to the ACC bezel.
