Removal And Installation
Courtesy of CHRYSLER GROUP, LLC
REMOVAL

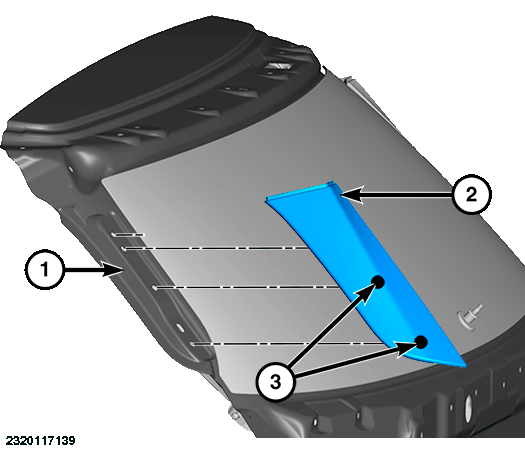

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the clips (3) and remove the side appliques (2).
Courtesy of CHRYSLER GROUP, LLC
INSTALLATION
Position the appliques (2) back into place on the liftgate (1) aligning the top pins and seating the clips (3) fully.
