Removal And Installation: Installation

GC0178966Courtesy of CHRYSLER GROUP, LLC
  1. Install the hitch assembly (1) onto the frame rails (2).

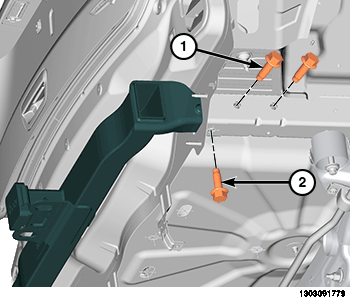

    GC0179145Courtesy of CHRYSLER GROUP, LLC
  2. Install the lower bolts (2) and the side bolts (1).
  3. Tighten the bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
