Removal And Installation: Installation

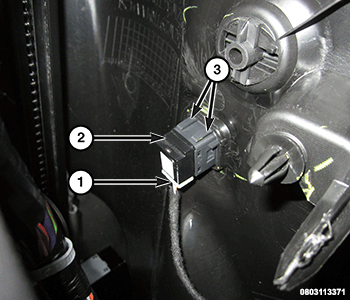

GC0178937Courtesy of CHRYSLER GROUP, LLC
  1. Seat the liftgate switch (2) into the quarter trim panel until all of the switch retaining clips (3) are engaged.
  2. Connect the power liftgate switch wiring harness connector (1).
  3. Install the left quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
