Oil Pump Drive Chain Guide

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing chain cover. Refer to REMOVAL  .
  2. Remove the cam chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .
  3. Remove the oil pump drive chain tensioner shoe. Refer to TENSIONER, ENGINE TIMING, REMOVAL .
  4. Remove the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .

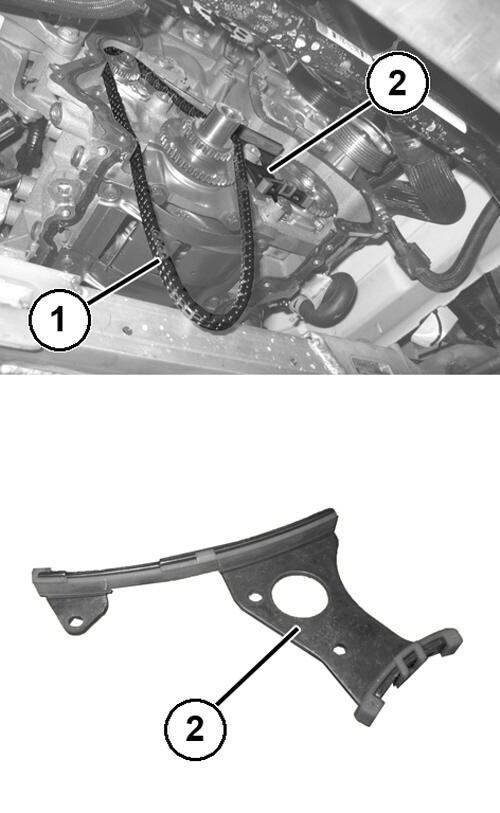

    GC0181023Courtesy of CHRYSLER GROUP, LLC
  5. Remove the oil pump drive chain guide (2).
