Sensor, Oil Temperature: Installation
WARNING: This page is about a different variant/trim than selected.

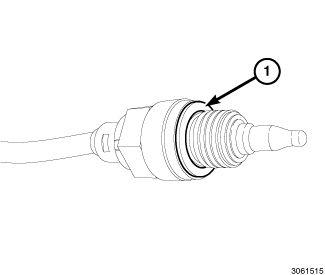

- The oil temperature sensor gasket (1) can be reused if not damaged. Lightly lubricate the sensor threads with clean engine oil.

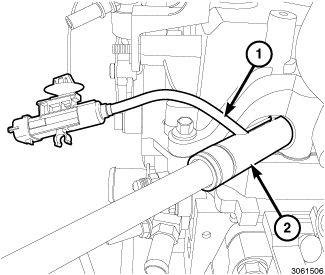

- Use an appropriate socket (2) and install the oil temperature sensor (1). Tighten the oil temperature sensor to the proper specifications.
Refer to TORQUE SPECIFICATIONS .
- Engage the oil temperature harness connector to the bracket (1).
- Connect and lock the oil temperature sensor harness connector (2).
- Install the clean air hose and engine cover. Refer to HOSE, CLEAN AIR, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Start engine and check for leaks.
