Muffler Heat Shield

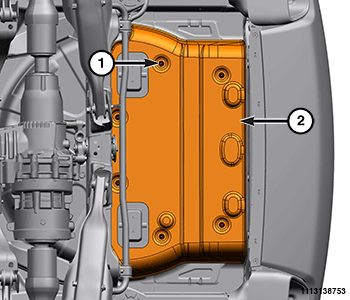

GC0186673Courtesy of CHRYSLER GROUP, LLC
  1. Install the muffler heat shield (2) and securely tighten the fasteners (1).

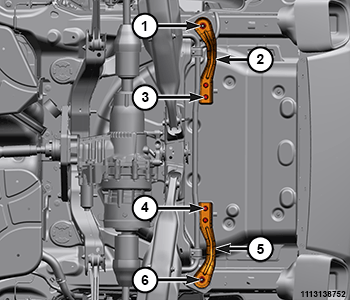

    GC0186727Courtesy of CHRYSLER GROUP, LLC
  2. Install the right bracket (5) the bolts (4), nut (6) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  3. Install the left bracket (2) the bolts (3), nut (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  4. Install the muffler. Refer to INSTALLATION  .
