Cover, Engine: Installation

GC0186523Courtesy of CHRYSLER GROUP, LLC
  1. Lubricate the rubber mount sockets (1) on the engine cover with Mopar® Rubber Bushing Installation Lube.

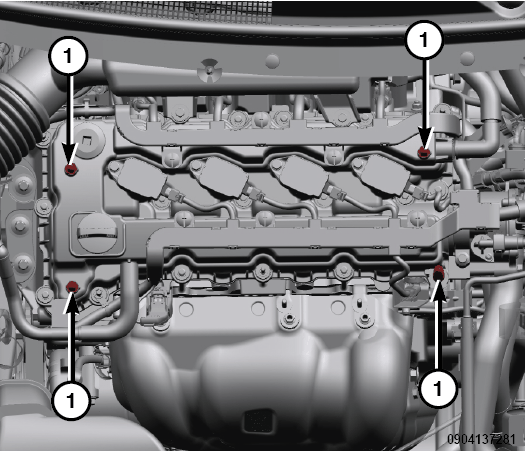

    GC0186411Courtesy of CHRYSLER GROUP, LLC
  2. Align the rubber mount sockets of the engine cover to the ball studs (1) on the cylinder head cover and press firmly downwards.
